Product Description
Reference standards
GB/T 18380.11-2008, GB/T 18380.12-2008, GB/T 18380.13-2008, GB/T 18380.21-2022, GB/T 18380.22-2022, IEC 60332-1-2:2004, IEC 60332-1-1:2004, IEC 60332-1-3:2004, IEC 60332-2-1:2004, IEC 60332-2-2:2004, EN50265-1, EN50265-2-1, GB/T 5169.14-2007 and IEC 60695-11-2:2003.
Technical Description

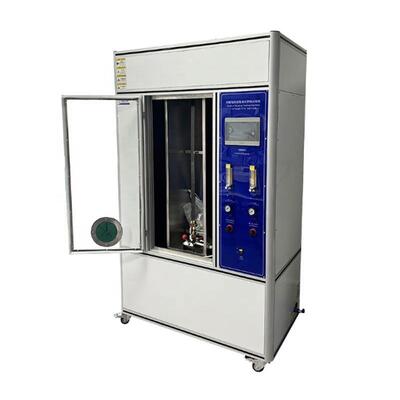

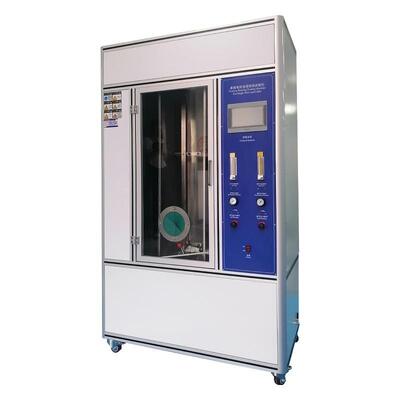

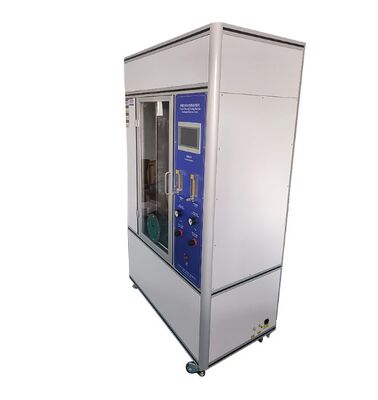

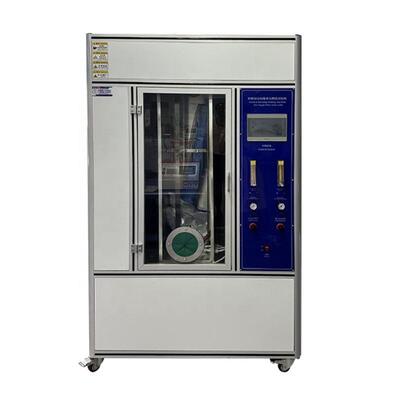

The vertical combustion test machine for single wires and cables is suitable for testing the vertical combustion non-spreading performance of single plastic wires, control wires, cross-linked, elevator, marine, and mine cables, etc. It can also be used for vertical combustion tests of high self-extinguishing low-smoke halogen-free flame-retardant polyolefin insulation materials and 105℃ low-smoke halogen-free flame-retardant olefin irradiated insulation materials. This device is a testing equipment for the resistance to combustion of single wires and cables. It has the advantages of high accuracy, automatic timing, automatic termination of the test, and simple operation.
Equipment Structure
1. This machine consists of two parts: the combustion chamber and the ventilation cabinet.
2. Dimensions of the combustion chamber: L300 * W450 * H1200
3. Overall cabinet height: L110 * W630 * H1900
4. Cabinet material: The inner cabinet is made of stainless steel, and the ventilation cabinet is painted with electrostatic spray. The appearance is elegant and beautiful.
