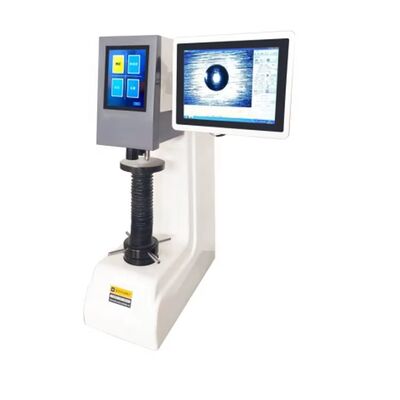

ISO 6506 ASTM E10 Visual Brinell Hardness Tester 8 Inch Touch Screen ARM Processor Optical Brinell Hardness Test Machine

VHBS-3000AET Visual Brinell hardness tester

VHBS-3000AET Visual Brinell hardness tester

Abstract:

VHBS-3000AET visual Brinell hardness tester, using 8 inch touch screen and high-speed ARM processor, intuitive display, friendly man-machine interaction, easy to operate; Fast operation speed, database storage, automatic data correction, and provide data broken line report.

Product Introduction:

1. An industrial tablet computer is installed on the side of the body, with an industrial camera built in. The CCD image software is used to process the data and images directly, and the manual and automatic measurement of images is completed, which is convenient and fast.

2, the body of the use of high quality cast iron casting molding, with the car paint treatment process, the shape is round and beautiful;

3, the configuration of automatic turret function, the indenter and the lens automatically switch, more convenient to use;

4, can set the maximum and minimum hardness value, when the test value exceeds the set range, alarm sound;

5, with software hardness value correction function, can directly modify the hardness value in a certain range;

6, with the database function, the test data automatically grouped to save, each group can save 10 data, can save more than 2000 data;

7, with hardness curve display function, intuitive display of hardness changes;

8, can automatically carry out the full hardness scale unit conversion;

9, electronic closed-loop control applied test force, fully realize the automatic operation of loading, retaining, unloading;

10, equipped with high-definition optical dual objective lens, can measure the indentation of different diameters from 31.25-3000kgf standard test force;

11, and can output data through RS232, USB (optional) interface;

12, the precision conforms to GB/T231.2-2018, ISO6506-2 and ASTM E10 standard.

Scope of application:

1, determine the Brinell hardness of ferrous metals, non-ferrous metals and bearing alloy materials;

2, hard cast steel, aluminum alloy, copper alloy, malleable casting, mild steel, tempered steel, annealing steel, bearing steel, etc.

Main technical parameters

Standard configuration of accessories:
