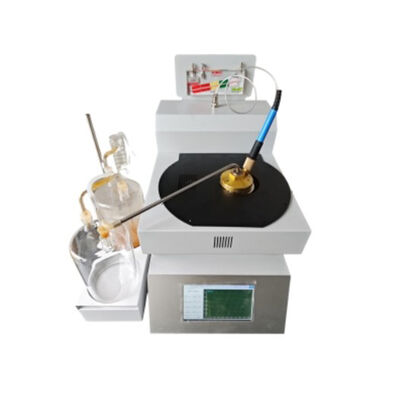

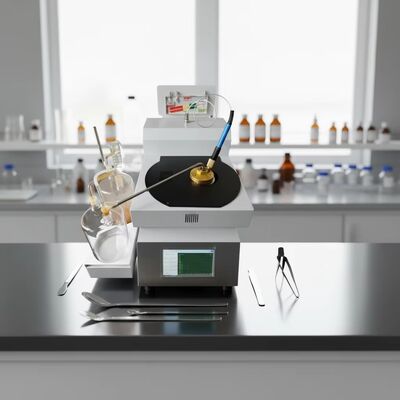

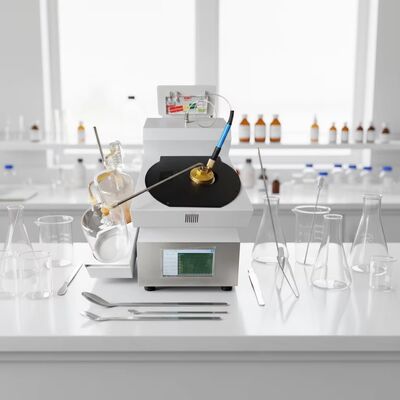

ASTM D5800 Touchscreen Lubricant Evaporation Loss Tester Noack Method Laboratory Lubricating Oil Evaporation Loss Analyzer

ASTM D5800 Touchscreen Lubricant Evaporation Loss Tester Noack Method Laboratory Lubricating Oil Evaporation Loss Analyzer

Product Introduction

The lubricant evaporation loss tester is designed and manufactured in accordance with the requirements of the Chinese petrochemical industry standard SH/T0059-2010 "Test Method for Evaporation Loss of Lubricants (Noack Method)" and the requirements of ASTM D5800 B method. It does not require a special instrument made of wood alloy. All technical indicators and test results have met the requirements stipulated in the ASTM D5800 B method standard. It is developed for the research, production and application of lubricants in the industry, and is an instrument used for measuring the evaporation loss of lubricants and lubricant base oils. It can be widely applied in the departments of power, petroleum, chemical industry, commodity inspection and research.

Functional Features

1. Touchscreen operation, LCD display, quick and convenient

2. Replace Method A. The testing process no longer requires the use of wood alloy, thus avoiding environmental contamination and personnel injuries.

3. It is composed of imported temperature control instrument, imported precision pressure difference and vacuum suction system, stopwatch, metal bath, inclined tube pressure difference meter, residual oil bottle, buffer bottle and thermometer, etc.

4. The control method adopts an embedded operating system and is controlled by a high-speed microprocessor, which is stable and reliable.

5. Vacuum device: Comprising a vacuum pump and an air filter for the pressure gauge.

6. The instrument continuously records the temperature and pressure values at every moment.

7. Built-in diagnostic program and various alarms, temperature calibration and pressure calibration function.

ASTM D5800 Touchscreen Lubricant Evaporation Loss Tester Noack Method Laboratory Lubricating Oil Evaporation Loss Analyzer

Technical Specification
