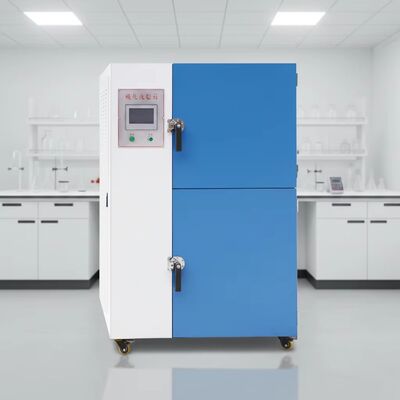

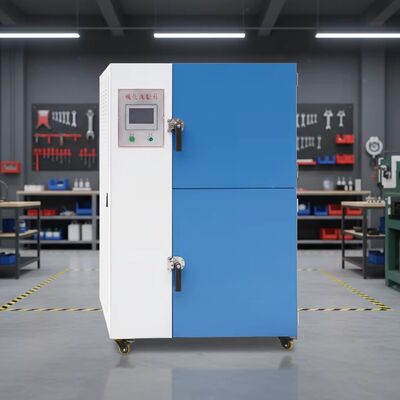

Concrete Carbonation Test Chamber Laboratory CO2 Carbonation Chamber Automatic Concrete Carbonation Test Machine

Concrete Carbonation Test Chamber Laboratory CO2 Carbonation Chamber Automatic Concrete Carbonation Test Machine

Product Introduction

Concrete carbonation test chamber is a special equipment for concrete carbonation test. The product meets the requirements of GB/T50082-2024 "Standard for Long-term Performance and Durability Test Methods of Ordinary Concrete" for carbonation test equipment. This machine uses an imported carbon dioxide analyzer: This analyzer adopts the infrared detection principle and combines the domestic advanced intelligent touch screen instrument. It has the characteristics of high accuracy, long life and simple operation: The temperature and humidity sensor is composed of the domestic advanced integrated sensing module plus intelligent instrument. This product has the characteristics of high control accuracy, simple operation, intuitive digital display of temperature, humidity and concentration in the box, and timed recording.

Working Principle

The concrete carbonation test chamber is a sealed box. The test specimen is placed on the partition inside the box, and then the digital control instrument is used to control the set temperature, relative humidity, and carbon dioxide concentration to ensure constant temperature, humidity, and carbon dioxide concentration in the box.

Main structure

The carbonation test chamber is mainly composed of a box, a temperature and humidity control system, and a carbon dioxide concentration control system. The outer box plate of the box is made of cold-rolled steel plate, the inner liner is made of high-quality stainless steel plate, and the partition is made of stainless steel profiles, which has good moisture retention, sealing, and corrosion resistance.

Implementation standards

1. GB/T50082-2024 "Standard for test methods of long-term performance and durability of ordinary concrete"

2. JG/T247-2009 "Concrete carbonization test chamber"

3. DL/T5150-2001\SL352-2006 "Test procedures for hydraulic concrete"

4. JTJ270-98 "Test procedures for concrete in water transport engineering"

Concrete Carbonation Test Chamber Laboratory CO2 Carbonation Chamber Automatic Concrete Carbonation Test Machine

Technical Specification
