ASTM D6195 Adhesive Tape Loop Tack Tester/Adhesive Tape Testing Machine/Tape Stickiness Testing Equipment

Certification
China DONGGUAN LONROY EQUIPMENT CO LTD certification
China DONGGUAN LONROY EQUIPMENT CO LTD certification
I'm Online Chat Now

ASTM D6195 Adhesive Tape Loop Tack Tester/Adhesive Tape Testing Machine/Tape Stickiness Testing Equipment

ASTM D6195 Adhesive Tape  Loop Tack Tester/Adhesive Tape Testing Machine/Tape Stickiness Testing Equipment
ASTM D6195 Adhesive Tape  Loop Tack Tester/Adhesive Tape Testing Machine/Tape Stickiness Testing Equipment ASTM D6195 Adhesive Tape  Loop Tack Tester/Adhesive Tape Testing Machine/Tape Stickiness Testing Equipment

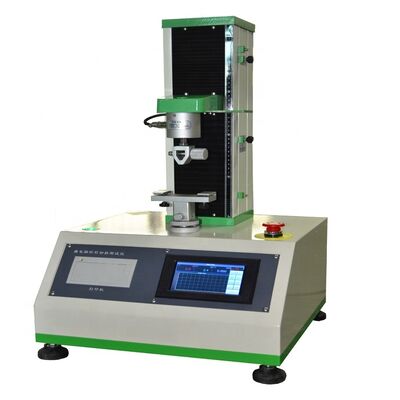

Large Image :  ASTM D6195 Adhesive Tape Loop Tack Tester/Adhesive Tape Testing Machine/Tape Stickiness Testing Equipment

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Certification: CE
Model Number: PT-507
Payment & Shipping Terms:
Minimum Order Quantity: 1

ASTM D6195 Adhesive Tape Loop Tack Tester/Adhesive Tape Testing Machine/Tape Stickiness Testing Equipment

Description
Customized Support: OEM, ODM, OBM Power: Electronic
Warranty: 1year Standard: ASTM D6195
Load Range: 0-200N (optional Configuration: 10N 20N 50N 100N 200N 500N) Resolution: 0.01n
Loading Speed: 300mm/min (0.001 ~ 500mm/min Adjustable)
Highlight:

ASTM D6195 adhesive tape tester

,

loop tack tester for adhesive tape

,

tape stickiness testing equipment

ASTM D6195 Adhesive Tape  Loop Tack Tester/Adhesive tape testing machine/Tape stickiness testing equipment

Product Description:

Compact and exquisite structure, imported sensors and motors, top imported core accessories.Can allow users to quickly and effectively determine adhesive tape, label and other products adhesion and adhesion.Mainly used for various adhesive tapes, adhesives and other products of the initial adhesion.The products meet international standards such as FINAT Test Method No. 9: Loop Tack Measurement, TLMI, ASTM, etc., suitable for research institutions, adhesive import and export enterprises, inspection and quarantine institutions, etc.

Test principle:

After the annular sample is fully contacted with the standard float glass test plate at a constant speed of 300mm/min, the instrument automatically separates the annular sample and the test plate in reverse at a constant speed of 300mm/min, and the maximum force generated is the initial adhesion of the ring of the tested sample.



ASTM D6195 Adhesive Tape  Loop Tack Tester/Adhesive tape testing machine/Tape stickiness testing equipment

Product Features:

1. The data collection system is a relatively advanced measuring instrument with the characteristics of both precision and ease of use.

2. Adopting microcomputer control technology, different from the traditional bevel ball rolling method, with high precision and easy operation.

3. Using imported sensors, the accuracy can reach +0.1% of the weight sensor standard.

4. Advanced imported motor and lead screw driving technology, smooth operation, more accurate displacement measurement.

5. High-definition LIQUID crystal display, clear operation

6. Connect micro printer: experiment date and test result can be realized, and print directly in time!

7. With the function of maintaining test force value, it can store up to 20 test data, making it more convenient to view experimental results.

8. Stepless speed regulation can be set with arbitrary precision in the range of 1-500

9. Curve analysis, curve display.



ASTM D6195 Adhesive Tape  Loop Tack Tester/Adhesive tape testing machine/Tape stickiness testing equipment

Technical parameters:

Load range

 0-200N (optional configuration: 10N 20N 50N 100N 200N 500N)

Precision

Level 1

Resolution

0.01n

Loading speed

300mm/min (0.001 ~ 500mm/min adjustable)

Size of test plate

30.00mm×25.00mm×3mm(length, width and thickness)

Sample size

18.00mm×25.00mm

Power unit switch

KGF, GF, N, kN, LBF

Power rate

40W

Power source

220V 50Hz

External dimension

300mm (B) ×380mm (L) ×410mm (H)

Net weight

20Kg

National standard: ASTM, TLMI, FINAT

Standard configuration of ring primer: main machine, power cord, fixture, test board 2 pieces
