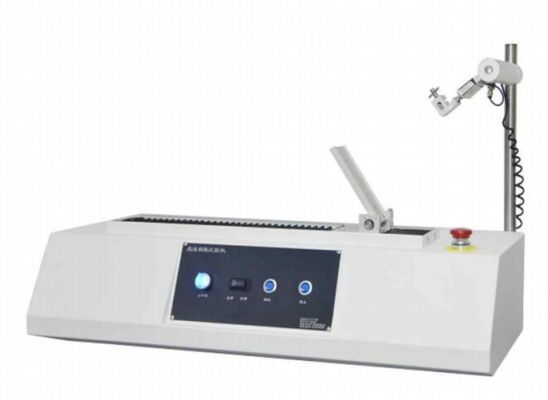

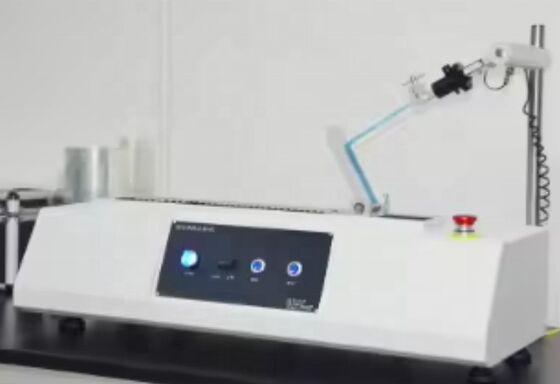

The instrument is the product of the connection of electronic skills and mechanical transmission. It adopts electromechanical integration design and is mainly composed of force sensor, transmitter, microprocessor, load driving mechanism, computer and color inkjet printer.
It can perform many functional experiments on various materials, such as stripping, stretching, compression, bending, shearing, etc., and has the characteristics of wide measuring range, high precision and fast response. The experimental data can be displayed, recorded and printed in time.
Application
It is suitable for the stripping performance test of adhesive tape, protective film, label, release film (paper) and other products to detect the bond strength and stripping resistance of adhesive materials. It can do 180 degree stripping, 90 degree stripping and shear strength tests.
The speed can range from slow 100mm/min to fast 15m/min. The Angle can be 90° to 180°
The speed can range from slow 100mm/min to fast 30m/min. The Angle can be 90° to 180°
Multiple Angle test
Multiple Angle test
Return speed
10m/min
Force resolution
0.001g
displacement resolution
0.001mm
effective travel
Including fixture 500mm
control mode
computer control
dimension
W 900mm×D 430mm×H 600mm
Power supply/Power
220VAC±10%50Hz /900W
sample rate
The point frequency can reach 1000 times/second (with multiple frequency bands to choose from)
weight
About40kg
Instrument characteristics
Well-known brand force sensing system, providing better than 0.5 force accuracy, better repeatability, multi-range selection;
The well-known brand step operation system, with precision ball screw, provides better than 0.5 speed accuracy, stepless speed regulation, stable operation; Limit protection, overload protection, automatic return and other intelligent design to ensure safe operation;
Advanced and reasonable structure design, with reliable automatic management and control functions, can adapt to long-term, stable, safe and reliable testing needs;
Meet GB, ISO, ASTM test standards, test methods can be selected; Group test data comparison analysis, with multi-unit conversion function.
