ASTM D642 Carton Compression Testing Machine TAPPI T804 JIS 20212 Cardboard Compression Test Equipment Film Testing Film

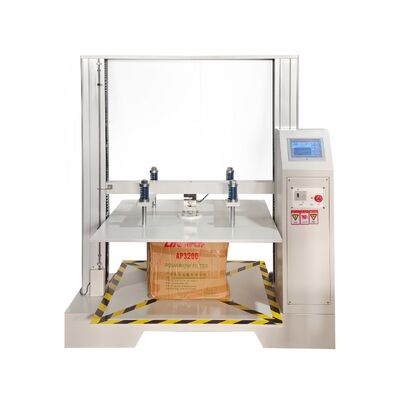

Large Image : ASTM D642 Carton Compression Testing Machine TAPPI T804 JIS 20212 Cardboard Compression Test Equipment Film Testing Film

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ASTM D642 Carton Compression Testing Machine TAPPI T804 JIS 20212 Cardboard Compression Test Equipment Film Testing Film

Description

Type:	Testing Machine	Accuracy:	---
Application:	Auto Testing, Laboratory Testing, Lab Testing, Paper Testing	Customized Support:	OEM, ODM, OBM
Power:	---	Protection Class:	Ip56
Voltage:	220 V, 380 V	Warranty:	1 Year
Logo/graphic Design:	Hot Stamping	Structure:	Servo Motor, Ordinary Screw Rod
Power:	1U,220v/50Hz	Overall Dimensions:	(LWH) 6506001750mm
Weight - Main Unit:	Approximately 300kg
Highlight:	ASTM D642 carton compression tester , TAPPI T804 cardboard testing machine , JIS 20212 film compression equipment

ASTM D642 Carton Compression Testing Machine TAPPI T804 JIS 20212 Cardboard Compression Test Equipment

Product Description

Introduction

The microcomputer system cardboard compression testing machine is suitable for various packaging bodies and cardboard boxes' compression and holding pressure tests. The test results can be used as an important reference for the height of finished packaging boxes in factories or as an important basis for designing packaging boxes. It can perform tests according to national or international standards such as GB, ISO, ASTM, BS, DIN, JIS, etc., and is an ideal testing and research equipment for various factories, technical supervision departments, commodity inspection institutions, research institutes, and colleges and universities.

Applicable standards

TAPPI-T804,JIS-20212,GB4857.3.4,ASTM-D642

Product Features

The machine structure is equipped with sealed plates that have undergone advanced paint treatment. Inside, there are high-precision, low-resistance, and gap-free double ball screw mechanisms and guide columns, which enhance the load efficiency and structural rigidity.
The control system uses an AC servo with a high response frequency to ensure high efficiency of the transmission system, smooth transmission, low noise, and the speed accuracy can be controlled within ±0.2%.

ASTM D642 Carton Compression Testing Machine TAPPI T804 JIS 20212 Cardboard Compression Test Equipment

Technical Specification

Allowable test piece weight	1T
Decomposition degree	1/10,000
Accuracy	≤0.5%
Force unit	KG, LB, N can be switched
Report items	Serial number, peak value, average value, set holding pressure value, can be memorized
Safety devices	Overload protection, overpressure protection, limit protection device
Structure	Servo motor, ordinary screw rod
Compression space	800800800mm
Compression speed standard	10±3mm/min
Overall dimensions	(L×W×H) 6506001750mm
Weight - main unit	Approximately 300kg
Power supply	1U, 220v/50Hz
