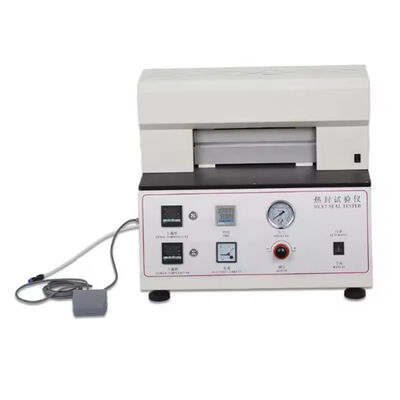

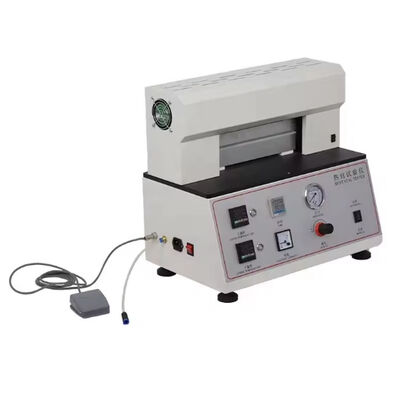

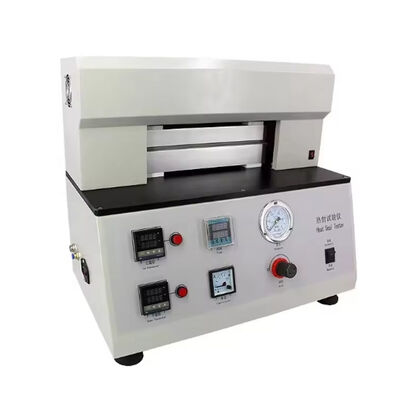

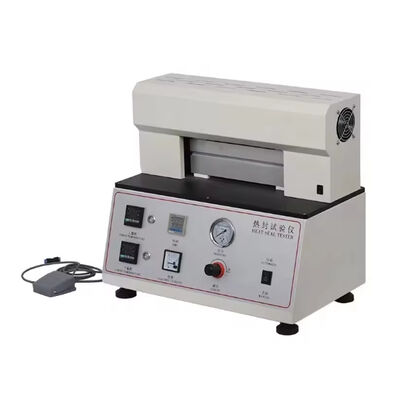

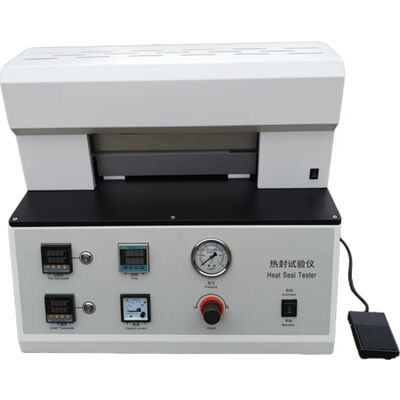

ASTM F2029 Heat Seal Testing Machine Thermal Seal Tester Plastic Packaging Film Heat Sealer Lab Heating Sealer LR-5058-B

Large Image : ASTM F2029 Heat Seal Testing Machine Thermal Seal Tester Plastic Packaging Film Heat Sealer Lab Heating Sealer LR-5058-B

Product Details:

Place of Origin:	Hunan, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ASTM F2029 Heat Seal Testing Machine Thermal Seal Tester Plastic Packaging Film Heat Sealer Lab Heating Sealer LR-5058-B

Description

Type:	Testing Machine	Accuracy:	---
Application:	Laboratory Testing	Customized Support:	OEM, ODM, OBM
Power:	---, Electronic	Protection Class:	IP57
Voltage:	220 V	Warranty:	1 Year
Logo/graphic Design:	Hot Stamping
Highlight:	ASTM F2029 heat seal tester , plastic packaging film sealer , lab heating sealer machine

Product Description

ASTM F2029 LR-5058-B Heat seal testing machine Thermal Seal Tester Plastic Packaging Film Heat Sealer Laboratory Heating Sealer

Product Introduction

The heat sealing tester is suitable for testing the heat sealing temperature, heat sealing time and heat sealing pressure of plastic film, flexible packaging composite film and other materials. Ruiwen instrument research and development of this instrument is food enterprises, daily chemical products enterprises, packaging and raw material production enterprises laboratory instruments.

Test standards

Heat sealing performance tester in line with a number of national and national standards: QB/T2358, ASTM F2029, YBB00122003.

Test principle

The heat sealing tester adopts the hot pressing sealing method, and the sample to be sealed is placed between the upper and lower heat heads, and the sealing of the sample is completed under the preset temperature, pressure and time. After repeated tests, it provides guidance for users to find the heat sealing parameters.

ASTM F2029 LR-5058-B Heat seal testing machine Thermal Seal Tester Plastic Packaging Film Heat Sealer Laboratory Heating Sealer

Product features 1. microcomputer control, large screen LCD display, PVC operation panel, menu interface, convenient for users to operate quickly. 2. The aluminum potting type heat head ensures the uniformity of heating of the heat cover, and the heat sealing temperature of different positions of the sample is consistent. 3.data compensation temperature control system, make the upper and lower head temperature rise quickly, control more accurate. 4. The lower double cylinder synchronous circuit further ensures the uniform pressure on the hot surface. 5. The cylinder adopts the pressure circulation system to automatically fill the pressure to ensure the accuracy of the test pressure. 6. the upper and lower heat head independent temperature control, long heat cover design, to meet different customer needs. 7. manual and foot switch dual start mode and anti-safety design, convenient for user operation.

ASTM F2029 LR-5058-B Heat seal testing machine Thermal Seal Tester Plastic Packaging Film Heat Sealer Laboratory Heating Sealer

Specification

ASTM F2029 LR-5058-B Heat seal testing machine Thermal Seal Tester Plastic Packaging Film Heat Sealer Laboratory Heating Sealer

Technical Parameters

heat sealing temperature	room temperature ~ 300℃
temperature accuracy	±0.2℃
Heat sealing time	0.1~999.9s
heat sealing pressure	0.05MPa ~ 0.7MPa
hot cover	330mm× 10mm (customizable)
heating form	heating form
air source pressure	0.05MPa ~ 0.7MPa (air source user supplied)
air source interface	Ф6mm polyurethane pipe
Overall size	536mm×335mm×413mm (L W H)
power supply	AC220V/50Hz
Net weight	40kg

Company Profile

ASTM F2029 LR-5058-B Heat seal testing machine Heat seal tester Plastic Packaging Film Heat Sealer Laboratory Heating Sealer
