JIS L1096 ASTM D1518 Warmth Retaining and Thermal Resistance Tester Warmth Retaining Efficiency Test Machine

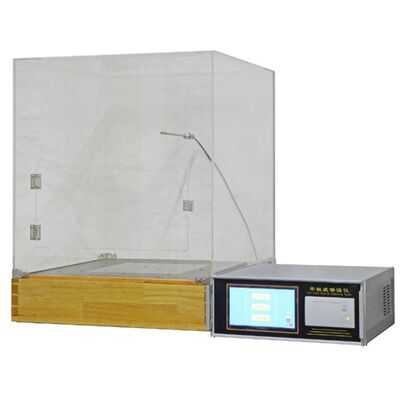

Large Image : JIS L1096 ASTM D1518 Warmth Retaining and Thermal Resistance Tester Warmth Retaining Efficiency Test Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

JIS L1096 ASTM D1518 Warmth Retaining and Thermal Resistance Tester Warmth Retaining Efficiency Test Machine

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Auto Testing
Customized Support:	OEM, ODM, OBM	Power:	--
Protection Class:	Ip56	Voltage:	220 V
Warranty:	1 Year	Temperature Range:	20 - 50℃
Power Supply:	220V, 50Hz Or 110V, 60Hz	Machine Weight:	30 Kg
Measurement Control Box Dimensions:	300 * 340 * 150 Mm (W * D * H)
Highlight:	thermal resistance tester machine , warmth retaining efficiency tester , ASTM D1518 lab test machine

JIS L1096 ASTM D1518 Warmth Retaining and Thermal Resistance Tester Warmth Retaining Efficiency Test Machine

Usage

To evaluate the warmth retaining efficiency of textile cloth, fiber complex cotton pad and others.

Testing standards

JIS L-1096, ASTM D1518, GB/T11048

JIS L1096 ASTM D1518 Warmth Retaining and Thermal Resistance Tester Warmth Retaining Efficiency Test Machine

Technical Specification

Specimen Size	300 × 300 mm
Test Plate (Heat Plate) Size	250 × 250 mm
Material of Test Plate	Aluminum
Temperature Controller	LED display (Minimum display: 0.1℃), 3 pieces mounted
Temperature Sensor	K-type thermocouple
Temperature Range	20 - 50℃
Measuring Timer	Built-in LED timer (Maximum: 99 min; Minimum display: 0.1 sec)
Display of Measuring Values	Warmth Retaining Ratio (%), Coefficient of Specimen Warmth Conductivity (W/m²·℃), CLO Value (CLO)
Printer	Thermal micro-printer
Test Plate Stand Dimensions (W × D × H)	510 × 510 × 640 mm
Measurement Control Box Dimensions (W × D × H)	300 × 340 × 150 mm
Power Supply	220V, 50Hz or 110V, 60Hz
Weight	30 Kg
