ISO 4892 Water-cooled Xenon Lamp Weathering Chamber Xenon Arc Lamp Water Cooled Xenon Lamp Environmental Aging Chamber

Large Image : ISO 4892 Water-cooled Xenon Lamp Weathering Chamber Xenon Arc Lamp Water Cooled Xenon Lamp Environmental Aging Chamber

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ISO 4892 Water-cooled Xenon Lamp Weathering Chamber Xenon Arc Lamp Water Cooled Xenon Lamp Environmental Aging Chamber

Description

Inner Box Dimensions:	1000×1000×1000mm(WDH)	Outer Box Dimensions:	Approximately 1500×1600×2150mm (WDH)
Xenon Lamp Power:	6.5KW	Lamp Tube Lifespan:	Around 1500 Hours
Temperature Range:	RT + 10℃ To 70℃	Blackboard Temperature Range:	40℃ To 100℃ (lighting Cycle); 25 To 85℃ (dark Cycle)
Temperature Accuracy:	±0.1℃	Temperature Fluctuation:	±0.5℃
Humidity Range:	30% To 98% RH (in Darkness); 20% To 60% RH (when The Light Is On)	Humidity Accuracy:	±1%RH
Humidity Fluctuation:	±3%RH	Disc Rotation Speed:	1~3R/min
Rainwater Pressure:	0.12~0.15Mpa	Sprinkler Nozzle Aperture:	0.8mm
Power Supply:	AC380V ± 10% (three-phase Five-wire)
Highlight:	ISO 4892 water-cooled xenon lamp chamber , xenon arc lamp environmental aging chamber , water-cooled xenon lamp weathering tester

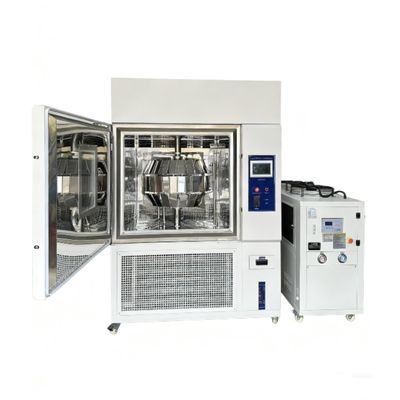

ISO 4892 Water-cooled Xenon Lamp Weathering Chamber

The xenon arc lamp simulates the full spectrum of sunlight to reproduce destructive light waves existing in different environments, providing environmental simulation and accelerated testing for scientific research, product development, and quality control. This chamber evaluates material durability under high-temperature light sources, serving industries including automotive, coatings, rubber, plastics, pigments, adhesives, fabrics, aerospace, shipbuilding, electronics, and packaging.

Product Introduction

By exposing material samples to xenon arc lamp radiation, this chamber evaluates light and weather resistance. It's ideal for new material selection, existing material modification, or durability assessment after composition changes, accurately simulating sunlight exposure under various environmental conditions.

Compliance Standards

Meets test conditions in GB/T16422.2-2014/ISO 4892-2:2006 Method A (Table 1 of 4.1.2 and Table 3 of 6.3) and sun exposure conditions in GB/T8430-1998/ISO105-B04:1994 (Section 4.3).

Key Features

Ventilation Cooling System: Automated temperature control with refrigeration system
Precision Control: Wired transmission technology for black standard thermometer
Accurate Measurement: Optical fiber transmission for xenon lamp radiation intensity
Built-in Monitoring: Black standard thermometer (BST) on sample rack
Automated Operation: Timer-controlled tests with automatic shutdown
Safety Protection: Automatic xenon lamp shut-off when door opens

Technical Specifications

Parameter	Specification
Inner Box Dimensions	1000×1000×1000mm (W×D×H)
Xenon Lamp Radiation Intensity	420nm band: (0.55~1.5)W/(m²·nm) ±0.02W/(m²·nm)
Lamp Specifications	1 tube, 6.5KW power, ~1500 hours lifespan
Temperature Range	RT +10℃ to 70℃ (Blackboard: 40-100℃ lighting, 25-85℃ dark)
Humidity Range	30-98% RH (dark), 20-60% RH (light on)
Control System	Programmable touch screen "Xenon Lamp Professional Controller"
Material Construction	SUS304 stainless steel sample rack and inner box

Control System Features

Company-developed PLC program with adaptive temperature control
Direct setting/display of blackboard temperature, air temperature, irradiation intensity
Programmable water spraying/stop times and test cycles
Intelligent microcomputer control with precise temperature regulation
Over-temperature alarm with automatic power cutoff

Operating Conditions

Protection Systems: Over-temperature, water shortage, electrical fault protection
Environment: 5-28℃, ≤85% RH, 86-106kPa atmospheric pressure
Power Supply: AC380V±10% (three-phase five-wire), 16KW
