Materials Electric Lifting Stirred Ball Mill Wet Grinding Laboratory Ball Mill Motor-Driven Elevating Agitating Ball Mill

Materials Electric Lifting Stirred Ball Mill Wet Grinding Laboratory Ball Mill Motor-Driven Elevating Agitating Ball Mill
Materials Electric Lifting Stirred Ball Mill Wet Grinding Laboratory Ball Mill Motor-Driven Elevating Agitating Ball Mill Materials Electric Lifting Stirred Ball Mill Wet Grinding Laboratory Ball Mill Motor-Driven Elevating Agitating Ball Mill Materials Electric Lifting Stirred Ball Mill Wet Grinding Laboratory Ball Mill Motor-Driven Elevating Agitating Ball Mill Materials Electric Lifting Stirred Ball Mill Wet Grinding Laboratory Ball Mill Motor-Driven Elevating Agitating Ball Mill Materials Electric Lifting Stirred Ball Mill Wet Grinding Laboratory Ball Mill Motor-Driven Elevating Agitating Ball Mill Materials Electric Lifting Stirred Ball Mill Wet Grinding Laboratory Ball Mill Motor-Driven Elevating Agitating Ball Mill

Large Image :  Materials Electric Lifting Stirred Ball Mill Wet Grinding Laboratory Ball Mill Motor-Driven Elevating Agitating Ball Mill

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

Materials Electric Lifting Stirred Ball Mill Wet Grinding Laboratory Ball Mill Motor-Driven Elevating Agitating Ball Mill

Description
Rotate Speed: 60-560 Rpm Volume: 10 L
Load Capacity: 3.5 L Power Supply: 1.5KW/220V
Feed Size: ≤10 Mm Output Granularity: ≤1μm
Protection Class: IP56 Voltage: 220 V, 110 V
Grinding Media: Stainless Steel, Corundum Ceramic, Polyurethane, Zirconia Temperature Control: Jar With Jacket
Noise Level: Low Vibration Level: Less
Energy Utilization: High Granularity Adjustment: Adjustable By Grinding Time
Model Number: LR-A369-10L
Highlight:

electric lifting laboratory ball mill

,

motor-driven wet grinding ball mill

,

agitating ball mill for lab

Materials Electric Lifting Stirred Ball Mill
Wet Grinding Laboratory Ball Mill with Motor-Driven Elevating Agitating System
High-efficiency stirred ball mill designed for wet grinding applications in laboratory and production environments, featuring adjustable granularity and energy-saving operation.
Overview
The stirred ball mill consists of a grinding jar with inner media, stirring device, and auxiliary systems including recycling, cooling, timing, and speed control components. Its high efficiency and fine granularity capabilities meet diverse process requirements.
Working Principle
High-speed rotation of the main axis causes irregular movement of grinding media, crushing, grinding and shearing materials into fine powder. Grinding results are influenced by media size, shape, and ratio - larger media typically produces finer powder. Optimal results are achieved through proper media matching and speed adjustment.
Key Features
  • High energy utilization rate with significant energy savings
  • Adjustable granularity through grinding time control
  • Low vibration and noise operation
  • Simple structure with easy operation
  • Supports both continuous and intermittent production
  • Jacketed jar for precise temperature control
  • Customizable options including timing, speed adjustment, recycling, and temperature control
  • Multiple jar material options: stainless steel, corundum ceramic, polyurethane, zirconia
Applications
Ideal for processing zirconia silicate, zirconia, alumina oxide, ceramics, chemicals, electronic materials, magnetic materials, paper-making, paints, non-metal minerals, new materials, coatings, graphite, and calcium carbonate.
Technical Specifications
Model NO. Rotate Speed (rpm) Volume (L) Load Capacity (L) Power Supply (KW/V) Feed Size (mm) Output Granularity (μm) Category
LR-A369-10L 60-560 10 3.5 1.5KW/220V ≤10 ≤1μm Light Type Scale
LR-A369-15L 60-380 15 5.25 2.2KW/380V ≤10 ≤1μm
LR-A369-20L 60-380 20 7 2.2KW/380V ≤10 ≤1μm
LR-A369-30L 60-310 30 10.5 3KW/380V ≤10 ≤1μm
LR-A369-50L 60-140 50 17.5 4KW/380V ≤10 ≤1μm
LR-A369-100L 60-140 100 35 7.5KW/380V ≤20 ≤1μm Production Type Scale
LR-A369-200L 60-140 200 70 11KW/380V ≤20 ≤1μm
LR-A369-300L 60-110 300 100 15KW/380V ≤20 ≤1μm
LR-A369-500L 60-90 500 170 18.5KW/380V ≤20 ≤1μm
LR-A369-600L 60-90 600 210 22KW/380V ≤20 ≤1μm

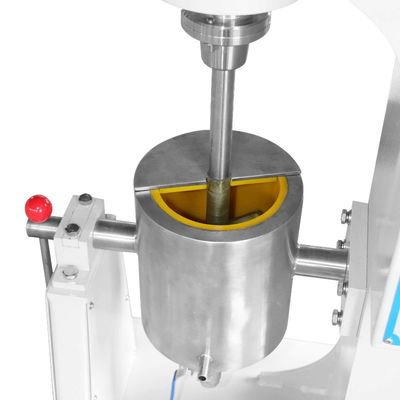

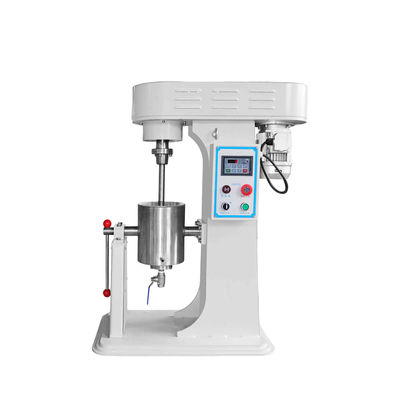

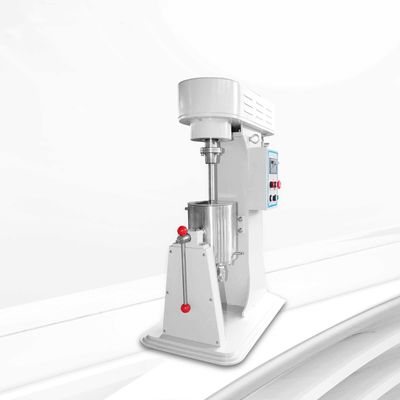

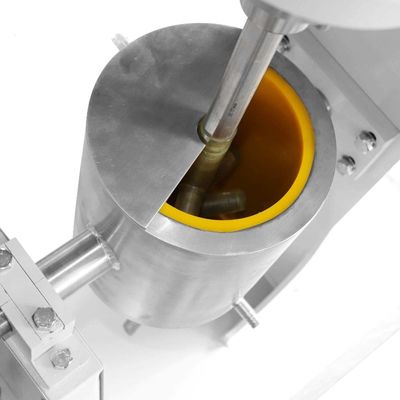

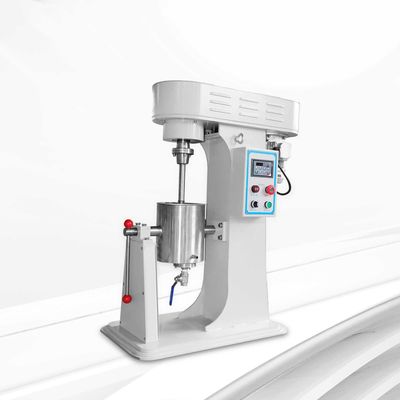

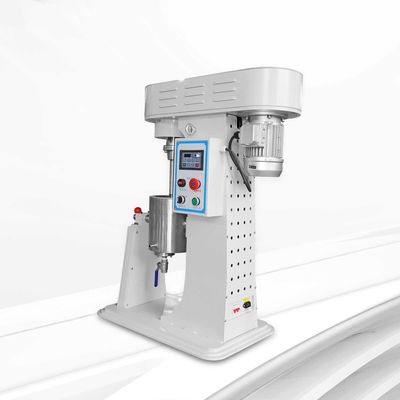

Product Images
Materials Electric Lifting Stirred Ball Mill Wet Grinding Laboratory Ball Mill Motor-Driven Elevating Agitating Ball Mill 0
Materials Electric Lifting Stirred Ball Mill Wet Grinding Laboratory Ball Mill Motor-Driven Elevating Agitating Ball Mill 1
Materials Electric Lifting Stirred Ball Mill Wet Grinding Laboratory Ball Mill Motor-Driven Elevating Agitating Ball Mill 2
Materials Electric Lifting Stirred Ball Mill Wet Grinding Laboratory Ball Mill Motor-Driven Elevating Agitating Ball Mill 3
Materials Electric Lifting Stirred Ball Mill Wet Grinding Laboratory Ball Mill Motor-Driven Elevating Agitating Ball Mill 4
Materials Electric Lifting Stirred Ball Mill Wet Grinding Laboratory Ball Mill Motor-Driven Elevating Agitating Ball Mill 5
Materials Electric Lifting Stirred Ball Mill Wet Grinding Laboratory Ball Mill Motor-Driven Elevating Agitating Ball Mill 6
