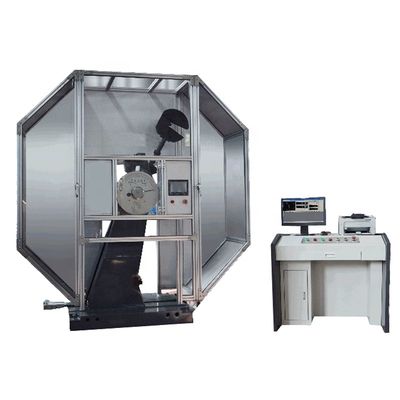

300J 500J 750J Computer Pendulum Charpy V-notch Impact Testing Machine V-notch Impact Tester Price

Large Image : 300J 500J 750J Computer Pendulum Charpy V-notch Impact Testing Machine V-notch Impact Tester Price

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

300J 500J 750J Computer Pendulum Charpy V-notch Impact Testing Machine V-notch Impact Tester Price

Description

Maximum Impact Energy:	750J	Effective Range:	20%-80%FS
Prelift Angle:	150°	Axis To Blow Center:	750mm
Impact Speed:	5.24m/s	Anvil Block Span:	40mm
Anvil Block Slope:	11°±1°	Impact Blade Angle:	30°±1°
Impact Blade Radius:	2mm-2.5mm	Angle Accuracy:	0.06°
Digital Angle Resolution:	0.015°	Digital Power Resolution:	0.12J
Minimum Dial Resolution:	≥1.25J	Power Rate:	1.5kW
Voltage:	380V±10%
Highlight:	Charpy impact testing machine 300J , V-notch impact tester 500J , Pendulum impact tester 750J

300J 500J 750J Computer Pendulum Charpy V-notch Impact Testing Machine

This series of impact testing machines represents the highest level of domestic pendulum impact testing machines, featuring high stiffness mainframe construction, microcomputer control, and automatic test measurement recording.

Key Features and Applications

Designed and manufactured according to ISO 148:1998 and GB/T 3808-2010 standards
Fully compliant with domestic and international standards for metallic material impact testing
Certified by EU CE certification and national testing center inspections
Powerful functionality with stable, reliable performance and accurate test results
Ideal for testing material impact resistance under dynamic loads and evaluating material toughness
Widely used in research institutes, universities, aerospace, metallurgy, manufacturing, and quality control

Technical Specifications

Host and Attached Parameters:

Item	JBW-750C
Maximum impact energy (J)	750
Effective range	20%-80%FS
Prelift Angle of pendulum	150°
Distance from axis to center of blow	750mm

Machine Specifications:

Item	JBW-750C
Impact energy N	535.8985
Moment of pendulum N*m	401.9239
Impact speed	5.24m/s
Anvil block span	40mm
Corner radius of anvil holder	R1-1.5mm
Slope Angle of anvil block	11°±1°
Impact blade Angle	30°±1°
Impact blade Curvature radius	2mm Impact blade: 2mm-2.5mm 8mm Impact blade: 8mm±0.05mm
Meet sample specifications (mm)	10×10×55mm, 10×7.5×55mm, 10×5×55mm, 10×2.5×55mm

Measured Parameters:

Item	JBW-750C
Angle measurement method	Photoelectric encoder
Angle accuracy	0.06°
Digital display Angle resolution	0.015°
Digital display power resolution	0.12J
Energy display mode	Dial, LCD, microcomputer

Total Machine Specifications:

Item	JBW-750C
Out size (Host)	2220×900×2220mm (L×W×H)
Out size (Electric cabinet)	960×620×830mm (L×W×H)
Weight (Host)	About 1500Kg
Weight (Electric cabinet)	About 100Kg
Power requirements	3phase 5 wires, 380V±10%, 50Hz
Use environment	No vibration, no dust; Room temperature (15-25℃); Humidity <70%

Compliance Standards

GB/T 2611-2007 (Test machine general technical requirements)
GB/T 3808-2010 (Testing of pendulum impact testing machine)
GB/T 229-2007 (Charpy pendulum impact test method for metallic materials)
JJG 145-2007 (Pendulum impact testing machine)
ISO 148:1998 (Metallic materials-Charpy pendulum impact test)
ASTM E23-07a (Standard Test Methods for Notched Bar Impact Testing of Metallic Materials)
GB/T 18658-2002 (Charpy V notch standard sample for testing of pendulum impact testing machine)
JB/T 6147-2007 (Test machine packaging, packaging mark, storage and transportation technical requirements)

300J 500J 750J Computer Pendulum Charpy V-notch Impact Testing Machine

Detailed view of impact testing components
