Metal Charpy Pendulum Impact Tester Testing Equipment 300J Impact Test Machine Tester

Large Image : Metal Charpy Pendulum Impact Tester Testing Equipment 300J Impact Test Machine Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Metal Charpy Pendulum Impact Tester Testing Equipment 300J Impact Test Machine Tester

Description

Max Impact Energy:	150J, 300J	Dial Scale Range:	0~300J, 0~150J
Pendulum Moment:	160.7695N.m (300J), 80.3848N.m (150J)	Pendulum Angle:	150°
Impact Speed:	5.2 M/s	Sample Bearing Span:	40±1 Mm
Sample End Radius:	1-1.5 Mm	Impact Blade Radius:	2-2.5 Mm
Impact Blade Angle:	30°	Impact Blade Thickness:	16 Mm
Sample Specifications:	101055 Mm	Machine Weight:	450 Kg
Machine Dimensions:	21246001340 Mm	Power Supply:	50Hz 380V Three-phase
Main Motor Power:	380V 180W
Highlight:	300J metal Charpy impact tester , pendulum impact testing machine , hydraulic Charpy impact tester

Metal Charpy Pendulum Impact Tester Testing Equipment 300J Impact Test Machine Tester

Product Overview

This series of impact testing machines is manufactured in strict compliance with GB/T3808-2007 "Pendulum Impact Testing Machine" standards and GB/T229-1994 "Metallic Materials - Charpy Notch Impact Test Method" for conducting impact tests on metal materials.

The testing principle measures the difference between the pendulum's potential energy before impact and residual energy after impact, displaying the absorbed energy on the dial.

Key Features

Operates by measuring potential energy difference before and after impact to determine material absorption

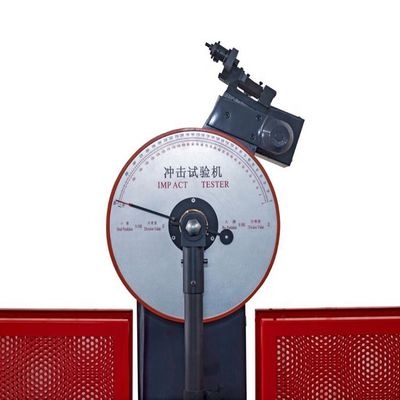

Dial pointer display for clear energy measurement
Semi-automatic control with electric lift for sample placement
Automatic pendulum return after impact for efficient operation
High productivity for continuous impact testing applications

Applications

This machine is widely used in mechanical, metallurgical, aerospace industries, universities, and research institutes for measuring metal material impact toughness and dynamic load resistance.

Primary Uses

Primarily used for impact toughness testing of ferrous metals, particularly castings, steel, and their alloys, to measure impact energy absorption and material resilience.

Technical Specifications

Main Technical Indicators

Parameter	Specification
Maximum Impact Energy	150J / 300J (dual capacity)
Dial Scale Range	0-300J (2J increments) 0-150J (1J increments)
Pendulum Moment	300J: 160.7695N.m 150J: 80.3848N.m
Pendulum Lift Angle	150°
Pendulum Center to Impact Point	750mm
Impact Velocity	5.2 m/s
Specimen Support Span	40 ± 1mm
Specimen Support End Radius	1-1.5mm
Impact Blade Radius	2-2.5mm
Impact Blade Angle	30°
Impact Blade Thickness	16mm
Specimen Dimensions	10 × 10 × 55mm
Machine Weight	≈450kg
Dimensions	2124 × 600 × 1340mm
Power Supply	50Hz 380V three-phase four-wire system
Main Motor Power	380V 180W

Operating Conditions

Ambient temperature: 10-35°C
Relative humidity: ≤85%
Non-corrosive environment
Installed on ≥300mm concrete foundation or fixed base >880kg
Installation levelness: 0.2/1000 within datum

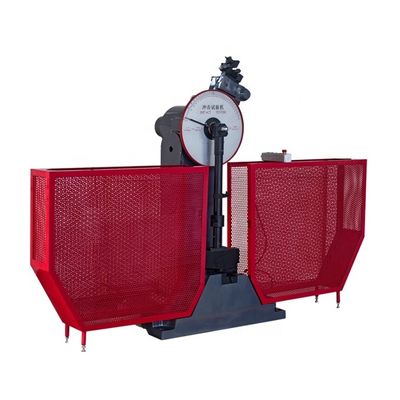

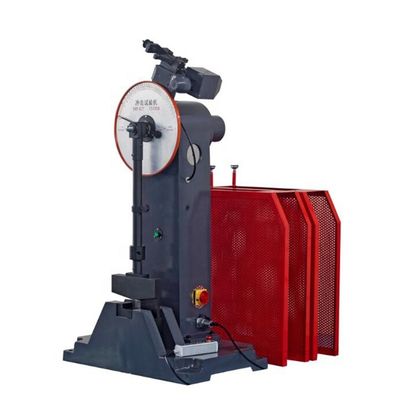

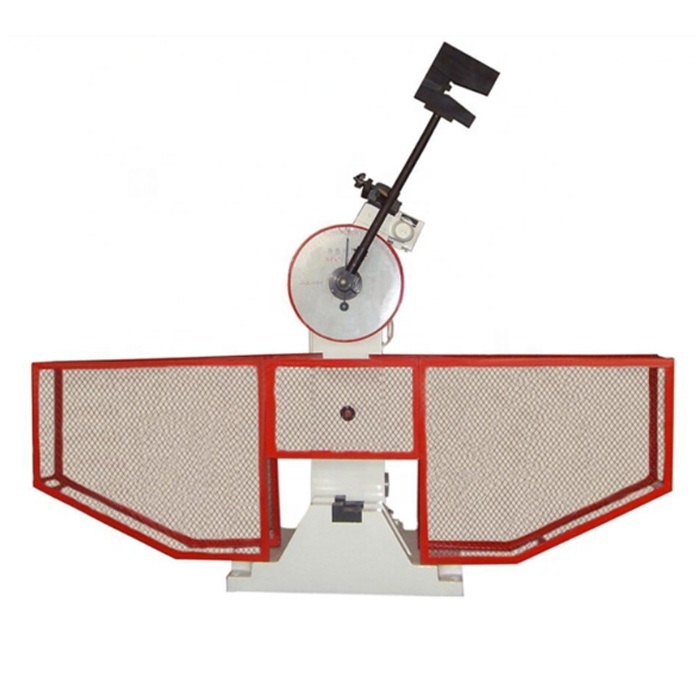

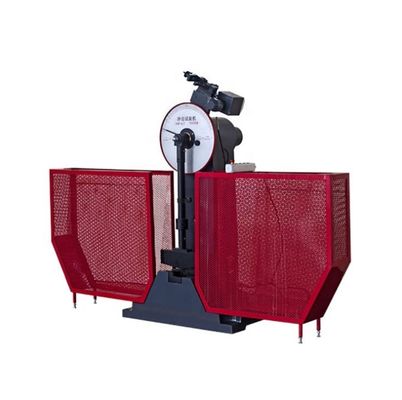

Product Images
