ASTM E23 ISO 148 Microcomputer Control Pendulum Impact Testing Machine Factory Price

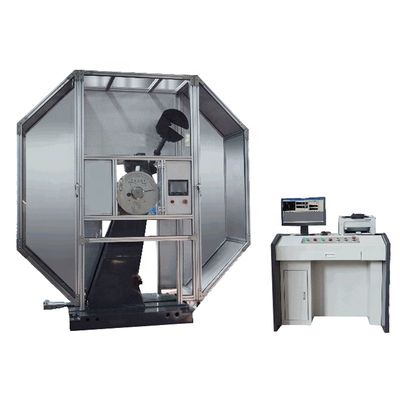

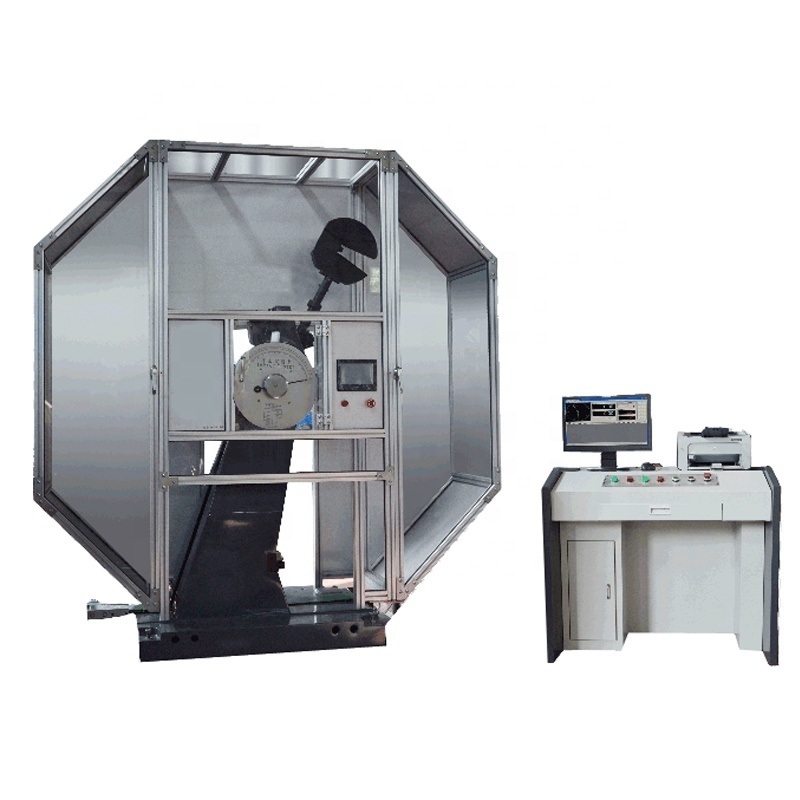

Large Image : ASTM E23 ISO 148 Microcomputer Control Pendulum Impact Testing Machine Factory Price

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ASTM E23 ISO 148 Microcomputer Control Pendulum Impact Testing Machine Factory Price

Description

Maximum Impact Energy:	750 J	Effective Range:	20%-80% FS
Prelift Angle:	150°	Axis Distance:	750 Mm
Impact Energy:	535.8985 N	Moment Of Pendulum:	401.9239 N*m
Impact Speed:	5.24 M/s	Anvil Block Span:	40 Mm
Anvil Block Slope:	11°±1°	Impact Blade Angle:	30°±1°
Impact Blade Radius:	2 Mm	Angle Accuracy:	0.06°
Power Rate:	1.5 KW	Host Weight:	1500 Kg
Electric Cabinet Weight:	100 Kg
Highlight:	microcomputer control pendulum impact tester , ASTM E23 impact testing machine , ISO 148 hydraulic testing equipment

ASTM E23 ISO 148 Microcomputer Control Pendulum Impact Testing Machine

Product Overview

This high-stiffness pendulum impact testing machine features microcomputer control and automatic measurement recording, representing the most advanced domestic impact testing technology. Designed for precision impact resistance testing of metallic materials, it provides reliable data for material toughness and brittleness evaluation.

Key Features

Compliant with ISO 148:1998 and GB/T 3808-2010 standards
CE certified and verified by national testing authorities
Precision testing with 0.06° angle accuracy
Multiple energy display modes: dial, LCD, and microcomputer
Wide application in aerospace, metallurgy, manufacturing, and research

Technical Specifications

Host and Attached Parameters

Item	JBW-750C
Maximum impact energy (J)	750
Effective range	20%-80%FS
Prelift Angle of pendulum	150°
Distance from axis to center of blow	750mm

Machine Specification

Item	JBW-750C
Impact energy N	535.8985
Moment of pendulum N*m	401.9239
Impact speed	5.24m/s
Anvil block span	40mm
Corner radius of anvil holder	R1-1.5mm
Slope Angle of anvil block	11°±1°
Impact blade Angle	30°±1°
Impact blade Curvature radius	2mm Impact blade: 2mm-2.5mm 8mm Impact blade: 8mm±0.05mm
Sample specifications (mm)	10×10×55mm, 10×7.5×55mm, 10×5×55mm, 10×2.5×55mm

Total Machine Specification

Item	JBW-750C
Out size (Host)	2220×900×2220mm (L×W×H)
Electric cabinet	960×620×830mm (L×W×H)
Weight (Host)	About 1500Kg
Weight (Electric cabinet)	About 100Kg
Power	3phase 5 wires, 380V±10%, 50Hz
Use environment	No vibration, no dust; Room temperature (15-25℃); Humidity <70%

Compliance Standards

GB/T 2611-2007 (Test machine General technical requirements)
GB/T 3808-2010 (Testing of pendulum impact testing machine)
GB/T 229-2007 (Charpy pendulum impact test method for metallic materials)
ISO 148:1998 (Metallic materials-Charpy pendulum impact test)
ASTM E23-07a (Standard Test Methods for Notched Bar Impact Testing of Metallic Materials)
