ISO 200ton Concrete Compression Testing Machine Price for Steel Plates Hydraulic Concrete Compressive Strength Tester

Large Image : ISO 200ton Concrete Compression Testing Machine Price for Steel Plates Hydraulic Concrete Compressive Strength Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Model Number:	YAW-2000D

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ISO 200ton Concrete Compression Testing Machine Price for Steel Plates Hydraulic Concrete Compressive Strength Tester

Description

Platens Size:	Ø300 Mm	Resolution:	1 N
Input Voltage:	220 V	Power Type:	Hydraulic
Max Force:	2000 KN	Test Force Range:	5%-100%
Force Error:	±1%	Plate Spacing:	320 Mm
Piston Stroke:	50 Mm	Column Spacing:	260 Mm
Main Frame Size:	8004001200 Mm	Motor Power:	2 KW
Total Weight:	750 Kg	Pressure Plate Size:	Φ300 Mm
Overload Protection:	3% Of Max Force
Highlight:	ISO 200ton concrete compression tester , hydraulic concrete strength testing machine , steel plate compression tester with warranty

ISO 200ton Concrete Compression Testing Machine

Hydraulic Concrete Compressive Strength Tester for Steel Plates

High-precision digital servo valve measurement and control system with force closed-loop control function, capable of load rate or stress rate loading. Meets GB/T 17617 standards for cement sand strength testing, featuring automatic calculation and report printing.

Key Features

Hydraulic System: High-pressure pump circulates oil through precision components to achieve ISO-velocity test force control
Measurement System: High-precision amplifier and A/D converter with real-time display of load, speed, and peak intensity
Software Control: PID closed-loop control strategy for constant speed loading with load curve visualization
Safety Protection: Automatic overload protection (3% max force) and limit protection systems

Technical Specifications

Parameter	Value
Max force (kN)	2000
Test force measurement range	5%-100%
Test force indication relative error	< ±1%
Upper/lower pressure plate spacing (mm)	320
Piston stroke (mm)	50
Column spacing (mm)	260
Pressure plate size (mm)	Φ300
Main frame size (mm)	800×400×1200
Motor power (kW)	2
Total weight (kg)	750

Standard Configuration

Component	Quantity	Details
Testing machine	1 SET	Includes motor, oil pump, servo valve
Computer	1 set	Lenovo brand commercial machine
Printer	1 set	Inkjet
Measurement and control system	1 set
Force sensor	1 set	2000KN
Upper/lower pressure plate	1 set	Φ155

System Interface & Reports

Main control interface

Test results output

Automated report generation

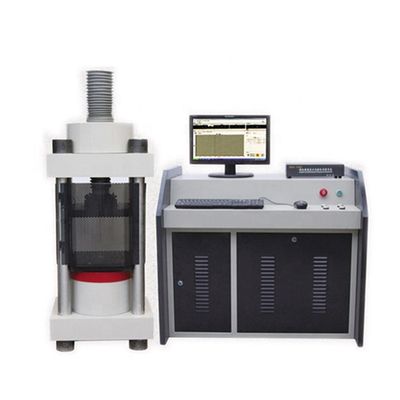

Machine Overview

Complete testing machine assembly

Detailed component view
