Pull-off Coating Adhesion Tester,Digital Pull Off Adhesion Tester,Bond Strength Usage Pull-off Adhesion Tester

Large Image : Pull-off Coating Adhesion Tester,Digital Pull Off Adhesion Tester,Bond Strength Usage Pull-off Adhesion Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$1,200

Contact Now

Pull-off Coating Adhesion Tester,Digital Pull Off Adhesion Tester,Bond Strength Usage Pull-off Adhesion Tester

Description

Power:	100W	Voltage:	220 V
Protection Class:	IP55	Dolly Size:	20mm (Standard); 10mm, 14mm, 50mm (Optional)
Resolution:	0.01MPa (1psi)	Accuracy:	±1% Full Scale
Max Pull-off Pressure:	Φ10mm: 0-80 MPa; Φ14mm: 0-40 MPa; Φ20mm: 0-20 MPa; Φ50mm: 0-3.5 MPa	Power Source:	Built-in Rechargeable Lithium Battery
Tester Size:	360mm × 75mm × 115mm (L X W X H)	Tester Weight:	3KG
Pull-off Speed:	1MPa/s	Display Type:	Digital LCD
Battery Type:	Rechargeable Lithium Battery	Sensor Resolution:	0.01MPa
Test Standards:	ISO 4624, ASTM D4541, ASTM D7234
Highlight:	digital pull off adhesion tester , bond strength adhesion tester , pull-off coating tester with warranty

Pull-off Coating Adhesion Tester

Digital Pull Off Adhesion Tester for Bond Strength Measurement

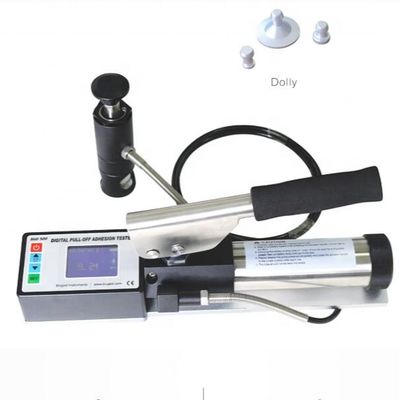

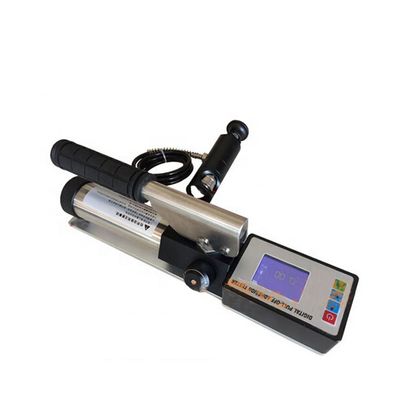

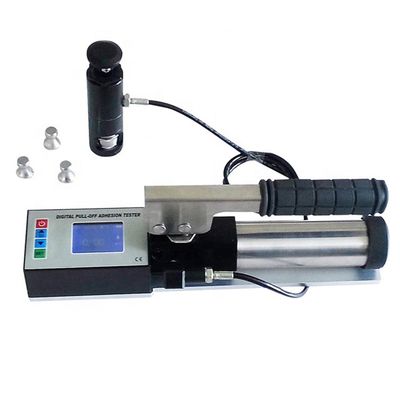

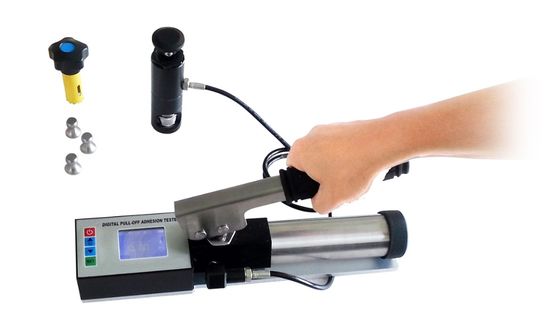

This portable, hand-operated instrument measures the force required to pull a specified test diameter of coating away from its substrate using hydraulic pressure. The pressure is displayed on a digital LCD, representing the coating's strength of adhesion to the substrate.

Application Methods

Cross-Cut Test

Assesses paint and coating resistance to separation when a right angle lattice pattern is cut into the coating. Useful for quick pass/fail testing and evaluating multi-coat systems.

Scrape Adhesion

Determines adhesion of organic coatings on smooth surfaces by applying increasing weight until coating removal occurs. Provides relative ratings for coated panels.

Pull-off Test

Measures minimum tensile stress needed to detach coatings perpendicular to substrate. Uses loading fixtures (dollies) adhered to coating surface with special adhesive.

Key Features

CONVENIENT

Portable design for use anywhere
Built-in rechargeable lithium battery
Four selectable dolly sizes for different resolutions
Direct LCD results display
Complete testing toolset included

PRECISE

NIST traceable calibration within 1% accuracy
0.01MPa resolution professional sensor
Self-aligning dollies for reliable results

INTELLIGENT

Automatic test result storage (max pull-off power, rate, dolly size, time)
MPa/psi unit selection with automatic conversion
USB functionality for direct data access
Pull-off rate monitoring

DURABLE

Waterproof, dustproof and shockproof design
Strong plastic carrying case
Two year warranty

Test Standards

ISO 4624: Paints and varnishes - Pull-off test for adhesion
ASTM D 4541: Standard Test Method for Pull-Off Strength of Coatings
ASTM D7234: Pull-Off Adhesion Strength on Concrete

Technical Specifications

Parameter	Specification
Dolly Sizes	20mm (Standard); 10mm, 14mm, 50mm (Optional)
Resolution	0.01MPa (1psi)
Accuracy	±1% Full scale
Max Pull-off Pressure	Φ10mm: 0-80 MPa; Φ14mm: 0-40 MPa; Φ20mm: 0-20 MPa; Φ50mm: 0-3.5 MPa
Power	Built-in rechargeable lithium battery with charging adapter
Dimensions	360mm × 75mm × 115mm (L × W × H)
Weight	3KG

Packing List

Adhesion Tester with digital display
20mm Aluminum test dollies (20 pcs)
Cutting tool for 20mm dollies
3M Adhesive and glue gun
Micro-USB cable
Operation Manual
Carrying case
