SNB-T Series Touch Screen Rotary Viscometer Viscosimeter Viscosity Meter Rotary Viscosity Instrument

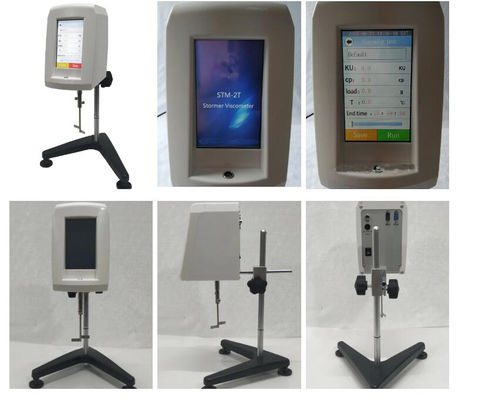

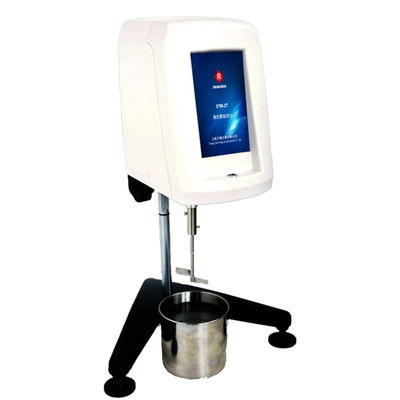

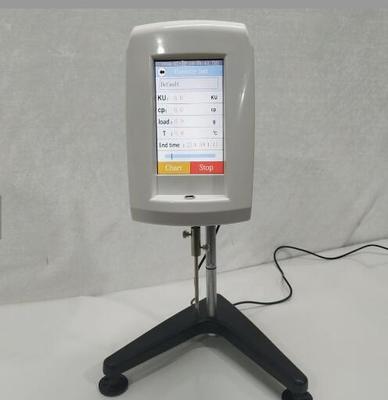

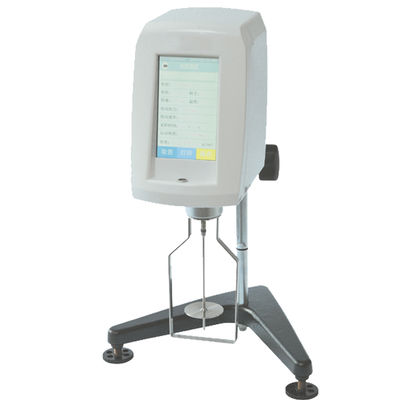

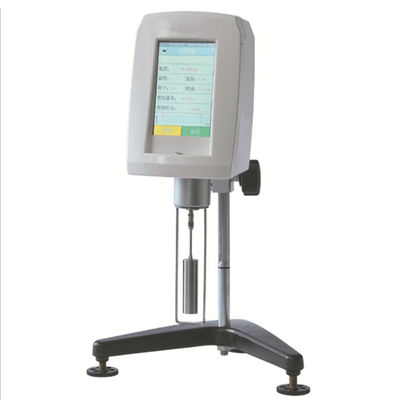

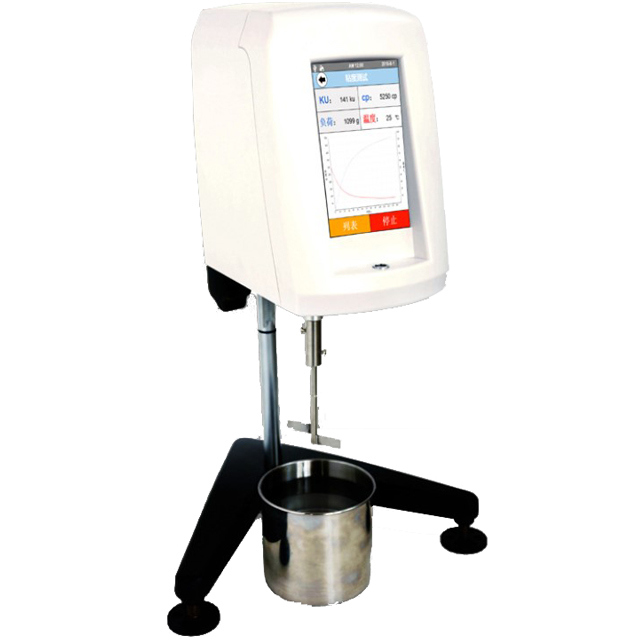

Large Image : SNB-T Series Touch Screen Rotary Viscometer Viscosimeter Viscosity Meter Rotary Viscosity Instrument

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

SNB-T Series Touch Screen Rotary Viscometer Viscosimeter Viscosity Meter Rotary Viscosity Instrument

Description

Display Mode:	5 Inches Color Touch Screen	Rotor Speed:	0.3/0.6/1.5/3/6/12/30/60 R/min (SNB-1T), 0.1/0.3/0.6/1.5/3/6/12/30/60 R/min (SNB-2T)
Measuring Range:	1~2,000,000 MPa.s (SNB-1T), 1~6,000,000 MPa.s (SNB-2T)	Rotor Types:	1, 2, 3, 4# (standard), 0# (standard For Low Viscosity)
Measurement Error:	±1% (Newtonian Liquid)	Repetitive Error:	±0.5% (Newtonian Liquid)
Timing Function:	Standard	Temperature Measurement:	Standard Temperature Sensor Interface (optional Sensor)
Automatic Scanning:	Automatic Scanning For Optimal Rotor-speed Combination	Shear Rate Display:	Standard
Kinematic Viscosity Display:	Requires Input Of Sample Density	Self-built Programs:	30 Groups (rotor, Speed, Temperature, Time)
Data Storage:	30 Sets (viscosity, Temperature, Speed, Shear Rate, Stress, Time, Density)	Working Power:	110V/60Hz Or 220V/50Hz
Dimensions:	300 × 300 × 450 Mm
Highlight:	touch screen rotary viscometer , rotary viscosity instrument with warranty , SNB-T series viscosity meter

SNB-T Series Touch Screen Rotary Viscometer

The SNB-T Series Touch Screen Rotary Viscometer provides accurate viscosity measurements with its advanced features. Equipped with a 5-inch color touch screen, it offers comprehensive parameter display and intuitive operation. This instrument leads the domestic viscometer technology trend and can replace imported equipment.

Key Features

ARM technology with built-in Linux system for simple operation interface
Precise viscosity measurement with automatic calibration for high accuracy
Rich display content including temperature, shear rate, shear stress, and more
Comprehensive functions: timing measurement, 30 test programs, data storage
Intuitive level adjustment and optional accessories
Bilingual operating system (English and Chinese)
Wide applications in paints, coatings, food, oil, adhesives, and more

Technical Specifications

Parameter	SNB-1T	SNB-2T
Control/Display	5 inches color touch screen
Speed (r/min)	0.3/0.6/1.5/3/6/12/30/60	0.1/0.3/0.6/1.5/3/6/12/30/60
Measuring Range (mPa.s)	1~2,000,000	1~6,000,000
Rotor	1, 2, 3, 4# (standard), 0# Rotor (standard)
Measurement Error	±1% (Newtonian liquid)
Repetitive Error	±0.5% (Newtonian liquid)
Temperature Measurement	Standard temperature sensor interface (optional sensor)
Data Storage	30 sets of measurement data
Dimensions	300 × 300 × 450 (mm)

Optional Accessories

Ultra low viscosity adapter (0# rotor)
Temperature probe (temperature sensor)
Micro thermal printer
Viscometer special thermostatic bath
