Vertical Lab Ball Mill 0.5L Mini Wet Grinding Stirred Mill Machine High Speed Stirred Ball Mill Mixing Ball Mill

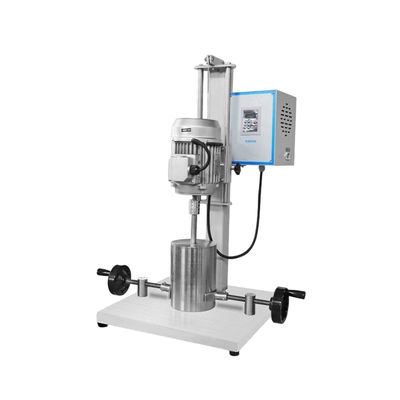

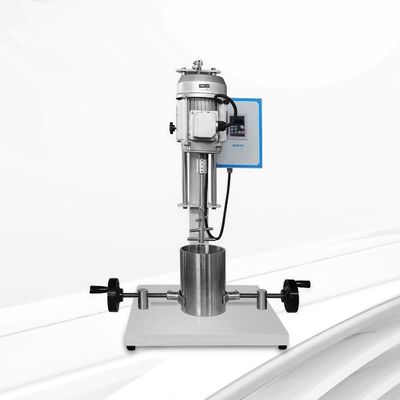

Large Image : Vertical Lab Ball Mill 0.5L Mini Wet Grinding Stirred Mill Machine High Speed Stirred Ball Mill Mixing Ball Mill

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Vertical Lab Ball Mill 0.5L Mini Wet Grinding Stirred Mill Machine High Speed Stirred Ball Mill Mixing Ball Mill

Description

Voltage:	380 V	Power Supply:	7.5KW/380V
Feed Size:	≤20 Mm	Output Granularity:	≤1μm
Volume:	600 L	Protection Class:	IP56
Rotate Speed:	60-140 Rpm	Load Capacity:	210 L
Grinding Media:	Stainless Steel, Corundum Ceramic, Polyurethane, Zirconia	Grinding Temperature:	Controllable
Noise Level:	Low	Vibration Level:	Less
Grinding Time:	Adjustable	Grinding Jar Material:	Stainless Steel, Corundum Ceramic, Polyurethane, Zirconia
Model Number:	LR-A370-600L
Highlight:	0.5L vertical lab ball mill , mini wet grinding stirred mill , high speed lab ball mill

Vertical Lab Ball Mill 0.5L Mini Wet Grinding Stirred Mill Machine

Overview of Stirred Ball Mill

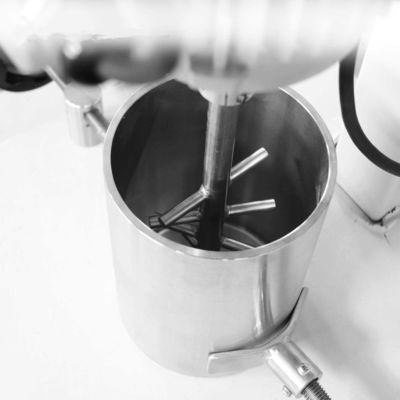

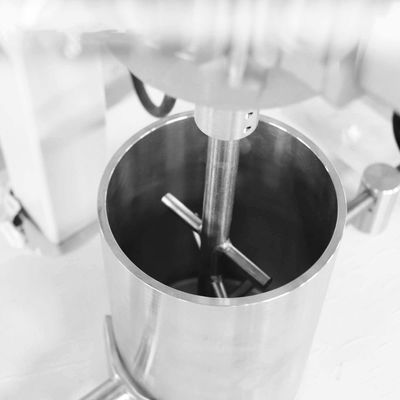

The stirred ball mill consists of a jar with inner grinding media, stirring device, and auxiliary components including recycling device, cooling system, timer, and speed controller. This high-efficiency machine delivers fine granularity to meet various process requirements. Its small batch capability, low power consumption, and affordable price make it ideal for material research and development in universities, research centers, and industrial facilities.

Working Principle

During operation, the main axis drives the machine at high speed while grinding media move irregularly within the chamber. This action crushes, grinds, and shears materials into fine powder. Grinding results are influenced by media size, shape, and ratio - larger media typically produces finer powder. Optimal performance is achieved through proper media matching and precise speed adjustment.

Key Features

High energy efficiency with significant power savings
Adjustable granularity through grinding time control
Low vibration and quiet operation
Simple structure for easy operation
Supports both continuous and intermittent production
Jacketed jar for temperature control during grinding
Customizable options including timing, speed control, recycling, and temperature regulation
Multiple jar material options: stainless steel, corundum ceramic, polyurethane, zirconia

Applications

This light-type stirred ball mill is widely used in processing zirconia silicate, alumina oxide, ceramics, chemicals, electronic materials, magnetic materials, paper production, paints, non-metal minerals, coatings, graphite, calcium carbonate, and various new materials.

Technical Specifications

Model NO.	Rotate Speed (rpm)	Volume (L)	Load Capacity (L)	Power Supply (KW/V)	Feed Size (mm)	Output Granularity (μm)
LR-A370-100L	60-140	100	35	7.5KW/380V	≤20	≤1μm
LR-A370-200L	60-140	200	70	11KW/380V	≤20	≤1μm
LR-A370-300L	60-110	300	100	15KW/380V	≤20	≤1μm
LR-A370-500L	60-90	500	170	18.5KW/380V	≤20	≤1μm
LR-A370-600L	60-90	600	210	22KW/380V	≤20	≤1μm
