Gel Time Analyzer Resin Gel Time Measuring Instrument LCD Digital Display Prepreg Gelation Time Tester

Large Image : Gel Time Analyzer Resin Gel Time Measuring Instrument LCD Digital Display Prepreg Gelation Time Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Gel Time Analyzer Resin Gel Time Measuring Instrument LCD Digital Display Prepreg Gelation Time Tester

Description

Power:	300W	Voltage:	220 V, AC220V 50Hz
Machine Dimension:	L360W430H540mm	Weight:	15kg
Time Range:	0-999.9s	Temperature Range:	Room Temperature~230℃
Temperature Precision:	±0.5℃	Hot Plate Size:	φ20 Mm
Protection Class:	IP56	Temperature Control:	PID Control
Time Resolution:	0.1S	Display Type:	LCD Digital
Control Accuracy:	±0.5 ℃	Start/stop Buttons:	2 (left & Right)
Current Protection:	Reliable Devices
Highlight:	gel time analyzer resin tester , LCD digital gel time instrument , prepreg gelation time measuring device

Gel Time Analyzer Resin Gel Time Measuring Instrument

LCD Digital Display Prepreg Gelation Time Tester

Product Description

This specialized instrument is designed for testing gel time of prepreg and resin in the CCL and PCB manufacturing industry.

Key Features

Features OMRON temperature control with digital display and PID control for precise gum pond temperature regulation (±0.5℃ accuracy)
High-precision time recording with minimum resolution of 0.1 seconds
Enhanced operational safety with reliable current and earth leakage protection devices
Ergonomic design with dual start/stop control buttons on both sides for left- or right-handed operation
Large LCD digital display with modern, elegant appearance

Technical Specifications

Parameter	Specification
Time Range	0-999.9s
Temperature Range	Room temperature to 230℃
Temperature Precision	±0.5℃
Hot Plate Size	φ20 mm
Voltage	AC220V 50Hz
Power	300W
Dimensions	L360 × W430 × H540mm
Weight	15kg

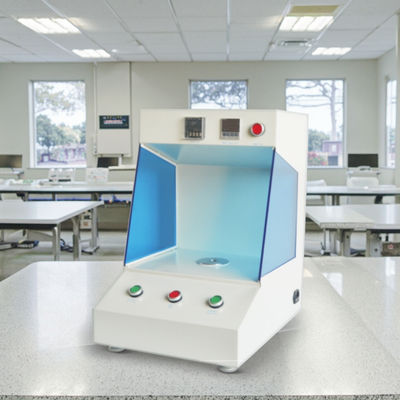

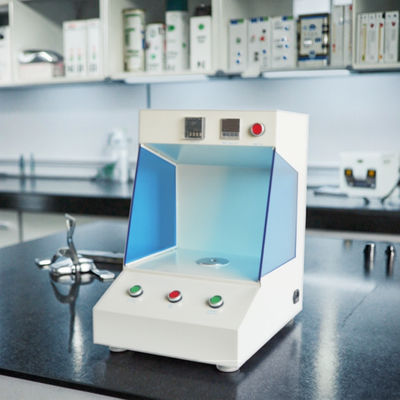

Product Images
