ASTM D1056 ISO 2439 Foam Compress Testing Machine 0-20KN JIS K6401 EN 10002 Sponge Compression Tester

ASTM D1056 ISO 2439 Foam Compress Testing Machine 0-20KN JIS K6401 EN 10002 Sponge Compression Tester
ASTM D1056 ISO 2439 Foam Compress Testing Machine 0-20KN JIS K6401 EN 10002 Sponge Compression Tester ASTM D1056 ISO 2439 Foam Compress Testing Machine 0-20KN JIS K6401 EN 10002 Sponge Compression Tester ASTM D1056 ISO 2439 Foam Compress Testing Machine 0-20KN JIS K6401 EN 10002 Sponge Compression Tester ASTM D1056 ISO 2439 Foam Compress Testing Machine 0-20KN JIS K6401 EN 10002 Sponge Compression Tester ASTM D1056 ISO 2439 Foam Compress Testing Machine 0-20KN JIS K6401 EN 10002 Sponge Compression Tester ASTM D1056 ISO 2439 Foam Compress Testing Machine 0-20KN JIS K6401 EN 10002 Sponge Compression Tester

Large Image :  ASTM D1056 ISO 2439 Foam Compress Testing Machine 0-20KN JIS K6401 EN 10002 Sponge Compression Tester

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

ASTM D1056 ISO 2439 Foam Compress Testing Machine 0-20KN JIS K6401 EN 10002 Sponge Compression Tester

Description
Capacity: 2 KN Accuracy: 0.5 Level,±0.5%
Load Sensing: High Precision Tension And Pressure Transducer High Resolution: 1/500000
Magnification: 24-digit AD, No Period Of Zoom Test Speed Range: 0.1~500 Mm/min
Speed Control Accuracy: ±0.2% (0.5 Level) Up Compress Plate: Diameter 200mm, Bottom Rounded R1mm
Down Plate: 400×400mm, Air Hole Diameter 6mm, Spacing 20mm Servo Motor: AC Servo Motor & Servo Drive Controller
Power Consumption: 0.5 KVA Power: 1ø, 220 VAC, 50/60 Hz
Volume: 65×55×200 Cm Weight: 200 Kg
Protection Class: Ip56
Highlight:

ASTM D1056 foam compression tester

,

ISO 2439 sponge compression machine

,

0-20KN lab test machine

ASTM D1056 ISO 2439 Foam Compression Testing Machine 0-20KN
Product Overview

The ASTM D1056 ISO 2439 Foam Compression Testing Machine is a precision instrument designed for evaluating the mechanical properties of foam, sponge, and similar materials. This 0-20KN capacity tester complies with multiple international standards including JIS K6401 and EN 10002.

Compliance Standards
ASTM D1056, GB 10807, ISO 2439, JIS K6401, JIS K6767, GB16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13022-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006 2411, ISO 4587, ISO/TS 11405, ISO 3385, ASTM E4, BS 1610, DIN 51221, ISO 7500, EN 10002, ASTM D628, ASTM D638, ASTM D3574
Applications

This versatile testing machine serves multiple industries including:

  • Aerospace and aviation components
  • Petrochemical and industrial materials
  • Plastic, rubber, and polymer products
  • Wire, cable, and electrical insulation
  • Textile fibers and composite materials
  • Packaging materials and adhesive products
  • Food and pharmaceutical testing

The system performs comprehensive material evaluations including tensile, compression, bending, tear, peel, adhesion, and shear tests with appropriate fixtures.

Key Features
  • Advanced digital control system replacing conventional mechanical testers
  • Precision-engineered structure with steel/aluminum construction for stability
  • High-efficiency servo motor with digital communication for accurate speed control
  • Comprehensive PC-based testing software for complete parameter control
  • Multi-functional measurement system for various mechanical property tests
  • Advanced data processing with graphical interface and database support
Technical Specifications
Parameter Specification
Capacity 2 KN
Accuracy 0.5 level, ±0.5%
Load Sensing High precision tension/pressure transducer (multiple sensors optional)
Resolution 1/500000
Test Speed Range 0.1~500 mm/min (adjustable)
Upper Compression Plate Diameter 200mm, Bottom rounded R1mm
Lower Plate 400×400mm with air holes (6mm diameter, 20mm spacing)
Power Requirements 1ø, 220 VAC, 50/60 Hz, 0.5 kVA
Dimensions 65×55×200 cm
Weight 200 kg
Product Images

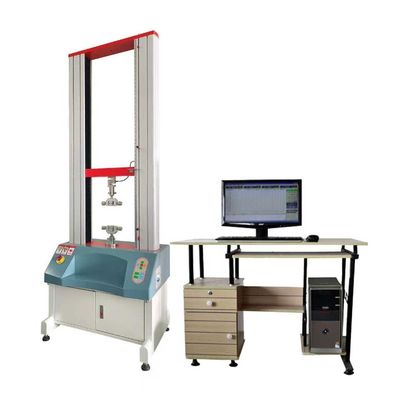

ASTM D1056 ISO 2439 Foam Compress Testing Machine 0-20KN JIS K6401 EN 10002 Sponge Compression Tester 0

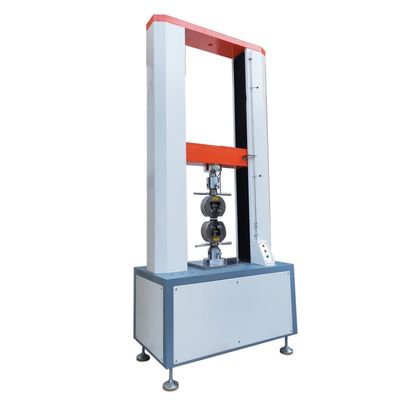

ASTM D1056 ISO 2439 Foam Compress Testing Machine 0-20KN JIS K6401 EN 10002 Sponge Compression Tester 1

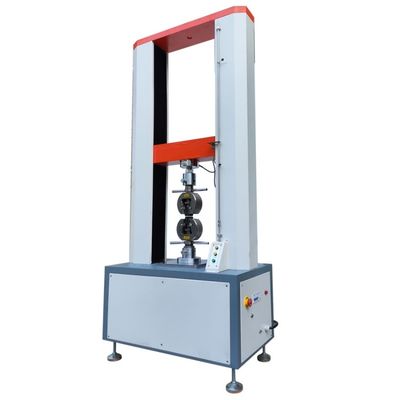

ASTM D1056 ISO 2439 Foam Compress Testing Machine 0-20KN JIS K6401 EN 10002 Sponge Compression Tester 2

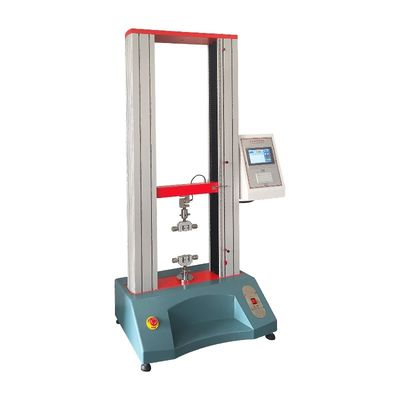

ASTM D1056 ISO 2439 Foam Compress Testing Machine 0-20KN JIS K6401 EN 10002 Sponge Compression Tester 3

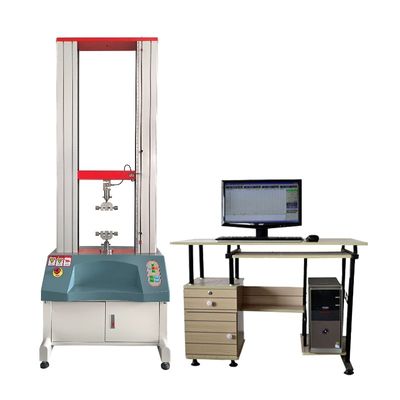

ASTM D1056 ISO 2439 Foam Compress Testing Machine 0-20KN JIS K6401 EN 10002 Sponge Compression Tester 4
ASTM D1056 ISO 2439 Foam Compress Testing Machine 0-20KN JIS K6401 EN 10002 Sponge Compression Tester 5
