Ceramic Glaze Magnetic Material Grinding Machine Lab Light Roller Ball Mill Inner Liner Drum Type Ball Mill

Ceramic Glaze Magnetic Material Grinding Machine Lab Light Roller Ball Mill Inner Liner Drum Type Ball Mill
Ceramic Glaze Magnetic Material Grinding Machine Lab Light Roller Ball Mill Inner Liner Drum Type Ball Mill Ceramic Glaze Magnetic Material Grinding Machine Lab Light Roller Ball Mill Inner Liner Drum Type Ball Mill Ceramic Glaze Magnetic Material Grinding Machine Lab Light Roller Ball Mill Inner Liner Drum Type Ball Mill Ceramic Glaze Magnetic Material Grinding Machine Lab Light Roller Ball Mill Inner Liner Drum Type Ball Mill Ceramic Glaze Magnetic Material Grinding Machine Lab Light Roller Ball Mill Inner Liner Drum Type Ball Mill Ceramic Glaze Magnetic Material Grinding Machine Lab Light Roller Ball Mill Inner Liner Drum Type Ball Mill

Large Image :  Ceramic Glaze Magnetic Material Grinding Machine Lab Light Roller Ball Mill Inner Liner Drum Type Ball Mill

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

Ceramic Glaze Magnetic Material Grinding Machine Lab Light Roller Ball Mill Inner Liner Drum Type Ball Mill

Description
Cylinder Volume: 30 L Maximum Capacity: 10.5 L
Output Particle Size: ≥300 Mesh Rotate Speed: 20~60 Rpm
Power Supply: 220V-50Hz Power: 0.75 KW
Feed Size: ≤10 Mm Protection Class: IP56
Voltage: 380 V, 220 V Inner Liner Options: Carbon Steel, Stainless Steel, Nylon, Corundum, Zirconia, PU, PTFE
Model No.: LR-A363-30L Grinding Type: Dry/Wet
Material Hardness: Various Discharge Type: Automatic
Noise Level: Low
Highlight:

ceramic glaze ball mill

,

lab roller ball mill

,

magnetic material grinding machine

Ceramic Glaze Magnetic Material Grinding Machine - Lab Light Roller Ball Mill with Inner Liner Drum
Product Overview
The inner liner drum type ball mill operates by rotating grinding media and materials within the cylinder. As the cylinder rotates, materials are lifted to a certain height and then fall along a parabolic path due to gravity. This action creates rapid rolling inside the grinding tank, producing strong shearing, impact, and compression forces that effectively crush, grind, disperse, and emulsify materials.
Key Features
  • Smooth operation with energy efficiency and low noise
  • Capable of both dry and wet grinding for materials of various hardness
  • Performs coarse and fine grinding as well as material mixing
  • Automatic discharge model separates materials and balls for convenient operation
  • Protective outer shell ensures high material purity with minimal contamination
  • Wear-resistant design with high grinding efficiency
  • Multiple inner lining options available: alloy steel, stainless steel, polyurethane, corundum ceramics, zirconium oxide
  • Available in capacities from 25L to 2000L to match production requirements
Technical Specifications
Model No. Cylinder Volume (L) Maximum Capacity (L) Rotate Speed (rpm) Power Supply (V/Hz) Power (KW) Optional Cylinder/Liners Feed Size (mm) Output Particle Size (mesh)
LR-A363-30L 30 10.5 20~60 220V-50Hz 0.75 Carbon Steel, Stainless Steel, Nylon, Corundum, Zirconia, PU, PTFE ≤10 ≥300
LR-A363-50L 50 17.5 20~50 220V-50Hz 1.5 Same as above ≤10 ≥300
LR-A363-100L 100 35 20~45 380V-50Hz 2.2 Same as above ≤20 ≥300
LR-A363-200L 200 70 20~40 380V-50Hz 4 Same as above ≤20 ≥300
LR-A363-300L 300 105 20~38 380V-50Hz 5.5 Same as above ≤20 ≥300
LR-A363-500L 500 175 20~36 380V-50Hz 7.5 Same as above ≤20 ≥300
LR-A363-1000L 1000 350 20~34 380V-50Hz 11 Same as above ≤30 ≥300
LR-A363-2000L 2000 700 20-34 380V-50Hz 22 Same as above ≤30 ≥300
Product Images

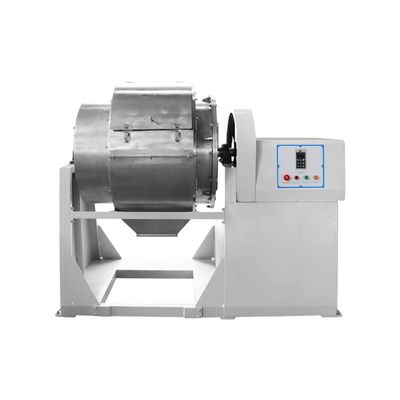

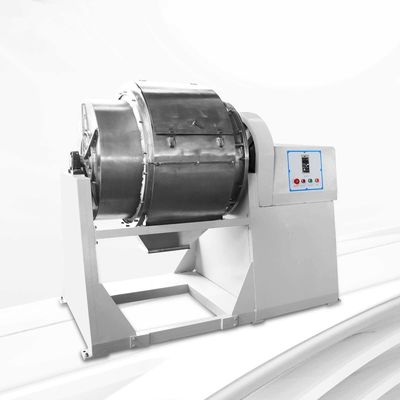

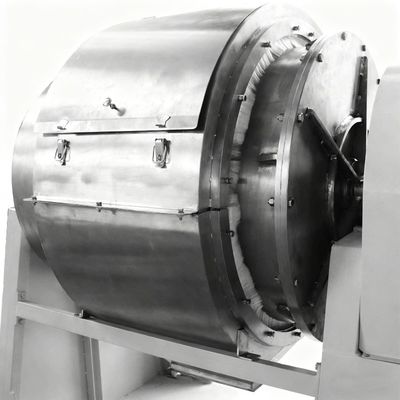

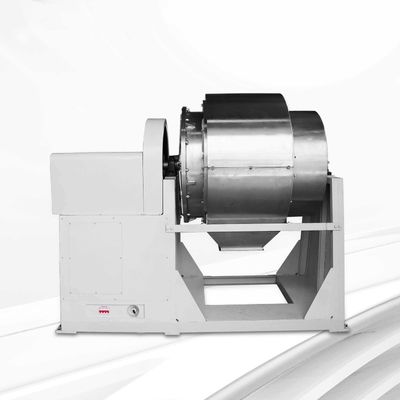

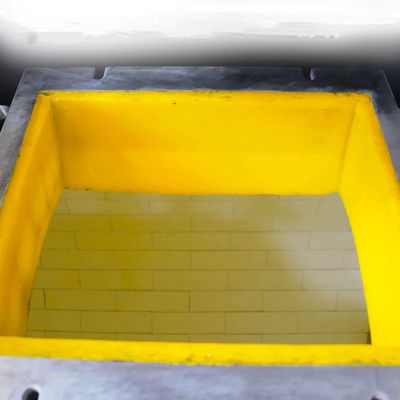

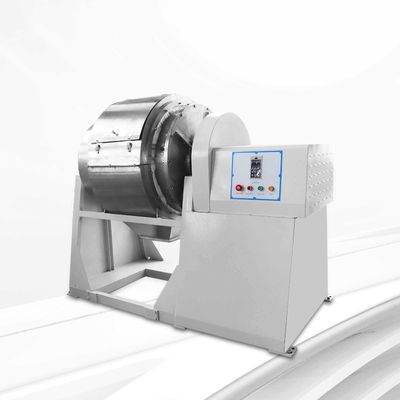

Ceramic Glaze Magnetic Material Grinding Machine Lab Light Roller Ball Mill Inner Liner Drum Type Ball Mill 0
Ceramic Glaze Magnetic Material Grinding Machine Lab Light Roller Ball Mill Inner Liner Drum Type Ball Mill 1
Ceramic Glaze Magnetic Material Grinding Machine Lab Light Roller Ball Mill Inner Liner Drum Type Ball Mill 2
Ceramic Glaze Magnetic Material Grinding Machine Lab Light Roller Ball Mill Inner Liner Drum Type Ball Mill 3
Ceramic Glaze Magnetic Material Grinding Machine Lab Light Roller Ball Mill Inner Liner Drum Type Ball Mill 4
Ceramic Glaze Magnetic Material Grinding Machine Lab Light Roller Ball Mill Inner Liner Drum Type Ball Mill 5
Ceramic Glaze Magnetic Material Grinding Machine Lab Light Roller Ball Mill Inner Liner Drum Type Ball Mill 6
