Alcohol Rubber Abrasion Resistance Tester for Mobile Phone Rubber Alcohol Friction Testing Machine Device

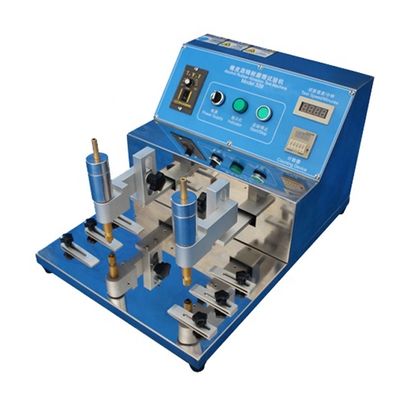

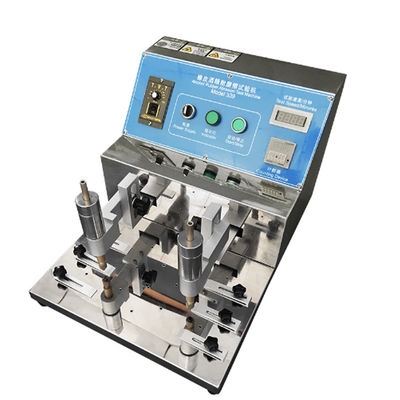

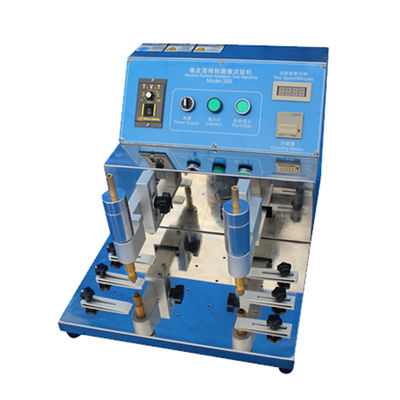

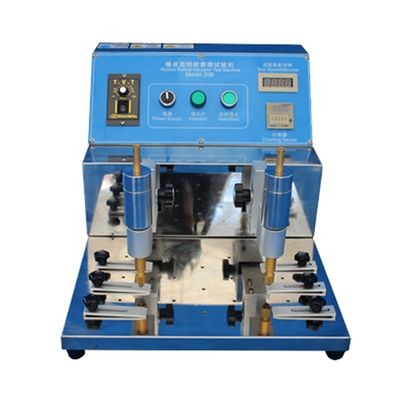

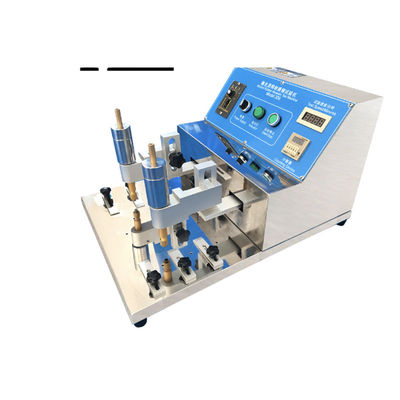

Large Image : Alcohol Rubber Abrasion Resistance Tester for Mobile Phone Rubber Alcohol Friction Testing Machine Device

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Alcohol Rubber Abrasion Resistance Tester for Mobile Phone Rubber Alcohol Friction Testing Machine Device

Description

Voltage:	220 V	Protection Class:	IP57
Size:	63x45x37 Cm	Friction Distance:	10mm - 50mm
Round Trip:	0-60 Times	Friction Counter:	0-99999999 Times
Host Material:	Taiwan Mirror	Friction Frequency:	Adjustable Speed
Test Rod Weight:	75 Grams ±1	Alcohol Friction Head:	11 For Two
Weights Included:	500g, 200g, 100g, 50g, 25g, 20g, 10g	Sandpaper Pieces:	2
Brush Included:	1	Tool Set:	1
Test Bar Adjustment:	Up And Down
Highlight:	IP57 Protection Alcohol Rubber Abrasion Resistance Tester , 220V Voltage Alcohol Friction Testing Machine , 1 Year Warranty Abrasion Resistance Tester

Alcohol Rubber Abrasion Resistance Tester for Mobile Phone Rubber Alcohol Friction Testing Machine Device

Use

The machine can be used for abrasion resistance tester of various kinds of non - conductor coating film

Alcohol Rubber Abrasion Resistance Tester for Mobile Phone Rubber Alcohol Friction Testing Machine Device

Technical parameters:

Host material: Taiwan mirror

Friction frequency: no segment adjustable speed frequency

Friction counter: adjustable 0-99999999 times

Round trip: 0-60 times (adjustable)

Friction distance: 10mm - 50mm can be adjusted freely

The test bar can adjust the required distance up and down

Size: 63x45x37 (LxWxH) cm

Alcohol Rubber Abrasion Resistance Tester for Mobile Phone Rubber Alcohol Friction Testing Machine Device

Standard accessories:

Test rod 75 grams plus or minus 1, 2

Alcohol friction head 11 for two

Weight 500g, 200g, 100g, 50g, 25g, 20g, 10g each

Sandpaper 2 pieces, brush 1, tool 1 set
