EN 12600 Double Tire Impact Testing Machine Glass Impact Resistance Performance Tester Dual-Tire Impact Test Device

Large Image : EN 12600 Double Tire Impact Testing Machine Glass Impact Resistance Performance Tester Dual-Tire Impact Test Device

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

EN 12600 Double Tire Impact Testing Machine Glass Impact Resistance Performance Tester Dual-Tire Impact Test Device

Description

Power:	1KW	Voltage:	220V
Protection Class:	Ip56	Impact Height:	0 - 1200 (mm)
Wing Size:	3.50-8	Impactor Weight:	50Kg ± 0.1Kg
Tire Brand:	German Vredestein Vacuum Tire	Tire Size:	3.50-8
Wing Material:	Aluminum Alloy	Sample Holder Size:	1910 × 847 (mm)
Power Supply:	220V	Impact Type:	Pendulum Impact
Secondary Impact Prevention:	Yes	Compliance Standards:	EN12600-2002, JC846-2007
Machine Type:	Double-tire Impactor
Highlight:	EN 12600 Standard Double Tire Impact Testing Machine , 50Kg Impact Weight Glass Impact Resistance Tester , 1910 × 847mm Sample Holder Dual-Tire Impact Test Device

EN 12600 Double Tire Impact Testing Machine Glass Impact Resistance Performance Tester Dual-Tire Impact Test Device

Product Description

Product Introduction

The double-tire impact testing machine is designed in accordance with the standards of EN12600-2002 "Building Glass - Pendulum Impact - Flat Glass Impact Test Method and Classification" and the technical requirements of JC846-2007 "Coated Glass". It is a specialized instrument used for testing the impact resistance performance of building safety glass.

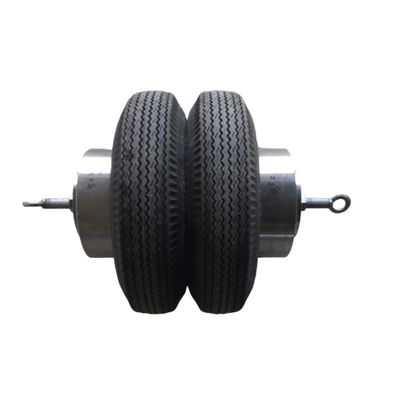

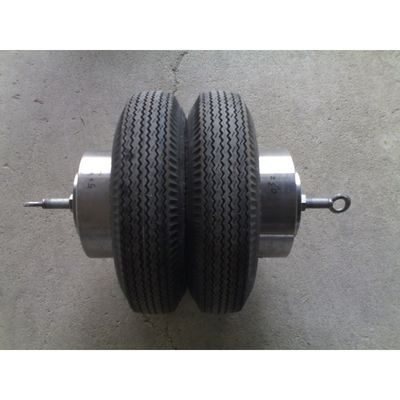

The machine consists of a sample support, a double-tire impactor, and a control frame.

The sample support needs to be installed against the wall, and the sample should be placed properly. The impactor can be lifted to the desired height through the control reel, and then the impactor can be released through the control switch to achieve pendulum impact.

This instrument has a secondary impact prevention device, which can effectively avoid the secondary impact of the impactor hitting the sample after it bounces back.

EN 12600 Double Tire Impact Testing Machine Glass Impact Resistance Performance Tester Dual-Tire Impact Test Device

Technical Specification

Weight of the double-tire impactor	50Kg ± 0.1Kg
Tire brand	German Vredestein vacuum tire
Tire size	3.50-8
Wing material	Aluminum alloy
Wing size	3.50-8
Inner diameter size of the sample holder	1910 × 847 (mm)
Impact height	0 - 1200 (mm)
Power supply	220V
Power	1KW
