Sign Angle Reflective Measuring Instrument Single Angle Reflective Mobile Retroreflectometer Movable Retroreflection Machine

Large Image : Sign Angle Reflective Measuring Instrument Single Angle Reflective Mobile Retroreflectometer Movable Retroreflection Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Sign Angle Reflective Measuring Instrument Single Angle Reflective Mobile Retroreflectometer Movable Retroreflection Machine

Description

Voltage:	220 V	Protection Class:	Ip56
Color Temperature:	2856±50K	Data Storage:	8G
Net Weight:	1.9kg	Overall Volume:	220mm × 246mm × 82mm
Retroreflective Coefficient:	0-2000mcd/(m²*lx)	Traffic Sign Angle:	Incidence Angle: -4°; Viewing Angle: 0.2°
High Visibility Angle:	Incidence Angle: 5°; Viewing Angle: 0.33°	Spot Diameter:	Φ30mm
Working Time:	>12 Hours	Incidence Angle:	-4° (Traffic Sign), 5° (High Visibility)
Observation Angle:	0.2° (Traffic Sign), 0.33° (High Visibility)	Light Source:	Standard A
Test Data Capacity:	100,000
Highlight:	IP56 Protection Retroreflectometer , 220V Voltage Reflective Measuring Instrument , 1.9kg Net Weight Retroreflection Machine

Sign Angle Reflective Measuring Instrument Single Angle Reflective Mobile Retroreflectometer Movable Retroreflection Machine

Product Description

Introduction

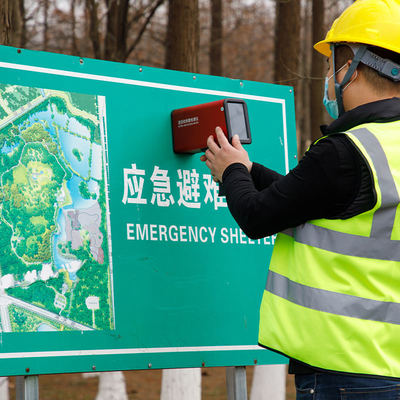

For Road traffic sign:
Incidence Angle: -4°
Observation Angle: 0.2°

For High visibility clothing:
Incidence Angle: 5°
Observation Angle:0.33°
Spot diameter:p30mm

Sign Angle Reflective Measuring Instrument Single Angle Reflective Mobile Retroreflectometer Movable Retroreflection Machine

Technical Specification

Retroreflective Coefficient	RL Measurement Range: 0-2000mcd/(m²·lx)
Traffic Sign Angle	Incidence Angle: -4°; Viewing Angle: 0.2°
High Visibility Clothing Angle	Incidence Angle: 5°; Viewing Angle: 0.33°
Color Temperature	2856±50K (Standard A Light Source)
Spot Diameter	Φ30mm
Working Time	>12 Hours
Data Storage Space	8G (Capable of storing over 100,000 test data)
Overall Volume	220mm × 246mm × 82mm
Net Weight	1.9kg
