Introduction

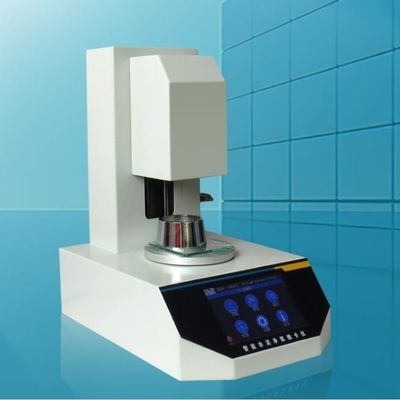

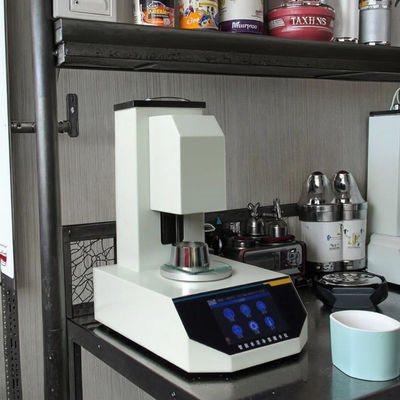

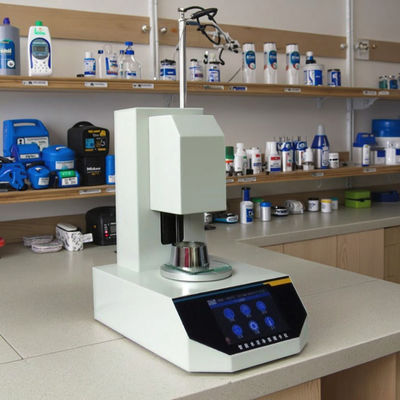

The intelligent Vicat Apparatus for cement paste is mainly used for the automatic determination of the standard consistency, water requirement and setting time of cement paste. It can also be used for the automatic determination of the initial and final setting time of gypsum. The automatic Vicat Apparatus adopts a fully automatic control program. The instrument automatically completes the processes of timing, release, drop distance measurement, automatic needle taking and experimental judgment. The entire test process complies with the standard requirements and is easy to operate.
Execution Standards
GB/T1346-2011 "Test Methods for Standard Consistency Water Requirement, Setting Time and Soundness of Cement"
GBT17669.4-1999 "Determination of Physical Properties of Pure Plaster Paste for Building"
Performance Features
1. 7-inch color capacitive touch screen for display and control.
2. Chinese display on the operation interface (English version available).
3. Real-time display of date and time.
4. Temperature display function with an accuracy of 0.1℃.
5. Timed screen saver function for energy conservation and environmental protection.
6. Automatic release of the falling component, allowing free fall without manual intervention.
7. Automatic timed measurement of the falling distance, eliminating the need for manual reading.
8. Automatic retrieval of the falling standard needle.
9. Equipped with a turntable for automatic rotation and adjustment of the experimental position.
10. Built-in large-capacity storage chip, capable of recording all process data from 10,000 tests.
11. Automatically generates experimental record curves for easy observation of performance changes at different times.
12. Automatic voice announcement function.
13. Comes with a printer for direct printing of test results.
Intelligent Cement Paste Vicat Instrument Cement Slurry Water Requirement Tester Smart Cement Paste Vicat Meter
