Hollow Glass Steady State U-value Tester Insulation Materials Steady-State Thermal Resistance Properties Test Machine

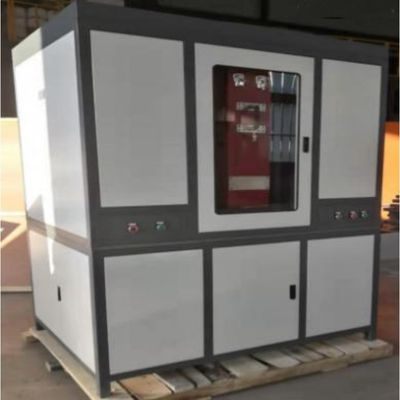

Large Image : Hollow Glass Steady State U-value Tester Insulation Materials Steady-State Thermal Resistance Properties Test Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Hollow Glass Steady State U-value Tester Insulation Materials Steady-State Thermal Resistance Properties Test Machine

Description

Power:	5kW	Voltage:	220V
Sample Size:	800mm × 800mm × H (10 - 120)mm	Heat Transfer Range:	(0.25 - 4.5) W/(m²*K)
Heat Transfer Accuracy:	±3%	Heat Transfer Repeatability:	±1%
Cold Plate Range:	(-5 - 50)℃	Hot Plate Range:	(10 - 80)℃
Temperature Resolution:	0.01℃	Laboratory Temperature:	(23 ± 2)℃
Laboratory Humidity:	(40 - 60)%RH	Test Pieces:	2 Identical Samples
Protection Class:	IP56	Power Supply:	220V, 5kW
Equipment Dimensions:	1580mm × 1200mm × 2300mm
Highlight:	800mm Sample Size Hollow Glass U-value Tester , 220V Power Supply Thermal Resistance Test Machine , 5kW Power Steady-State U-value Tester

Hollow Glass Steady State U-value Tester Insulation Materials Steady-State Thermal Resistance Properties Test Machine

Product Description

Product Description

The hollow glass steady-state U-value tester is used to measure the steady-state U-value of hollow glass. According to the requirements of the standard GB/T22476 "Calculation and Measurement of Steady-State U-Value (Heat Transfer Coefficient) of Hollow Glass", the steady-state U-value of hollow glass is measured by the protective heat plate method. The hollow glass steady-state U-value tester is applied to various manufacturers of hollow glass materials, relevant quality inspection departments and units, universities and research institutes, and other scientific research units and institutions.

According to standards

GB/T10294-2008 "Determination of Steady-State Thermal Resistance and Related Properties of Insulation Materials"

GB/T22476-2008 "Calculation and Measurement of Steady-State U-Value (Heat Transfer System) of Insulating Glass"

Hollow Glass Steady State U-value Tester Insulation Materials Steady-State Thermal Resistance Properties Test Machine

Technical Specification

Sample Size	800mm × 800mm × H (10 - 120)mm
Heat Transfer Coefficient Measurement Range	(0.25 - 4.5) W/(m²·K)
Heat Transfer Coefficient Measurement Accuracy	±3%
Heat Transfer Coefficient Measurement Repeatability	±1%
Cold Plate Temperature Measurement Range	(-5 - 50)℃
Hot Plate Temperature Measurement Range	(10 - 80)℃
Temperature Measurement Values of Heat Transfer Coefficient Tester	1. Cold plate set temperature: 2.5℃2. Hot plate set temperature: 17.5℃
Temperature Resolution	0.01℃
Laboratory Temperature	(23 ± 2)℃
Laboratory Humidity	(40 - 60)%RH
Power Supply Voltage & Power	220V, 5kW
Number of Test Pieces	2 identical samples
Laboratory Environment Requirements	1. Power supply voltage: 220V, three-phase five-wire system 2. Laboratory temperature: (23 ± 2)℃ 3. Laboratory humidity: (40 - 60)%RH 4. Main area occupied by experimental equipment: 1580mm × 1200mm × 2300mm 5. Additional space required for placing computer desk
