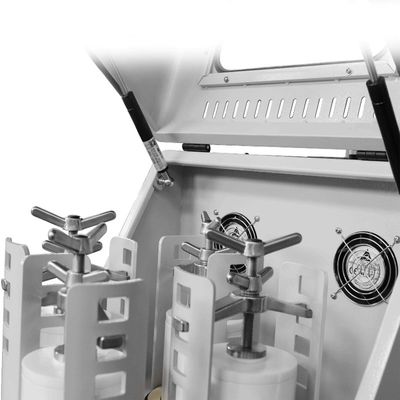

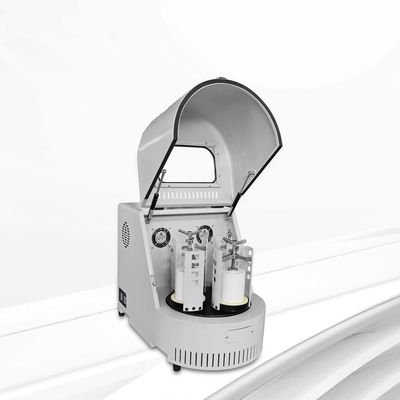

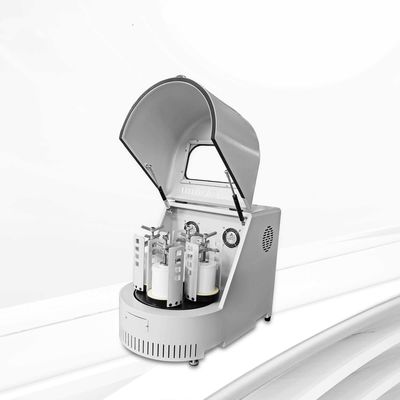

CE Planetary Ball Mill Machine Powder Milling Mixing Sample Grinding Mill Tester Vertical Semi-circular Planetary Ball Mill

Ball mill jar volume

0.05L-5L/pc, totally 0.2L-100L

Feeding particle size

soft ≤10mm, other material ≤3mm

Discharge particle size

Min. As 0.1um

Speed ratio (revolution: rotation)

1:2 (20-200L productive planetary ball mill can be 1:1.5)

Rotating speed

0-870rpm( normal), 0-1400rpm (high-speed)

Speed regulation

stepless speed regulation, 0.2rpm

Program control

Our ball mill adopts high-tech microcomputer chip control,it can runs by set up the forward and inversion alternately repeatedly
program(0-999 min) and forward, pause, inversion, pause, forward (0-999 min) alternating operation program, especially suitable
for cooling or intermittent operation.

Max. Continuous working time (full load)

72 hours( timer 0-9999h)

Motor power

main power is 0.55kw, 0.75kw, 1.5kw, 2.2kw, 3KW, 4KW as per the model and ball mill loading weight. The motor is made by pure
cupper.

Ball mill environments

Vacuum, inert gas, low temperature, high temperature
