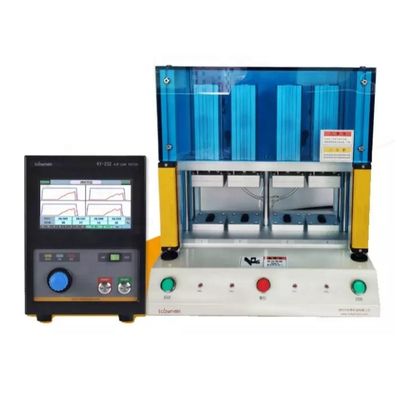

Mobile Phone Cato Waterproof test Instrument Apparatus Equipment Smart Bracelet Air Leak Detector Connector Air Tightness Tester
Description
Detection Method:
Leakage Testing Of Open Products (air Pressure Attenuation)
Test Pressure Unit:
KPa
Test Pressure Range:
±9999.99
Leakage Display Unit:
Pa
Leakage Display Range:
±999.999
Time Range:
0.1(S)~1999.0(S)
Channel Count:
8(1~8CH)
I/O Interface:
5 Input Signals / 6 Output Signals
USB Interface:
1 Pc
RS485 Interface:
1 Pc (Optional)
Connecting Piping:
Outside Diameter 6 Mm Pu Tube
Power Supply:
DC24V ±5%
Power Consumption:
40W
Dimensions:
D400*W210*H295(mm)
Weight:
About 10kg
Highlight:
4-Channel Air Tightness Tester
,
7-Inch Touchscreen Leak Detector
,
High Resolution 24-Bit Waterproof Test Instrument

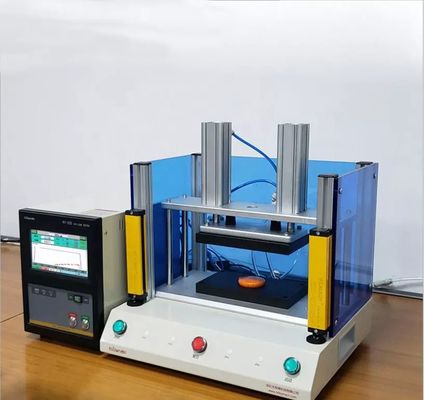

Mobile phone cato waterproof test instrument,smart bracelet Air leak Detector, connector Air tightness tester

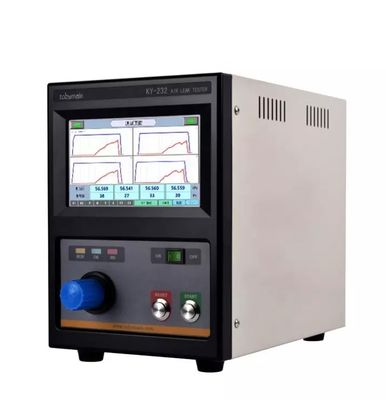

KY-232-4P series 4-channel air tightness tester adopts the principle of direct pressure, with air as the medium for leak detection of products, is a nondestructive testing instrument. The working principle is to inflate the test product to the specified air pressure, and then close the valve. After a period of stability, the change of air pressure during the detection period is measured, and the leakage amount is calculated by conversion. This instrument is widely used in the sealing test of parts of open products with its high precision and complete functions.

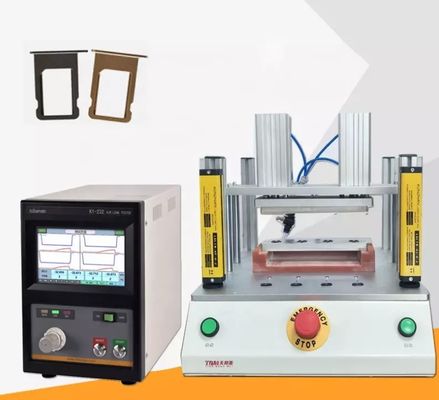

Mobile phone cato waterproof test instrument,smart bracelet Air leak Detector, connector Air tightness tester
Functional Features
1. 7-inch touchscreen display that switches between Chinese and English
2. High resolution 24-bit pressure-to-digital converter
3.2 to 4 channels independent ports, synchronous testing
4. Opens a product test mode
5.Large leak, small leak 2 section alarm function
6.XY axis plot shows the test pressure and leakage amount recorded
7. Tests a unit of pressure in kPa
8.Measure of leakage in Pa
9.8 Groups of channel parameters are saved and programs can be switched externally
10.USB flash drive history is stored, which can be queried, printed, deleted, and captured
11.PLC input-output I/O interface, which connects to automation equipment
12.RS485 communication port (optional)
13. Mini-printer interface (optional)
Application Area
Automobile industry, aerospace industry, home appliance industry, medical industry, bathroom industry, packaging industry, new energy industry

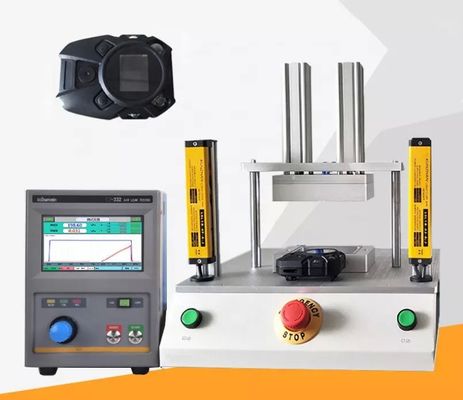

Mobile phone cato waterproof test instrument,smart bracelet Air leak Detector, connector Air tightness tester
Technical specification
Detection method
Leakage testing of open products (air pressure attenuation)
Test pressure display
Unit: kPa
Display Range:±9999.99
Display of leakage
Unit:Pa
Display Range:±999.999
time
0.1(S)~1999.0(S)
channel
8(1~8CH)
I/O Interface
5 input signals / 6 output signals
USB Interface
1 pc
RS485 Interface
1 pc(Optional)
Connecting piping
Outside diameter 6 mmpu tube
power supply
DC24V ±5%,
Power Consumption
40W
size
D400*W210*H295(mm)
Weight
about 10kg
Test gas source
0.4MPa to 1.0MPa clean and dry compressed air source
Temperature/Humidity
The operating temperature is 5~40℃. Below 80%HR, no condensation

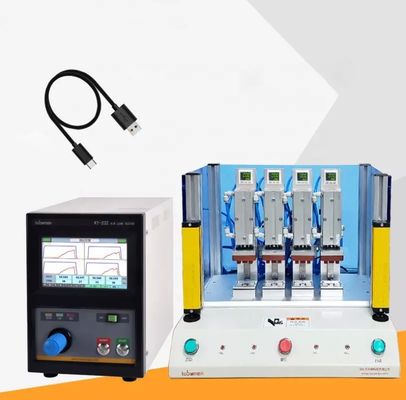

Mobile phone cato waterproof test instrument,smart bracelet Air leak Detector, connector Air tightness tester
Model selectionKY-232-4P-ABCEFor instance :KY-232-4P-2000
Choose items
Mark
Description
KY-232
Series
KY-232
Direct pressure type air tightness tester
P
Basic gas path
2P
2 channel (open product) air pressure detection air path
3P
3 channel (open product) air pressure detection air path
4P
4 channel (open product) air pressure detection air path
