IEC 60068 Tumbling Drop Testing Machine for Mobile Phone Drop Life Tester Drop Tumble Testing Equipment

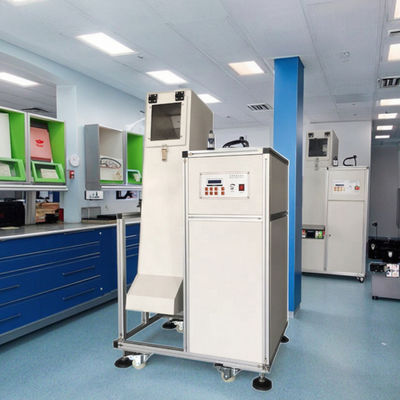

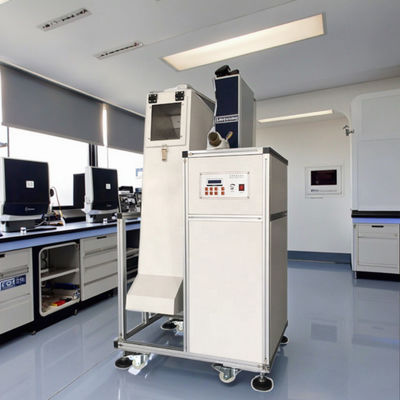

Large Image : IEC 60068 Tumbling Drop Testing Machine for Mobile Phone Drop Life Tester Drop Tumble Testing Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

IEC 60068 Tumbling Drop Testing Machine for Mobile Phone Drop Life Tester Drop Tumble Testing Equipment

Description

Voltage:	220 V	Protection Class:	Ip56
Machine Weight:	80kg	Test Times:	1-999999 (adjustable)
Specimen Weight:	5kg (Max)	Drum Height:	1000mm
Roller Width:	275mm	Rotation Speed:	5-20 Times/min
Power Supply:	AC 220V Or Specified	Applicable Standard:	IEC60068-2-32 GB/T2324.8
Highlight:	IEC 60068 compliant Tumbling Drop Testing Machine , IP56 protection Drop Life Tester , 220V power supply Drop Tumble Testing Equipment

IEC 60068 Tumbling Drop Testing Machine for Mobile Phone Drop Life Tester Drop Tumble Testing Equipment
Drum drop test machine is suitable for mobile phone, PDA, electronic dictionary, CD/MP3 continuous rotary (drop) test.

IEC 60068 Tumbling Drop Testing Machine for Mobile Phone Drop Life Tester Drop Tumble Testing Equipment

applicable standard	IEC60068-2-32 GB/T2324.8
Allowable specimen weight	5kg(Max)
The drum height	1000mm
The width of the roller	275mm
Rotation speed	5-20 times /min
Test times	1-999999 (adjustable)
The weight of the machine	about 80kg
Power supply	AC 220V or specified

IEC 60068 Tumbling Drop Testing Machine for Mobile Phone Drop Life Tester Drop Tumble Testing Equipment
