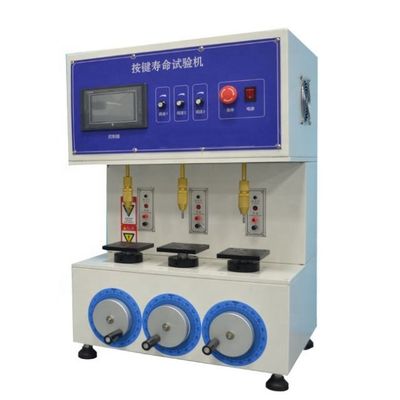

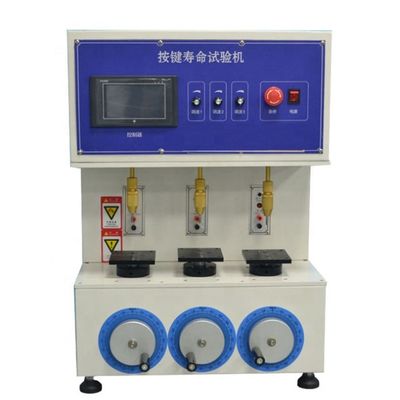

Three-axis Switch Key Life Tester Mobile Phone/Computer Key Life Testing Equipment Button Life Test Machine
Description
Voltage:
220 V
Power Supply:
AC220V 5A
Protection Class:
IP57
Machine Weight:
60Kg
Machine Size:
W500 * D420 * H760mm
Lifting Platform Stroke:
60mm
Test Speed:
0-300 Times/min
Strike Force:
0-500gf Adjustable
Test Head Stroke:
0-20mm
Counter Digits:
8 Bits
Test Products Count:
3PCS
Test Speed Range:
0-120 Optional
Shutdown Delay:
8 Seconds
Test Axis:
Three-axis
Test Types:
Durability And Conduction
Highlight:
IP57 Protection Key Life Tester
,
220V Power Supply Button Life Test Machine
,
60mm Lifting Platform Stroke Switch Key Life Tester
Three-axis Switch Key Life Tester Mobile Phone/Computer Key Life Testing Equipment Button Life Test Machine
Use
The machine is suitable for key switch, computer keyboard, conductive rubber, metal shrapnel key (commonly known as pot) or the same type of life aging test, USES the advanced programmer life test process control buttons, can conduct life test and conducting tests at the same time, key damage automatic stop, always "conduction" or object to be tested is always "no conduction, the machine will stop running in 8 seconds
Three-axis Switch Key Life Tester Mobile Phone/Computer Key Life Testing Equipment Button Life Test Machine
Equipment features:
1. Can simultaneously test the durability and conduction test of multiple groups of products;
2. High speed test, uniform speed, time to complete the test can be mastered;
3. The pressure can be adjusted to accurately control the strike force;
4. The number of strikes can be preset to stop at the preset value;
5. Intelligent shutdown function, always on or off, real-time monitoring
Three-axis Switch Key Life Tester Mobile Phone/Computer Key Life Testing Equipment Button Life Test Machine
Technical parameters:
1. Number of products tested: 3PCS
2. Counter: 8 bits, which can be used to register power off
