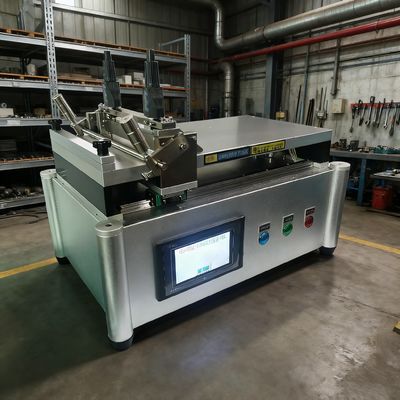

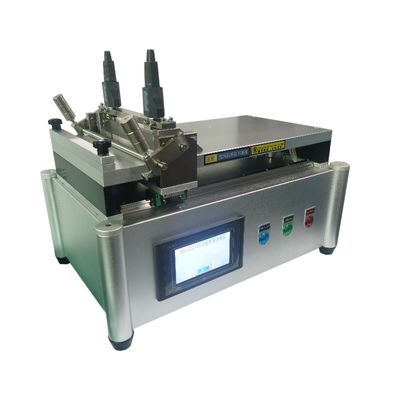

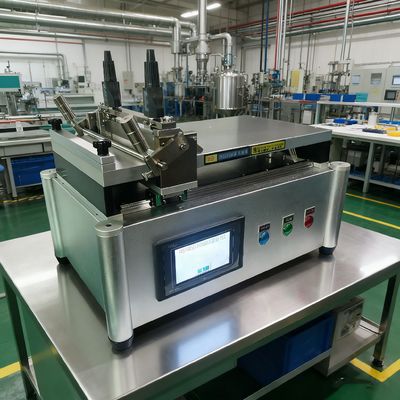

Laboratory Coating Equipment PLC Touch Screen Lab Heated Model Coating Apparatus Coating Test Machine

Laboratory Coating Equipment PLC Touch Screen Lab Heated Model Coating Apparatus Coating Test Machine
Laboratory Coating Equipment PLC Touch Screen Lab Heated Model Coating Apparatus Coating Test Machine Laboratory Coating Equipment PLC Touch Screen Lab Heated Model Coating Apparatus Coating Test Machine Laboratory Coating Equipment PLC Touch Screen Lab Heated Model Coating Apparatus Coating Test Machine Laboratory Coating Equipment PLC Touch Screen Lab Heated Model Coating Apparatus Coating Test Machine Laboratory Coating Equipment PLC Touch Screen Lab Heated Model Coating Apparatus Coating Test Machine Laboratory Coating Equipment PLC Touch Screen Lab Heated Model Coating Apparatus Coating Test Machine

Large Image :  Laboratory Coating Equipment PLC Touch Screen Lab Heated Model Coating Apparatus Coating Test Machine

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: ISO ASTM CE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: Wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 200
Contact Now

Laboratory Coating Equipment PLC Touch Screen Lab Heated Model Coating Apparatus Coating Test Machine

Description
Voltage: 110~220V Frequency: 50Hz
Power Standby: 48W Power Heating: 2000W
Coating Speed: 1-3 Meters/minute Coating Length: 10-300 Mm
Temperature Range: Room Temperature To 160℃ Coating Uniformity: ±4%
Coating Size: 200×300 Mm Coating Thickness: 0.005-5 Mm (wet Film)
Machine Dimensions: 550×350×350 Mm Net Weight: 28 Kg
Winding Rod Dimensions: Diameter 10 × Length 300 Mm Protection Class: IP56
Workbench Material: Aluminum Alloy + Glass
Highlight:

PLC touch screen coating machine

,

lab heated coating apparatus

,

paint testing equipment with warranty

Laboratory Coating Equipment PLC Touch Screen Lab Heated Model Coating Apparatus
Product Overview

This precision laboratory coating machine utilizes high-quality components to deliver consistent coating results across various materials. Designed for research institutions and universities, it ensures uniform coating through controlled speed and stable pressure.

Key Advantages
  • Produces smooth, flat, and flawless test samples repeatedly
  • Precision coating on diverse substrates including paper, plastic, metal, PVC, PET, fabric, and aluminum alloy plates
  • Eliminates human error through automated speed and pressure control
  • Special scraper design mimics production coating heads for consistent quality
  • 90° quick-open coating head for easy cleaning between experiments
Application Note: For low-viscosity, high-precision applications, the ribbon coating method provides superior results. For high-viscosity materials, the scraper coating method is more effective.
Technical Specifications
Control System Lonroy independently developed / PLC touch screen
Coating Method Knife and wire rod integrated (separate coating for each)
Knife Lifting Pull-up type (convenient for cleaning when separated)
Coating Speed Digitally set, 1-3 meters/minute
Length Setting Digitally set, 10-300 mm
Temperature Control Room temperature to 160℃ (constant temperature possible)
Leveling Device With leveling rods; material is flattened before coating
Workbench Material Aluminum alloy + glass (removable)
Coating Uniformity ±4% (depending on material flatness)
Coating Size 200×300 mm
Coating Thickness 0.005-5 mm (wet film)
Machine Dimensions 550 × 350 × 350 mm (L×W×H)
Machine Weight 28 kg (net weight)
Power Source 110~220V, 50Hz
Power Consumption 48W (standby); 2000W (heating)
Laboratory Coating Equipment PLC Touch Screen Lab Heated Model Coating Apparatus Coating Test Machine 0
Laboratory Coating Equipment PLC Touch Screen Lab Heated Model Coating Apparatus Coating Test Machine 1
