Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: ISO ASTM CE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: Wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 200
Contact Now

EN 60529 UL 1278 Standard Testing Finger Articulated Test Finger Standard Protection Level Testing Equipment

Description
Type: Testing Machine Protection Class: Ip56
Voltage: 220 V Finger Diameter: 12mm
Finger Length: 80mm Baffle Diameter: 50mm
Baffle Length: 100mm Reference Standard: GB4706.1-2005, IEC61032:1997
Test Apparatus: IEC61032 Test Apparatus B Compliance Standards: GB4706, GB2099, GB4943, GB4208IPX2, GB3883, IEC950, IEC60884, IEC60335, GB/T16842, UL507, EN60529, UL1278
Highlight:

EN 60529 test finger

,

UL 1278 articulated probe

,

standard protection testing equipment

EN 60529 UL 1278 Standard Testing Finger Articulated Test Finger Standard Protection Level Testing Equipment
Product Description
This articulated test finger is designed for verifying basic protection against human contact with dangerous components, specifically for preventing finger contact with hazardous areas.
Category
Contact Test Apparatus
Introduction
The IEC61032 test apparatus B is used for protection tests to verify safety against human contact with dangerous components. This articulated test finger specifically evaluates protection against finger contact with hazardous areas.
Standard Compliance
This testing equipment complies with multiple international safety standards including:
  • GB4706, GB2099, GB4943, GB4208IPX2
  • GB3883, IEC61032 test apparatus B
  • IEC950, IEC60884, IEC60335
  • GB/T16842 test apparatus B
  • UL507, EN60529, UL1278
Source: GB/T16842-2016 Test Apparatus for Protection of Enclosures against Human and Equipment
Technical Specifications
Diameter of the curved finger 12mm
Length of the curved finger 80mm (total length of three sections)
Diameter of the baffle 50mm
Length of the baffle 100mm
Reference standard Article 8.1.1 of GB4706.1-2005, IEC61032:1997

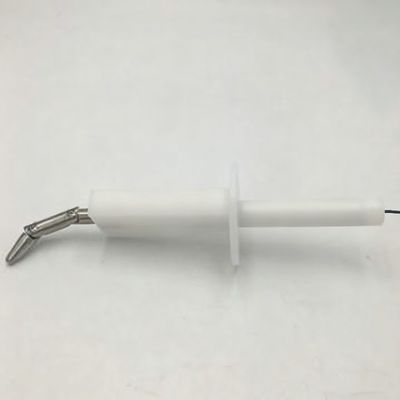

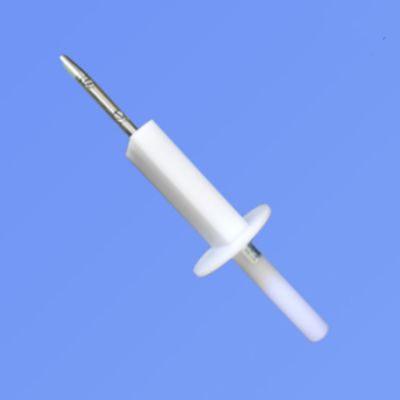

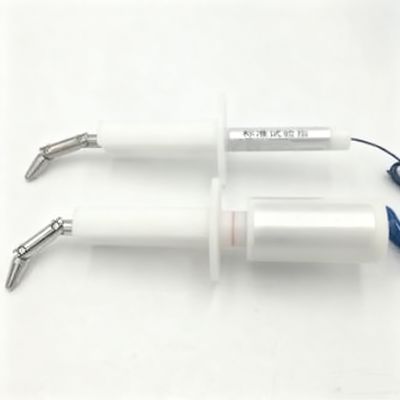

Product Images
EN 60529 UL 1278 Standard Testing Finger Articulated Test Finger Standard Protection Level Testing Equipment 0
EN 60529 UL 1278 Standard Testing Finger Articulated Test Finger Standard Protection Level Testing Equipment 1
EN 60529 UL 1278 Standard Testing Finger Articulated Test Finger Standard Protection Level Testing Equipment 2
EN 60529 UL 1278 Standard Testing Finger Articulated Test Finger Standard Protection Level Testing Equipment 3
EN 60529 UL 1278 Standard Testing Finger Articulated Test Finger Standard Protection Level Testing Equipment 4
