IEC 61032 ASTM F963 Test Probe B 19, Stainless Steel Child Test Finger Kit for Electrical Safety Testing

Large Image : IEC 61032 ASTM F963 Test Probe B 19, Stainless Steel Child Test Finger Kit for Electrical Safety Testing

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

IEC 61032 ASTM F963 Test Probe B 19, Stainless Steel Child Test Finger Kit for Electrical Safety Testing

Description

Type:	Test Probe 19	Knurled Finger Diameter:	5.6mm
Knurled Finger Length:	44mm	Head Radius:	2.8mm
Fist Handle Length:	101.6mm	Second Handle Diameter:	25.4mm
Second Handle Length:	464.3mm	Material:	Stainless Steel
Compliance Standard:	IEC61032-1997, EN71, ASTM F963, UL	Simulated Age Range:	0-36 Months
Application:	Electrical Safety Testing	Probe Type:	Child Test Finger
Test Purpose:	Prevent Electric Shock	Probe Design:	Knurled Finger With Handles
Usage:	Household And Similar Electrical
Highlight:	stainless steel child test finger , IEC 61032 test probe B 19 , electrical safety testing kit

IEC 61032 ASTM F963 Test Probe B 19, Stainless Steel Child Test Finger Kit for Electrical Safety Testing

Product Description

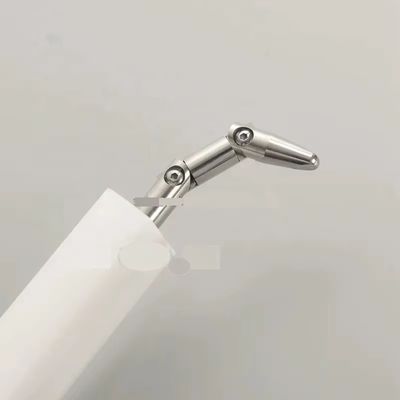

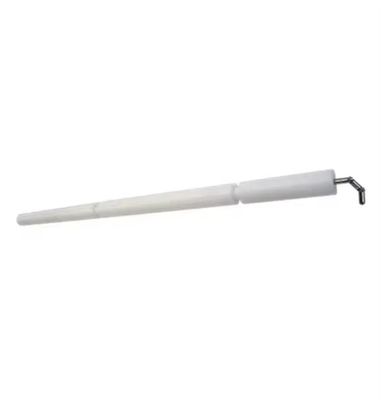

IEC 61032 Child Test Finger Probe 19 ASTM F963 is designed for electrical safety testing according to international standards.

Complies with: IEC61032-1997 Fig12 and Fig.13 / EN71 ASTM F963 and UL standards
Essential appliance for preventing electric shock in household and similar electrical applications
Simulates access to hazardous parts by children aged 0-36 months

Specifications

Feature	Measurement
Knurled Finger Diameter	5.6mm
Knurled Finger Length	44mm
Head Radius	2.8mm
The Fist Handle Length	101.6mm
The Second Handle Diameter	25.4mm
The Second Handle Length	464.3mm
