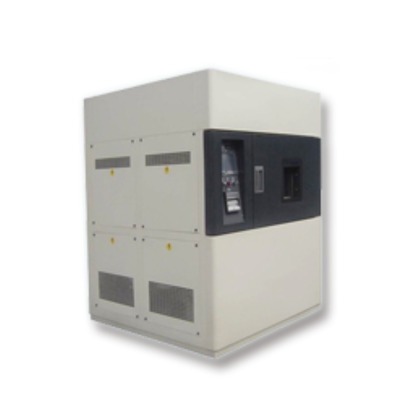

ISO 4892 ASTM D4355 Geotextile Solar Radiation Testing Machine with SUS304 Stainless Steel for Light Resistance and Weathering Tests

Large Image : ISO 4892 ASTM D4355 Geotextile Solar Radiation Testing Machine with SUS304 Stainless Steel for Light Resistance and Weathering Tests

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ISO 4892 ASTM D4355 Geotextile Solar Radiation Testing Machine with SUS304 Stainless Steel for Light Resistance and Weathering Tests

Description

Power:	Approximately 13 KW	Voltage:	380 V
Protection Class:	Ip56	Overall Size:	100mm110mm170mm
Power Supply:	380 ± 10% V, 50 ± 1% Hz	Temperature Deviation:	≤ ±5℃
Xenon Lamp Power:	2.5KW	Xenon Lamp Lifespan:	800 - 1000 Hours
Xenon Lamp Wavelength:	280 - 800nm	Xenon Lamp Radiation:	550W/m²
Trigger Power:	2.5KW	Working Voltage:	DC 220V
Blackboard Temperature:	(Room Temperature + 100°C) - 65°C ± 3°C	Temperature Fluctuation:	±0.5°C
Temperature Uniformity:	≤ ±3℃
Highlight:	ISO 4892 ASTM D4355 Geotextile Solar Radiation Testing Machine , SUS304 Stainless Steel Geosynthetic Light Resistance Test Equipment , Solar Radiation Weathering Testing Machine

ISO 4892 ASTM D4355 Geotextile Solar Radiation and Weathering Testing Machine

Geosynthetic Light Resistance Test Equipment

This specialized testing equipment evaluates the light resistance, weather resistance, and photo-aging properties of geosynthetic materials under controlled environmental conditions.

Application Scope

The geotextile solar radiation and weathering testing machine performs light resistance, weather resistance, and photo-aging tests on various geosynthetic materials. It simulates natural environmental conditions by precisely controlling light irradiance, temperature, humidity, rain cycles, and light-dark alternation.

Compliance Standards

ISO 4892-2, GB/T 16422.2, ASTM D4355, JTG E50 T1163

Testing Principle

The instrument quantifies and controls light intensity, temperature, humidity, and rain conditions to examine material performance changes. Key features include:

Online light intensity control with automatic monitoring and compensation
Closed-loop temperature and humidity control systems
Black panel temperature loop control
Multi-point adjustment capabilities

Instrument Features

Imported components with modular design for stable performance
Microcomputer control with LCD touch screen and intuitive interface
Digital closed-loop irradiance control with automatic power compensation
High-precision Japanese irradiance sensor
Nationally certified heat filter with proper spectral characteristics
Swiss-made temperature and humidity sensors
Durable construction with stainless steel inner chamber
Advanced refrigeration system with dynamic temperature balance

Safety Protection Systems

Xenon lamp protection with automatic shutdown
Water shortage protection with alarm
Power phase protection
Independent chamber temperature protection
Compressor thermal overload protection
Radiation protection when door opens

Technical Specifications

Parameter	Specification
Xenon Lamp Power & Lifespan	2.5KW (air-cooled long arc xenon lamp); 800-1000 hours
Xenon Lamp Wavelength	280-800nm
Xenon Lamp Radiation Intensity	550W/m²
Blackboard Temperature Range	(Room temperature + 100°C) - 65°C ± 3°C
Humidity Range	50%RH to 85%RH ± 5%R.H
Sample Size	75×150 mm per piece
Laboratory Size	500×600×500 mm (D×W×H)
Overall Size	1000×1100×1700 mm (D×W×H)
Power Supply	380 ± 10% V, 50 ± 1% Hz
Total Power	Approximately 13 KW
