SATRA TM34 ASTM D2099 Leather Dynamic Waterproof Tester with LCD Counter and 90W Power for Water Penetration Index Testing

Large Image : SATRA TM34 ASTM D2099 Leather Dynamic Waterproof Tester with LCD Counter and 90W Power for Water Penetration Index Testing

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-A218

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

SATRA TM34 ASTM D2099 Leather Dynamic Waterproof Tester with LCD Counter and 90W Power for Water Penetration Index Testing

Description

Product Name:	Leather Dynamic Waterproof Tester	Customization:	Available
Warranty:	1 Year	Size (Dimensions):	494545 Cm
Power:	90W	Weight:	55 Kilograms
Highlight:	SATRA TM34 leather waterproof tester , ASTM D2099 water penetration test device , ALCA E56 dynamic waterproof tester

SATRA TM34 ASTM D2099 Leather Dynamic Waterproof Tester ALCA E56 Water Penetration Index Test Device

Product Overview

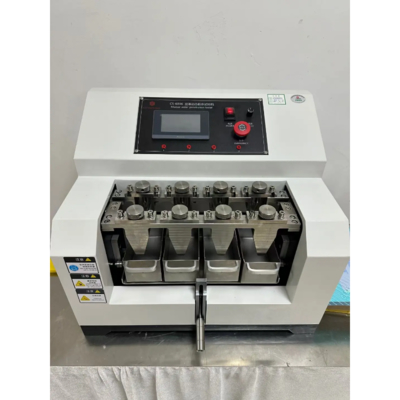

The SATRA TM34 Leather Dynamic Waterproof Tester is a precision instrument designed to evaluate the water penetration resistance of leather materials according to international standards.

Testing Methodology

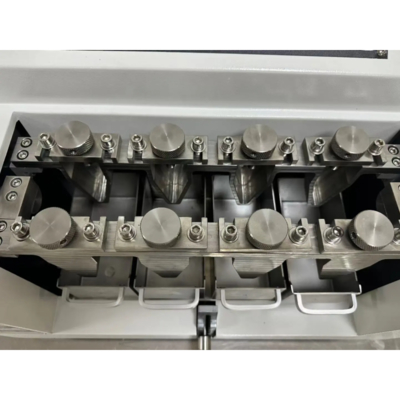

This testing method involves placing clean steel balls inside the material specimen. Both the impedance of the steel balls and their total weight must comply with regulatory requirements. Under these controlled conditions, the material's resistance to water penetration index is accurately measured.

The instrument features advanced sensing elements and specialized design. During testing, the counting automatically stops as soon as water penetrates the material interior, or when the preset test duration is reached, providing precise measurement results.

Compliance Standards

Compliant with SATRA TM34, ASTM D2099, and ALCA E56 international testing standards for leather waterproof performance evaluation.

Technical Specifications

Parameter	Specification
Reference Standard	ASTM D2099
Number of Test Pieces	1 to 4 pieces
Test Piece Size	4" × 4" ± 0.125 (101.6 × 101.6 ± 3.2mm)
Load	Total weight of steel balls: 135 ± 5 grams
Test Displacement	30 ± 1°
Speed	90° ± 5 cpm (cycles per minute)
Counter	LCD, 0 - 999999 or touchscreen control
Power	90W
Dimensions	49 × 45 × 45 cm
Weight	55 kilograms
