ISO 2493 5628 Paper Cardboard Crease Stiffness Testing Machine Paperboard Tensile Strength Tester

ISO 2493 5628 Paper Cardboard Crease Stiffness Testing Machine Paperboard Tensile Strength Tester
ISO 2493 5628 Paper Cardboard Crease Stiffness Testing Machine Paperboard Tensile Strength Tester ISO 2493 5628 Paper Cardboard Crease Stiffness Testing Machine Paperboard Tensile Strength Tester ISO 2493 5628 Paper Cardboard Crease Stiffness Testing Machine Paperboard Tensile Strength Tester

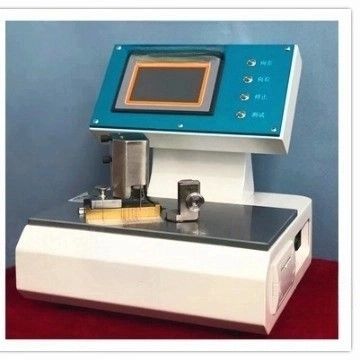

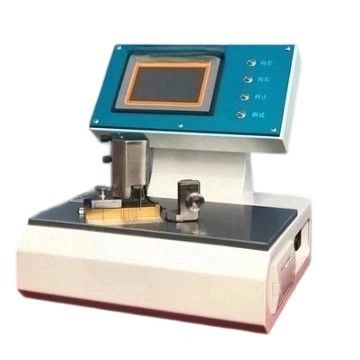

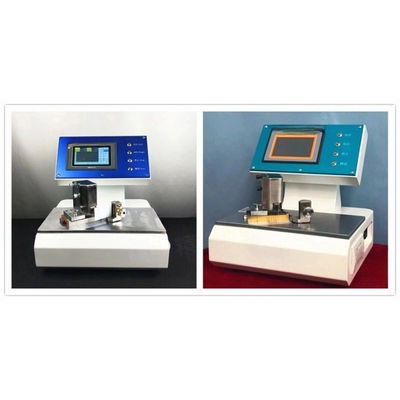

Large Image :  ISO 2493 5628 Paper Cardboard Crease Stiffness Testing Machine Paperboard Tensile Strength Tester

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: ISO ASTM CE
Model Number: LR-A058
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 200
Contact Now

ISO 2493 5628 Paper Cardboard Crease Stiffness Testing Machine Paperboard Tensile Strength Tester

Description
Sampling Size Accuracy: Error ≤ 0.1 Mm Dimensions: Length × Width × Height 350 × 100 × 130 Mm
Weight: Approximately 9 Kg Board Stiffness Test Sample: 70×38 Mm

ISO 2493 5628 Paper Cardboard Crease Stiffness Testing Machine Paperboard Tensile Strength Tester

Instroduction

The paper and board crease stiffness tester is used to measure the bending stiffness of various types of paper, paperboard, films, plastics, metal sheets and other composite sheet-like materials. It is applicable to the paper-making, packaging, printing industries, as well as related research institutions and quality inspection departments.

Tensile strength test: Applicable for testing the bending tensile strength of paper, cardboard, film, plastic film and thin sheets.

Crease stiffness test: Applicable for testing the crease indentation stiffness of various packaging boxes such as color boxes and toothpaste boxes.


Compliant with standards

GB/T 22364, GB/T 2679.3 "Test for Tensile Properties of Paper and Paperboard", ISO 2493 "Determination of Tensile Properties of Paper and Paperboard", ISO 5628 "Static Bending Tensile Properties of Paper and Paperboard - General Principles"


Sampling device technical parameters

Sampling size (Cardboard tensile strength sample)

70 × 38 ± 0.1 mm

Sampling size (Wrinkle resistance test sample)

38 × 36 mm

Sampling size accuracy

Error ≤ 0.1 mm

Environmental conditions

Temperature: 20 - 40℃; Relative humidity: < 85%

Dimensions

Length × Width × Height = 350 × 100 × 130 mm

Weight

Approximately 9 kg


Technical Specification

Bending force range

15 - 10000 mN; Resolution: 0.1 mN

Bending length

50 ± 0.1 mm, 25 ± 0.1 mm, 10 ± 0.1 mm, etc.

Bending angle

1 - 92°, adjustable in any degree

Bending rate

200° ± 20° per minute (adjustable)

Bending time

2 to 50 seconds

Crease stiffness test sample

38×36 mm

Board stiffness test sample

70×38 mm

Measurement of thickness

0.01 to 5.0 mm

Sampling thickness

0.1 - 1.5 mm

Parallelism of the two long sides

≤ 0.015 mm
