LRSL-01 Medium-Temperature Reburning Test Furnace Reheating Linear Change Box

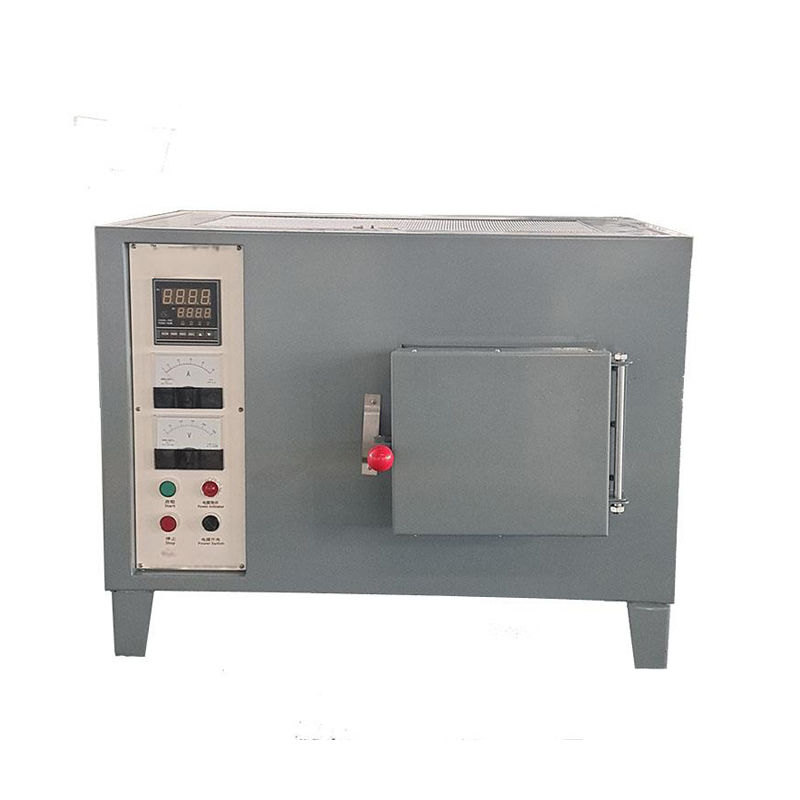

Large Image : LRSL-01 Medium-Temperature Reburning Test Furnace Reheating Linear Change Box

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LRSL-01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

LRSL-01 Medium-Temperature Reburning Test Furnace Reheating Linear Change Box

Description

Power Supply:	380 V, 50 Hz	Chamber Dimensions:	510 × 250 × 210 Mm
Heating Rate:	0-10 °C/min	Max. Temperature:	1400 °C
Warranty:	1 Year	Certification:	Includes Calibration Certification
Highlight:	Reheating Linear Change Box LRSL-01 , Reburning Test Furnace LRSL-01 , Medium-Temperature Reburning Test Furnace

LRSL-01 Medium-Temperature Reburning Test Furnace Reheating Linear Change Box

1.Description:

It is mainly used for detecting the re-crenulation line change performance of refractory materials. It can also be used as a box-type electric furnace for material sintering, melting and heat treatment.

2.Configuration:

Includes one main electric furnace body, one S-type thermocouple, and one set of silicon carbide rods.

3.Technical Parameter

Feature / Parameter	Specification / Description
Design	Integrated controller and furnace body
Temperature Sensor	Type S (Platinum Rhodium-Platinum) thermocouple
Temperature Controller	Microcomputer programmable controller
	Multi-segment heating curves
	AI PID control
	Automatic heating, soaking, and shutdown
Atmosphere	Oxidizing atmosphere
Thermocouple Protection	Breakage protection: System auto-resets to zero and alarms on failure
Electrical Protection	Current limiting & short circuit protection
Furnace Lining	Polycrystalline mullite fiber
	High temperature resistance
	Low heat capacity
	Fast heating rate
	Excellent insulation performance
Max. Temperature	1400 °C
Heating Rate	0-10 °C/min
Temperature Control Accuracy	±1 °C
Chamber Dimensions (L×W×H)	510 × 250 × 210 mm
	(Custom sizes available)
Max. Zone Temperature Difference	< ±5 °C (dual-zone)
Power Supply	380 V, 50 Hz
