BGD 559 Lab Multi Angle Spectrophotometer Colorimeter

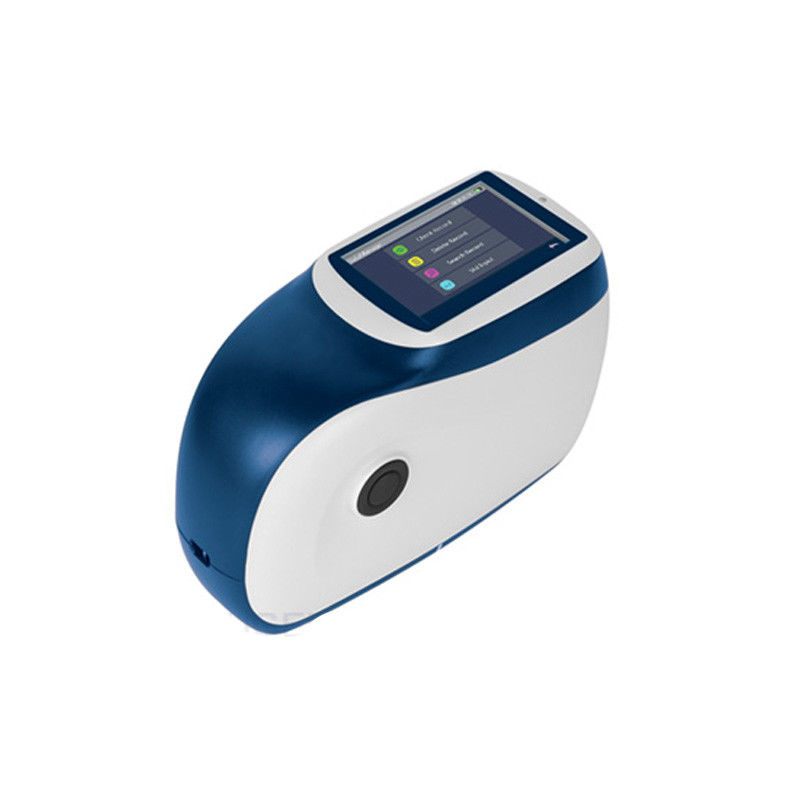

BGD 559 Multi-Angle Spectrophotometer Colorimeter

1.Description

      BGD 559 Multi-Angle Spectrophotometer provides accurate and consistent color measurement for metalllics, pearlescents and other complex special effect finished products. It adopts industrial-grade MCU and is equipped with 3 or 5 measuring angles. Under the superior performance of the optical measurement system, the instrument has excellent performance in multi-angle chromatic aberration measurement, even in the curved surface, but also has a high measurement accuracy and stability.
Features

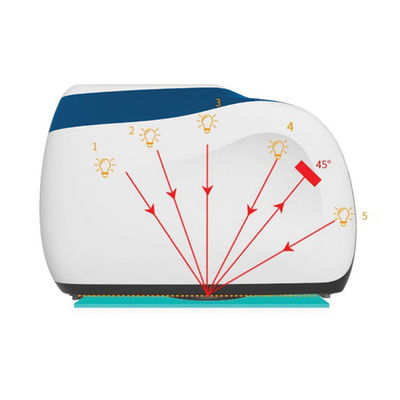

* Multi-angle measurement: Adopt 3 or 5 illumination sources, 1 receivers to measure multi measure- ment angles at the same time.

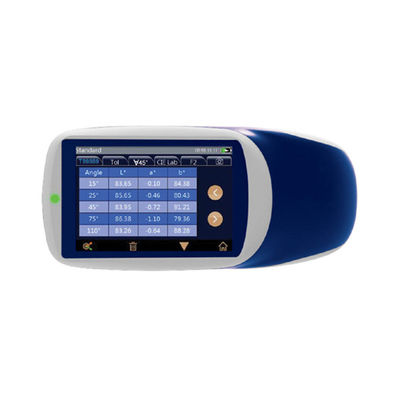

* More intuitive display: Touch screen can display all angle measurement results, more intuitive view of the comprehensive data.
* 256 Image Element Double Array CMOS Image Sensor: The higher optical resolution ensures the measuring speed, accuracy, stability and consistency of the instrument. The core technology makes it as the same platform with international standards and complete compatibility.
* Full spectrum LED light source with blue enhancement: It ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of LED in a specific band, and ensures the accuracy of instrument measurement results and low cost maintenance.
* Concave grating spectrophotometric technology: Higher resolution and more accurate color measurement.

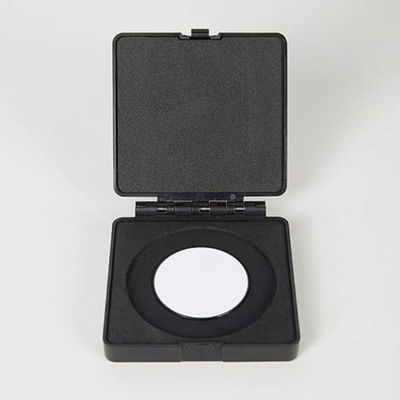

* Professional-grade white board: High hardness in the surface, stable optical performance.
* Higher quality: Industrial grade real-time processing MCU, Bluetooth 5.0 transferring more stable and reliable.

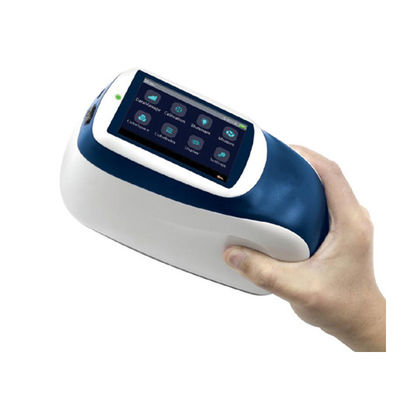

* Ergonomics Novel and fashionable appearance design: The instrument is easy to operate, and the hand holding position and the measurement button are well-designed, which can meet different holding habits, smooth and fine surface, from the high-precision appearance treatment process.

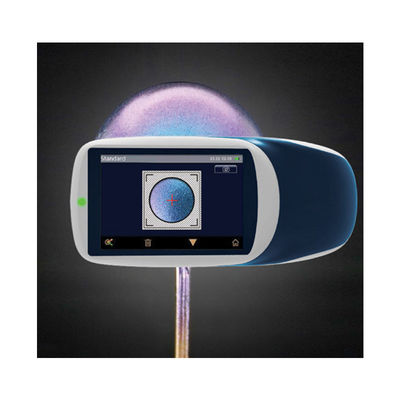

* Built-in color camera positioning, can accurately judge the object measured position, and improve the measurement efficiency and accuracy.
* Multiple color measurement space, multiple observation light sources, which can meet the special measurement demand under different measurement conditions.
* Easily analyze data: The screen can intuitively display spectrum/data, sample chromaticity value, color difference value/figure, pass/fail results, color simulation, sample effect value, effect difference value and other data, convenient to view while also greatly improve the user's work efficiency.
* Conform to standards: ASTM D2244, E308, E1164, E2194, E2539; DIN 5033, 5036, 6174, 6175-1, 6175-2; ISO 7724, 11664-4; SAE J 1545BGD

2. Technical Parameter.
