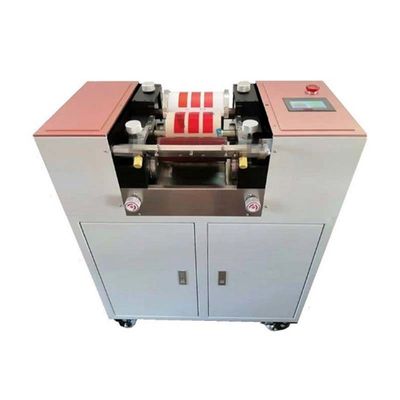

Flexo Ink Proofer Machine 0 - 80m/min Printing Speed With LED UV Drying Function

Flexo Ink Proofer With LED UV Drying Function

1. Introduction

Applicable objects	monochrome proofing (such as color matching, testing, etc.)
Input power	220V, 50/60Hz
Power	400 w(UV-LED:500W,Mercury UV light:2000W)
Ink	dropper ink
Proofing material thickness	0.01-2mm (bendable material)
Proofing material size	170x210mm
Printing area	120x148mm
Plate area	150X 160mm
Plate thickness	DUPONT: 1.14mm thick flexible plate glue 0.38mm
Plate roller and screen roller pressure	adjustable by 2mm soil, with scale to show the pressure
Plate roller and press pressure	can be adjusted by 2mm soil, there is scale to show the pressure
Printing speed adjustable	0-80 m/min
Ceramic roller specifications	(USA) 70x210mm
Number of ceramic roller lines	standard 600LPI (70-1200 lines can be customized),BCM: 1.6-5.3
Suitable for	flexographic water - based, UV ink, lithography, letterpress or UV ink
Suitable proofing materials	paper, plastic film, non-woven cloth, napkin, gold and silver card paper, etc
Dimensions (length x width x height)	400x800x950mm
Instrument net weight	130KG
UV fixing machine drying equipment optional
The instrument can be coated, solid color, dot pattern proofing
Blade pressure	pneumatic, pressure balance can be adjusted at both ends.The constant pressure design of the scraper is conducive to the repeatability of printing color and uniform standard.

2. Unique features of the instrument

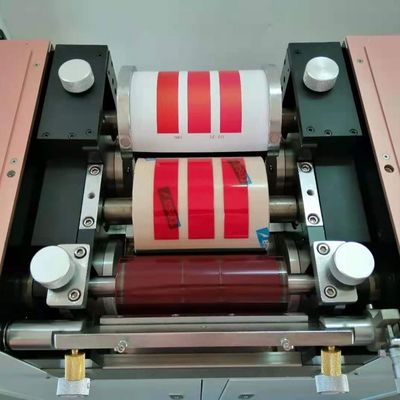

1. After the ceramic roller rotates the ink evenly, the printing material and the printing plate cylinder start and rotate synchronously for two weeks to complete the proofing work. The ceramic roller and the printing material cylinder operate synchronously with the printing plate cylinder to ensure the proofing quality.
2. Scraper, ceramic roller, plate drum, printing drum four structures can be individually adjusted around the pressure, flexible adjustment;
3. The screen roller and scraper are easy to disassemble and install
4. Large drum structure, printing material installation, plate installation and cleaning plate is simple and convenient.
