उत्पाद विवरण:
|
| वोल्टेज: | 220 वी, 380 वी | संरक्षण वर्ग: | IP56 |
|---|---|---|---|
| भंडारण तापमान: | -20 ℃ से + 70 ℃ | कार्य -तापमान: | 0 ℃ से 40 ℃ |
| पर्यावरणीय आर्द्रता: | ≤85% | स्थिरता: | ± 0.2%एफएस |
| वोल्टेज सटीकता: | ± 0.1%एफएस या%0.5% | वर्तमान परिशुद्धता: | ± 0.1%एफएस या%0.5% |
| संकल्प: | 16-बिट विज्ञापन | समय संकल्प: | 0.1 सेकंड |
| समय -समय पर सटीकता: | ± 10 सेकंड/24 घंटे | चरण काल सीमा: | 0.1 सेकंड - 1000 घंटे |
| मंच सेटिंग सीमा: | 1 - 200 चरण | डेटा रिकॉर्डिंग अंतराल: | ≥100ms |
| शीतलन विधि: | हवा का | ||
| प्रमुखता देना: | 18V300AC3000AC Battery Cycle Life Tester,IP56 Protection Battery Testing Machine,220V/380V Voltage Module Batteries Testing Machine |
||

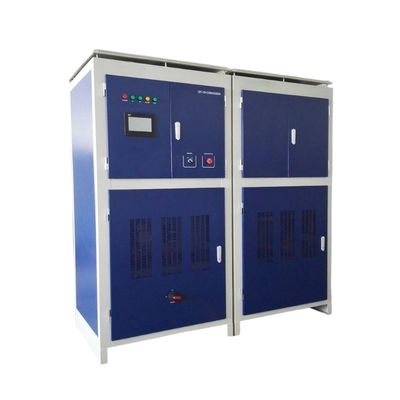

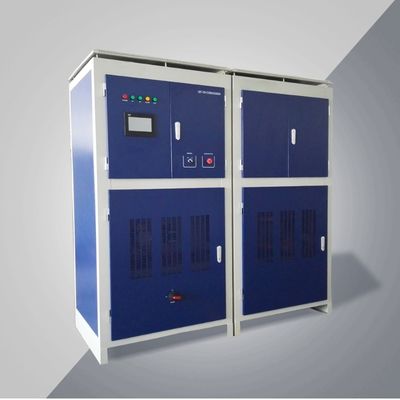

This advanced battery testing equipment is designed for comprehensive evaluation of single and module batteries used in electric vehicles, electric bicycles, and energy storage systems. It performs charging/discharging tests, pulse tests, DCIR measurements, cycle life assessments, and rate capability evaluations.
| Parameter | Specification |
|---|---|
| Output Channels | Customizable quantity |
| Charging Method | Automatic |
| Display Mode | Touch screen or computer display |
| Voltage |
Range: Customizable charging/discharging ranges Precision: ±0.1%FS or ±0.5% Resolution: 16-bit AD |
| Current |
Range: 0-*A (customizable separate ranges for charging/discharging) Precision: ±0.1%FS or ±0.5% Resolution: 16-bit AD |
| Power |
Total Output: Equipment-specific Single Channel: Equipment-specific Stability: ±0.2%FS |
| Time |
Resolution: 0.1 second Accuracy: ±10 seconds/24 hours Stage Setting: 0.1s-1000 hours range Stage Count: 1-200 stages |
| Data Recording |
Time Interval: ≥100ms Voltage Variation: ≥0.1%FS Current Variation: ≥0.1%FS |
| Work Modes |
Constant current/voltage/power charging with multiple cutoff options Constant current/voltage/power/resistance discharging with multiple cutoff options Standby mode with time/voltage cutoff |
| Power Supply | AC380V (-5% to +10%) or AC220V (-5% to +10%), 50Hz ±1Hz |
| Operating Conditions |
Temperature: 0℃ to 40℃ Storage Temp: -20℃ to +70℃ Ventilation: Well-ventilated, non-corrosive environment Cooling: Air-cooled Humidity: ≤85% |
| PC Requirements | Windows 7, Windows 10 or newer |
