18V300AC3000AC Battery Cycle Life Tester with IP56 Protection and 220V/380V Voltage for Module Batteries Testing

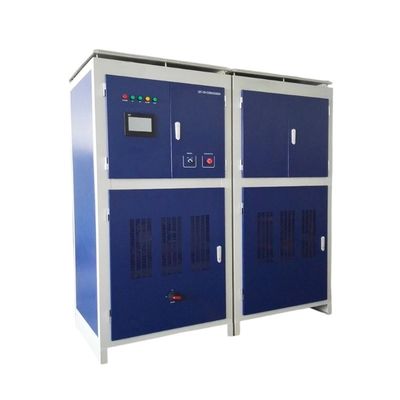

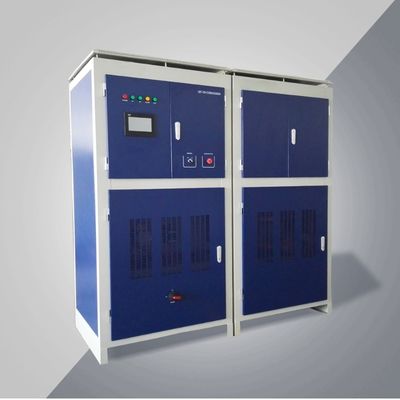

Large Image : 18V300AC3000AC Battery Cycle Life Tester with IP56 Protection and 220V/380V Voltage for Module Batteries Testing

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

18V300AC3000AC Battery Cycle Life Tester with IP56 Protection and 220V/380V Voltage for Module Batteries Testing

Description

Voltage:	220 V, 380 V	Protection Class:	IP56
Storage Temperature:	-20℃ To +70℃	Work Temperature:	0℃ To 40℃
Environmental Humidity:	≤85%	Stability:	±0.2%FS
Voltage Precision:	± 0.1%FS Or ±0.5%	Current Precision:	± 0.1%FS Or ±0.5%
Resolution:	16-bit AD	Time Resolution:	0.1 Second
Timing Accuracy:	±10 Seconds/24 Hours	Stage Time Range:	0.1 Second - 1000 Hours
Stage Setting Range:	1 - 200 Stages	Data Recording Interval:	≥100ms
Cooling Method:	Air-cooled
Highlight:	18V300AC3000AC Battery Cycle Life Tester , IP56 Protection Battery Testing Machine , 220V/380V Voltage Module Batteries Testing Machine

Module Batteries Rate Charging and Discharging Testing Machine 18V300AC3000AC Battery Cycle Life Tester

Product Overview

This advanced battery testing equipment is designed for comprehensive evaluation of single and module batteries used in electric vehicles, electric bicycles, and energy storage systems. It performs charging/discharging tests, pulse tests, DCIR measurements, cycle life assessments, and rate capability evaluations.

Key Features

Multiple working modes: Constant voltage/current/power charging, constant current/power/resistance discharging, resting, and cyclic operation
Customizable working modes available upon request
Advanced safety protections: Reverse connection alarm, overcurrent shutdown, and pause function
Automatic test termination upon detecting battery or equipment abnormalities
Power failure recovery function maintains test continuity
Professional software with Excel export capability for easy data analysis
Built-in calibration function ensures measurement accuracy

Software Interface

Technical Specifications

Parameter	Specification
Output Channels	Customizable quantity
Charging Method	Automatic
Display Mode	Touch screen or computer display
Voltage	Range: Customizable charging/discharging ranges Precision: ±0.1%FS or ±0.5% Resolution: 16-bit AD
Current	Range: 0-A (customizable separate ranges for charging/discharging) Precision:* ±0.1%FS or ±0.5% Resolution: 16-bit AD
Power	Total Output: Equipment-specific Single Channel: Equipment-specific Stability: ±0.2%FS
Time	Resolution: 0.1 second Accuracy: ±10 seconds/24 hours Stage Setting: 0.1s-1000 hours range Stage Count: 1-200 stages
Data Recording	Time Interval: ≥100ms Voltage Variation: ≥0.1%FS Current Variation: ≥0.1%FS
Work Modes	Constant current/voltage/power charging with multiple cutoff options Constant current/voltage/power/resistance discharging with multiple cutoff options Standby mode with time/voltage cutoff
Power Supply	AC380V (-5% to +10%) or AC220V (-5% to +10%), 50Hz ±1Hz
Operating Conditions	Temperature: 0℃ to 40℃ Storage Temp: -20℃ to +70℃ Ventilation: Well-ventilated, non-corrosive environment Cooling: Air-cooled Humidity: ≤85%
PC Requirements	Windows 7, Windows 10 or newer
