ASTM D5397 Compliant Geomembrane Fracture Testing Instrument with Stainless Steel Bath Tank for 20 Samples at Once

प्रमाणन
चीन DONGGUAN LONROY EQUIPMENT CO LTD प्रमाणपत्र
चीन DONGGUAN LONROY EQUIPMENT CO LTD प्रमाणपत्र
मैं अब ऑनलाइन चैट कर रहा हूँ

ASTM D5397 Compliant Geomembrane Fracture Testing Instrument with Stainless Steel Bath Tank for 20 Samples at Once

ASTM D5397 Compliant Geomembrane Fracture Testing Instrument with Stainless Steel Bath Tank for 20 Samples at Once
ASTM D5397 Compliant Geomembrane Fracture Testing Instrument with Stainless Steel Bath Tank for 20 Samples at Once ASTM D5397 Compliant Geomembrane Fracture Testing Instrument with Stainless Steel Bath Tank for 20 Samples at Once ASTM D5397 Compliant Geomembrane Fracture Testing Instrument with Stainless Steel Bath Tank for 20 Samples at Once ASTM D5397 Compliant Geomembrane Fracture Testing Instrument with Stainless Steel Bath Tank for 20 Samples at Once ASTM D5397 Compliant Geomembrane Fracture Testing Instrument with Stainless Steel Bath Tank for 20 Samples at Once ASTM D5397 Compliant Geomembrane Fracture Testing Instrument with Stainless Steel Bath Tank for 20 Samples at Once

बड़ी छवि :  ASTM D5397 Compliant Geomembrane Fracture Testing Instrument with Stainless Steel Bath Tank for 20 Samples at Once

उत्पाद विवरण:
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: Lonroy
प्रमाणन: ISO ASTM CE
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 1
मूल्य: Negotaible
पैकेजिंग विवरण: लकड़ी का पैकेज
प्रसव के समय: 5-8 काम के दिन
भुगतान शर्तें: एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता: 200

ASTM D5397 Compliant Geomembrane Fracture Testing Instrument with Stainless Steel Bath Tank for 20 Samples at Once

वर्णन
वोल्टेज: 220 वी संरक्षण वर्ग: IP56
नमूना क्षमता: 20 नमूने बाथ टैंक सामग्री: स्टेनलेस स्टील
तापमान नियंत्रण: ठोस-राज्य नियंत्रक बाथ -तापमान: 50 ℃
तरल स्तर की सुरक्षा: स्वचालित शटडाउन टाइमर प्रकार: डिजिटल
ड्राइव यूनिट: मोटर वज़न कंटेनर: गतिमान
हीटर स्थान: टैंक के नीचे परिसंचरण तंत्र: पंप करना
नमूना धारक सामग्री: स्टेनलेस स्टील परीक्षण मानक: एएसटीएम डी 5397-93
शक्ति प्रकार: इलेक्ट्रॉनिक
प्रमुखता देना:

ASTM D5397 Compliant Geomembrane Fracture Testing Instrument

,

20 Samples at Once Geomembrane Fracture Testing Instrument

,

Stainless Steel Bath Tank Geosynthetic Membrane Fracturing Tester

ASTM D5397 Geomembrane Compression Fracture Testing Instrument
Geomembrane Pressure Induced Fracture Test Equipment
This precision testing instrument evaluates the compression fracture characteristics of high-density polyethylene geotextile materials under accelerated environmental conditions, fully compliant with ASTM D 5397-93 standards.
Key Features
  • Simultaneously tests 20 samples for efficient evaluation
  • Constructed with durable stainless steel bath tank
  • Precise solid-state temperature controller maintains consistent conditions
  • Integrated circulation pump ensures uniform solution distribution
  • Automatic shutdown activates at low liquid level for safety
  • Bath tank cover minimizes solution evaporation
  • Mobile weight container for precise pressure application
  • Digital timer and micro switch for accurate measurement
  • Motor-driven bath tank height adjustment
Testing Methodology
The instrument applies continuous pressure to dumbbell-shaped geotextile samples through a lever system with lead weights. Samples are immersed in a temperature-controlled surfactant bath (maintained at 50℃) while individual timers record fracturing time for each specimen.
Technical Specifications
Customization Support OEM, ODM, OBM
Place of Origin Guangdong, China
Warranty 1 Year
Brand Name Lonroy
Product Name Geosynthetic Membrane Fracturing Tester
Standard Compliance ASTM D 5397-93
Power Type Electronic

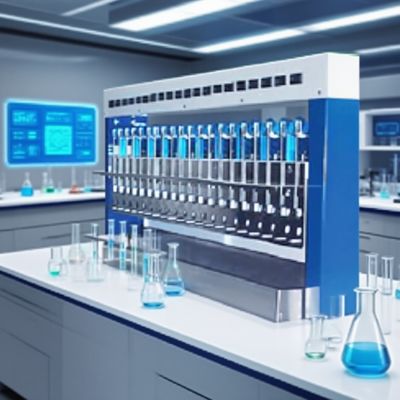

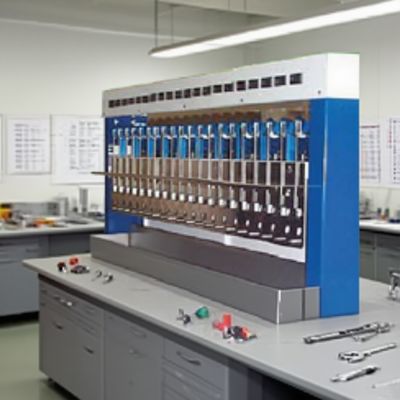

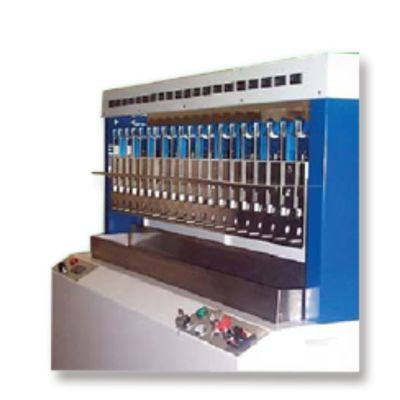

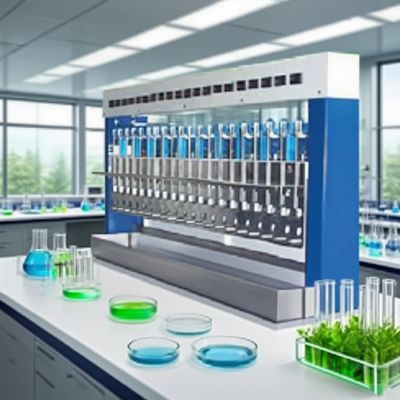

Product Images
Safety Features
The system includes low liquid level protection that automatically shuts down heaters and pumps when solution levels drop below set values. Optional high liquid level protection is available for enhanced safety.
