ASTM D5397 Compliant Geomembrane Fracture Testing Instrument with Stainless Steel Bath Tank for 20 Samples at Once

Large Image : ASTM D5397 Compliant Geomembrane Fracture Testing Instrument with Stainless Steel Bath Tank for 20 Samples at Once

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

ASTM D5397 Compliant Geomembrane Fracture Testing Instrument with Stainless Steel Bath Tank for 20 Samples at Once

Description

Voltage:	220 V	Protection Class:	Ip56
Sample Capacity:	20 Samples	Bath Tank Material:	Stainless Steel
Temperature Control:	Solid-state Controller	Bath Temperature:	50℃
Liquid Level Protection:	Automatic Shutdown	Timer Type:	Digital
Drive Unit:	Motor	Weight Container:	Mobile
Heater Location:	Bottom Of Tank	Circulation System:	Pump
Sample Holder Material:	Stainless Steel	Test Standard:	ASTM D 5397-93
Power Type:	Electronic
Highlight:	ASTM D5397 Compliant Geomembrane Fracture Testing Instrument , 20 Samples at Once Geomembrane Fracture Testing Instrument , Stainless Steel Bath Tank Geosynthetic Membrane Fracturing Tester

ASTM D5397 Geomembrane Compression Fracture Testing Instrument

Geomembrane Pressure Induced Fracture Test Equipment

This precision testing instrument evaluates the compression fracture characteristics of high-density polyethylene geotextile materials under accelerated environmental conditions, fully compliant with ASTM D 5397-93 standards.

Key Features

Simultaneously tests 20 samples for efficient evaluation
Constructed with durable stainless steel bath tank
Precise solid-state temperature controller maintains consistent conditions
Integrated circulation pump ensures uniform solution distribution
Automatic shutdown activates at low liquid level for safety
Bath tank cover minimizes solution evaporation
Mobile weight container for precise pressure application
Digital timer and micro switch for accurate measurement
Motor-driven bath tank height adjustment

Testing Methodology

The instrument applies continuous pressure to dumbbell-shaped geotextile samples through a lever system with lead weights. Samples are immersed in a temperature-controlled surfactant bath (maintained at 50℃) while individual timers record fracturing time for each specimen.

Technical Specifications

Customization Support	OEM, ODM, OBM
Place of Origin	Guangdong, China
Warranty	1 Year
Brand Name	Lonroy
Product Name	Geosynthetic Membrane Fracturing Tester
Standard Compliance	ASTM D 5397-93
Power Type	Electronic

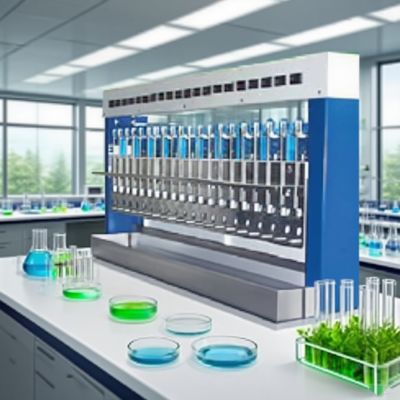

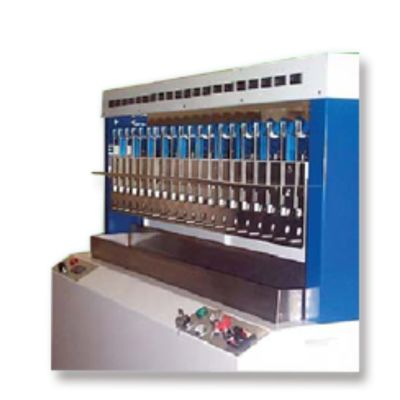

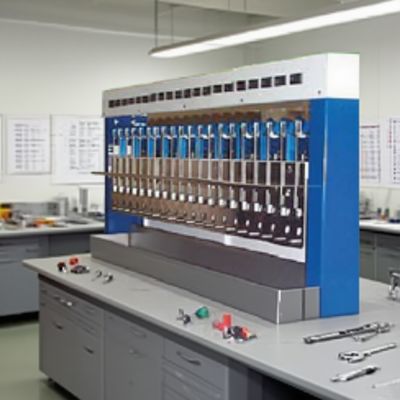

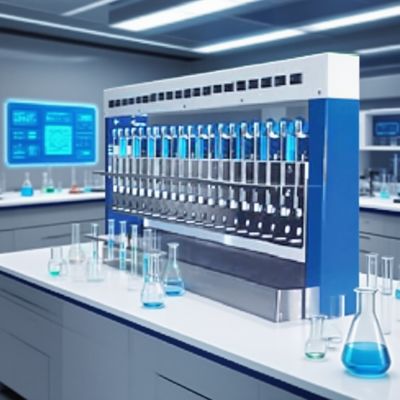

Product Images

Safety Features

The system includes low liquid level protection that automatically shuts down heaters and pumps when solution levels drop below set values. Optional high liquid level protection is available for enhanced safety.
