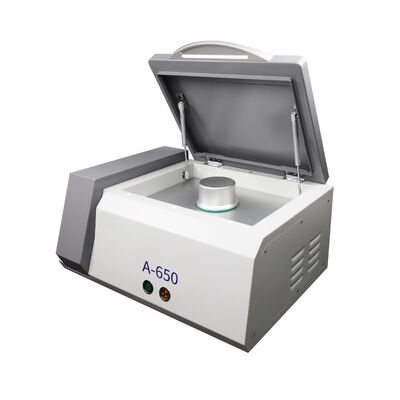

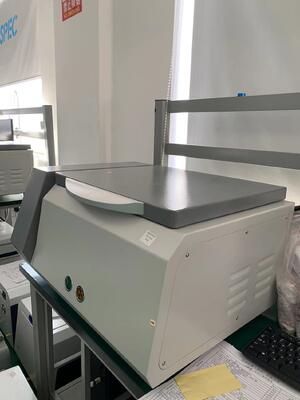

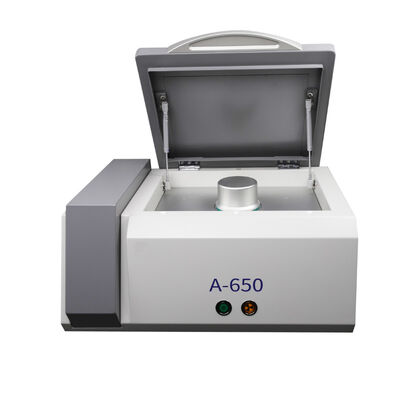

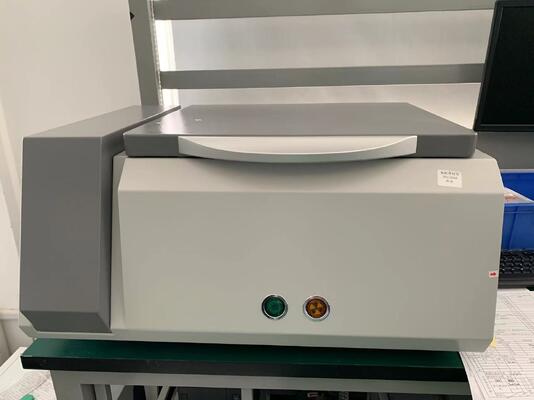

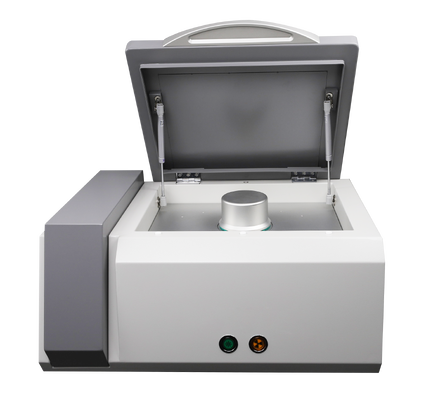

A-650 Vacuum Type Benchtop High Precision Alloy Analyzer X-ray Fluorescence Spectrometer XRF Coal Ash Ore Analyzer

Measure the range of elements

From sodium (Na) to uranium (U)

Measure the concentration range concentration range

ppm—99.99%(Different elements, the analysis scope is different)

Measure object status

Powder, solid, liquid

Elemental analysis ability

Dozens of elements ranging from sodium (Na) to uranium (U) are measured at once

optimum resolution

129eV±5eV

Best analysis accuracy

RSD≤0.1%(National standard sample)

parsing time

Single test time is adjustable

Refrigeration method

Electric refrigeration, no consumables

Large sample cavity size

400mm x 340mm x 80mm

Vacuum sample cavity size

φ100mm×h75mm

Appearance size

700mmx510 mmx336mm

working power supply

AC 220V ±5V,50Hz

work environment

Indoor temperature 15~30℃; relative humidity 80% (no dew condensation)

The weight of the machine

56KG

Analysis efficiency

Fast speed, good accuracy, high efficiency, using the self-developed analysis software can complete the simultaneous and accurate analysis of dozens of elements from 11 sodium (Na) to 92 uranium (U) in 1-120 seconds

Functional advantages

1. Appearance design: beautiful, durable, multiple safety protection mode.

2. Collimation filter system:collimator+multi-combination filter, software automatically switch, to meet various test applications.

3. The self-developed SES signal processing system (digital multi-channel) can effectively improve the peak back ratio and make the measurement more accurate.

4. Multi-dimensional heat dissipation system: optimize the integrated heat dissipation design, improve the heat dissipation performance of the whole machine, and ensure the operation safety of X-ray source

5. Radiation safety system: multiple radiation prevention leakage prevention design, radiation protection level belongs to the highest level of similar products

6. Vacuum system: select the vacuum system, optimize the test environment, improve the analysis accuracy of light elements such as magnesium, aluminum, silicon and phosphorus and sulfur, and greatly expand the analysis capability of A-650 analyzer.

7.  Unique movement temperature monitoring technology,

to ensure the safe and reliable operation of the radiation source, effectively extend its service life, reduce the service cost.

Hardware advantage

Import of the whole set of core parts

1. Detector: Original American Amptek silicon drift SDD probe with minimum resolution as low as 129eV ± 5eV, excellent energy linear and energy resolution, peak back ratio.

2. X-ray tube: maximum power 50W, tube voltage 5-50KV, tube current 0-1000uA; long-life X-ray tube.

3. High voltage power supply: maximum power 50 W, voltage 0-50 KV, current 0-1000uA.8-Hour Stability of 0.05%.

4. Signal processor: using imported signal processor, adapted to high resolution and high counting rate, self-adjusted magnification, maximum channel number: 4096.

Software advantage

The Chinese version of the X-fluorescent analysis software developed by Danaher and our company, the software fusion experience, theoretical alpha coefficient method, linear fitting, quadratic curve, intensity correction, content correction and other analytical methods, comprehensive guarantee Accuracy of test data.

System standard

1. Digital Multichannel Type SDD detector

2. X-ray source

3. high voltage source

4. SNR electronic circuit system

5. Optical road enhancement system

6. 8 Collimation + 5 filter

7. The Digital Multichannel Analyzer

8. pumped vacuum system

9. Brand-name ink jet printer

10. Brand computer

11. X fluorescence full-element analysis software

12. Sample cup, fuse

13. Spectral voltage power supply (optional)

System selection

1. Spectral special grinder (optional)

2. Spectra special melting sample machine (optional)

3. Spectral special Powder machine (optional)

4. Melt sample platinum crucible (optional)

5. Special chip press for spectrometer (optional)

Sample category

Elements category

Sinter / pellet ore

TFe ,Si,Ca,Mg,Al,Mn,Ti,P,S,K,V etc

High furnace slag/ converter slag

TFe ,Si,Ca,Mg,Al,Mn,Ti,P,S,K,V etc

refining slag

Al,Ca,Si,Mg,Fe,Ti etc

Pre-melt slag

Ca,Mg,Al,Si,Fe,P,S etc

calcium aluminate

Si,Al,Fe,Ca,Mg etc

calcium ferrite

Fe,Al,Ca,Si,S,P etc

Manganese slag

Mn,Fe,P,S,Si,Al,Ca etc

Iron concentrate powder / iron ore

TFe ,Si,Ca,Mg,Al,Mn,Ti,P,S,K,V etc

Hematite / magnetite

T Fe,K,Na,S,P,Al,Si,Mg,Ca,Mn,Zn,Cu,Ti etc

lead zinc ore

Pb,Zn,Ag,Cu,Sn,Fe,S,Cd,Mo,As etc

manganese ore

Mn,Si,P,S,Al,Ti,K,Zn,Ca,Mg etc

Titanium ore

Ti,Mn,Fe,Si,P,S,Al,K,Zn,Ca,V,Cu,Mg etc

copper mine

Mn,Fe,S,Cu,Pb,As,Au,Cd,Zn,Ag,Mg etc

chromite

Fe,P,S,Al,Cr,Ca,Mg,Si etc

refractory

High silicon clay Si,Al,Fe,Ca,Mg,K,Na,S,P etc

High aluminum alum soil Al,Fe,Ti,Na,K,Mn,Ca,Mg,Si,P etc

High magnesium magnesium sand Mg,Ca,Si,Al,Fe etc

boule

white fused alumina Al,Na,Si,Ca,Fe  etc

brown alumina Al,Si,Ti,Fe etc

black corundum Al,Si,Ti,Fe etc

pink fused alumina Al,Na,Cr,Fe etc

Zirconia Zr,Si,Al,Na,Fe,Ti,Ca,Mg,K etc

Cement raw material / clinker

Si,Al,Fe,Ca,Mg,K,Na, S,Cl-etc

limestone

S,P,Al,Si,Fe,Ti,Mn,Sr,Ca,Mg etc

dolomite

S,P,Al,Si,K,Na,Fe,Ti,Mn,Sr,Ca,Mg etc

tabular spar

Si,Ca,Fe,Al,Ti,Mg etc

taxoite

Mg,Si,K,Na,Ca,Fe,Ti,Mn,Al,S,P etc

mullite

Al,Si,Fe,Ti,Ca,Mg,K,Na etc

Magnesium aluminum apex

Al,Mg,Ca,Si,Na,Fe etc

cann

Ca,P,S,Si,Al,Fe,Mg,Ti,Mn,K,Na etc

gangue

Si,Al,Fe,Ca,Mg,Ti,P,V etc

quartz sand

Zr,Si,Fe,P,S ,Al,Ti etc

rutile

Ti,S ,P ,Fe,Nb,Ta,Cr,Sn etc

garnet

Ca,Mg,Fe,Mn,Al,Cr etc

pig iron

Si,Mn,P,S,Ti,Cr,V etc

high-manganese pig iron

Fe,Mn,P,S,Si,Cr etc

ferro-silicon alloy

Al,Si,Ca,Na,Mg,P,S,Fe,Cr,Mn,Cu,Ba etc

silicomanganese

Mn,P,S,Si etc

silicozirconium

Si,Ca,Al,Ba,ZR,Mn etc

Silicon aluminum barium calcium

Si,Al,Ba,Ca etc

Silicon barium calcium / silicon calcium / silicon barium

Si,Ba,Ca,Ba ,Fe etc

ferro-nickel

Ni,Mn,Si,Cu,Co,Cr,V,S,P etc

ferrovanadium

V,Mn,Si,P,S etc

chromium iron

Cr,Si,P,S,V,Fe,Mn,Ti etc

ferromanganese

Mn,Si,P,S,Cr,Ni,V,Fe etc

ferrocolumbium

Nb,Al,Si,S,P etc

Smelter lead

Pb,Sb,Sn,Bi,Fe,Si,Ca,S etc

electrolytic manganese

Mn,S,P etc

dross

Sn,Fe,Si,Ca etc

vanadium slag

V,Mn,Cr,Ti,Ca,Si etc

glass

Si,Al,Fe,Ca,Mg,K,Na etc

Fly ash (thermal power plant)

Si,Al,Fe,Ca,Ti,Mg,K,Na,S,Mn etc

Grouting agent (rare earth magnesium silicon alloy)

Mg,RE,Si,Ca,Al etc

inoculant

Si,Ba,Ca,Al etc

vermiculizer

Mg ,Re ,Ca ,Si ,Al etc

covering agent

Ca ,Si,Mg,Al,Fe etc

Pipe die powder

Si,Ca,Al,Ba,ZR,Mn etc

dregs remover

Ca ,Si,Al etc

agglomerated flux

Si,Ti,Ca,Mg ,Al,Mn,S,P etc

brazing powder

Ti,Zr,Ni,Cu,Ag,Zn,Sn,Si,Mn,Ni,Cr,P etc

alumina

Si,Fe,Ca,Mg etc

Industrial silicon

Al,Ca,Fe,Ti,Mn,Ni etc

SCR denitration catalyst

Ca,Na,K,As,W,V etc

Soil heavy metal

Pb,As,Cd,Hg,Cu,Ni,Zn,Cr etc
