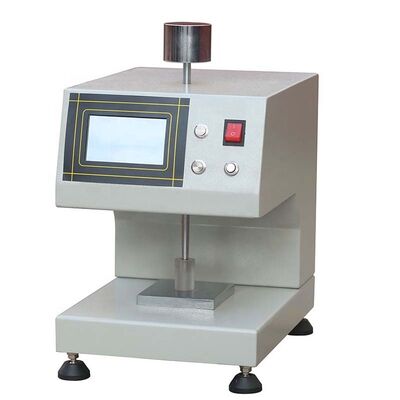

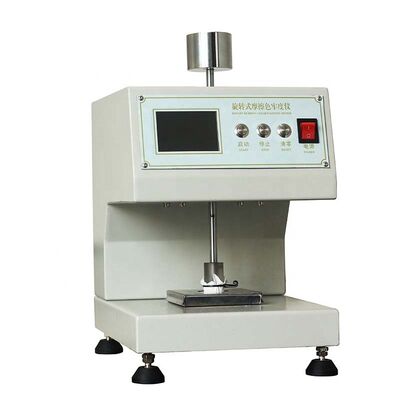

AATCC 116 Electric rotary friction color fastness tester,Texile color fastness with rotary type
Scope of application
It is used to change color fastness of textile, printing, printing and other products after specific trajectory friction.
AATCC 116 Electric rotary friction color fastness tester,Texile color fastness with rotary type
Meet the standard
GB/T 29865-2013 Textiles -- tests for colour fastness to friction -- small area method
AATCC 116 Color fastness to friction rotary vertical tribometer method
ISO 105X16 Textiles, tests for colour fastness - Part X16: Colour fastness to rubbing - Small areas
AATCC 116 Electric rotary friction color fastness tester,Texile color fastness with rotary type
Instrument characteristics
1. Fixed device with standard friction fabric.
2. The sample clip is made of spring steel to ensure fast tightening of the sample and reproduction of the results
3. The MCU control, speed can be set freely.
4. large touch screen display, add three backup shortcut keys, convenient and fast.
5. Free set the number of friction, can be positive, backward count, to the set value automatically stop the alarm.
AATCC 116 Electric rotary friction color fastness tester,Texile color fastness with rotary type
Specification and Parameter
| Diameter of friction head |
16mm |
| provide pressure |
1134g |
| Working mode |
clockwise turn 1.125 turns and counter-clockwise turn |
| counting range |
0-99999 times |
| Power supply |
AC 220V 50Hz 100W |
|
Model Number
|
ETH-
10.20.30.50
|
ETH-
100
|
ETH- 150
|
ETH- 200
|
ETH- 300
|
ETH- 500
|
ETH-
1000
|
ETH-
2000
|
ETH-
3000
|
ETH-
5000
|
|
Maximum testing load
|
10N 20N 30N50N
|
100N
|
150N
|
200N
|
300N
|
500N
|
1000N
|
2000N
|
3000N
|
5000N
|
|
Minimum resolution
|
0.001N
|
0.01N
|
0.1N
|
|
Diameter of the platen
|
34mm
|
48mm
|
108mm
|
|
Maximum free length of measurable spring
|
80mm
|
150mm
|
200mm
|
|
Length of travel of the displacement scale
|
60mm
|
90mm
|
150mm
|
|
Division value of the displacement scale
|
0.01mm
|
|
Indication error
|
±1%
|
|
Power Supply
|
AC 110-220V, 50HZ-60HZ
|
|
Power capability (without printer)
|
13W
|
|
Power capability (with printer)
|
20W
|
|
Working temperature
|
20±10℃
|
|
Temperature of storage and transportation
|
-27℃~+70℃
|
|
Relative temperature
|
15%~80%RH
|
1 Gantry 2 Lower limit adjustment
3 Test Rocker 4 digital ruler
5 Adjusting nut 6 Operating panel 7 Pressure spring test
