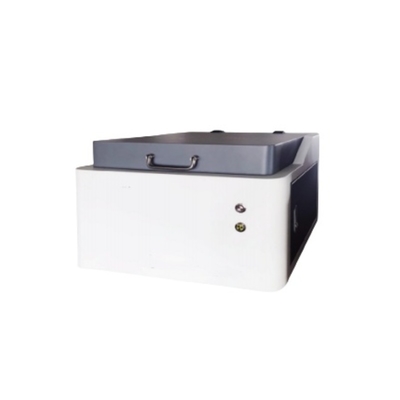

X-ray Fluorescence Metal Coating Thickness Gauge AL-NP-7010 Metal Elements Analyzer
Description
The X-ray fluorescence coating thickness measuring instrument adopts the energy dispersive X-ray fluorescence analysis technology and can simultaneously measure the analysis of multiple elements. According to the user's application requirements, it can be configured to analyze and determine any number of elements ranging from Na to U. In addition, it is equipped with a fully functional testing software and a user-friendly operation interface to meet the needs of metal coating and element content measurement. The humanized design makes the testing work easier to complete. This instrument has two functions: measuring element content and coating thickness detection.
It is widely used in the thickness measurement of metal coatings, the determination of electroplating solutions and coating contents in electroplating, as well as in the industries of hardware, PCB, bathroom, electronic appliances, precious metals, etc.
Features
1.Automatic Filter Conversion System
Filter automatic switching system: 6 types of filters are automatically selected and switched (Filter function: Improves the spectral composition of the excitation source's spectral line, when conducting multi-element analysis, it is used to suppress the strong X-ray fluorescence of high-content components, thereby improving the measurement accuracy of the analyzable elements).
2.Safety radiation protection system
a.The redesigned low-radiation X-ray tube has undergone special treatment (starting from the source)
b.Fully enclosed lead plate double-layer radiation protection design (starting from the design structure)
c.Fully automatic lead plate filter optical shield device
d.The sample cover was accidentally opened, causing the X-ray forced interruption device to activate.
e.Delay test and X-ray warning system
3.Powerful analysis software workstation
a.An all-in-one operation software, easy to use and requiring no professional knowledge.
b.Humanized human-computer interface
c.Various test parameters do not need to be set by operators, with powerful custom report function.
d.Test data is automatically stored and has a historical query function.
e.The most advanced qualitative and quantitative analysis methods.
f.It can simultaneously analyze dozens of elements.
g.Element analysis is fast, and the analysis time can be adjusted from 30 seconds to 900 seconds.
h.Automatically reduce tube voltage and current when not in use for a long time to extend the life of the X-ray tube.
i.Control the temperature of the X-ray tube to protect it and extend its lifespan.
j.Real-time monitoring of the instrument's operating status, facilitating easy maintenance of the instrument.
k.To prevent accidental opening of the sample cover during the test, the software provides an operation warning and simultaneously shuts off the high-voltage power supply.
4.Types of sample analysis
It can directly detect solids, liquids and powders, without the need for complex sample preparation processes. The samples can be analyzed directly and non-destructively.
5.Professional coating thickness measurement
It can analyze single coatings, multiple coatings as well as alloy coatings.
Analysis methods with multiple coatings.
Analysis thickness: Generally 0.05 - 50 microns (thickness varies for different elements).
Technical Parameters
|
FAST SDD Detector
|
- The resolution of the detector is one of the key indicators for evaluating the performance of energy dispersive X-ray fluorescence spectrometers.
- Resolution: < 122eV (Lower resolution indicates higher sensitivity)
- Count rate: > 1,000,000CPS
- Beryllium window thickness: 0.005mm
- Detection power: < 1.2W
|
|
X-ray Tube
|
- Target material: Rhodium (Rh) or Tungsten (W)
- Tube voltage: 5-50KV
- Tube current: 1-1000uA
|
|
Multi-channel Pulse Height Analyzer (commonly referred to as spectrometer energy calibration)
|
- Number of channels: 2048 channels
|
|
Power Supply Controller
|
- System power control: +5 VDC at 250 mA (1.2 W)
- Constant cooling control: 400 VDC
|
|
Low-power Small Side-window X-ray Generator (commonly called X-ray tube)
|
- The X-ray tube, specially treated with internal lead embedding, is fully shielded, with only the side-window X-ray exit area remaining.
- Tank insulating oil is used for high-voltage insulation and cooling.
- Standard window with 0.005-inch beryllium window.
- Rated power consumption: 50 watts; rated voltage: 50 kV.
- Designed service life: > 15,000 hours
|
|
High-voltage Generator
|
- Input: 85～265Vac, 47～63Hz, with power factor correction.
- Models of 1kV～5kV meet UL85～250Vac input standards.
- Voltage regulation rate: 0.01% of the output voltage from no load to full load.
- Current regulation rate: 0.01% of the output current from 0 to rated voltage.
- Ripple: 0.25% peak-to-peak of the output voltage.
- Temperature coefficient: 0.01%/℃ for voltage or current setting.
- Stability: 0.05%/8 hours after half an hour of preheating
|
