Building Materials Combustion Decomposition Smoke Density Tester Burning Pyrolysis Smoke Obscuration Testing Instrument

Building Materials Combustion Decomposition Smoke Density Tester Burning Pyrolysis Smoke Obscuration Testing Instrument
Building Materials Combustion Decomposition Smoke Density Tester Burning Pyrolysis Smoke Obscuration Testing Instrument Building Materials Combustion Decomposition Smoke Density Tester Burning Pyrolysis Smoke Obscuration Testing Instrument Building Materials Combustion Decomposition Smoke Density Tester Burning Pyrolysis Smoke Obscuration Testing Instrument Building Materials Combustion Decomposition Smoke Density Tester Burning Pyrolysis Smoke Obscuration Testing Instrument Building Materials Combustion Decomposition Smoke Density Tester Burning Pyrolysis Smoke Obscuration Testing Instrument Building Materials Combustion Decomposition Smoke Density Tester Burning Pyrolysis Smoke Obscuration Testing Instrument

Large Image :  Building Materials Combustion Decomposition Smoke Density Tester Burning Pyrolysis Smoke Obscuration Testing Instrument

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1,000
Contact Now

Building Materials Combustion Decomposition Smoke Density Tester Burning Pyrolysis Smoke Obscuration Testing Instrument

Description
Instrument Type: Combustion Decomposition Smoke Density Tester Color: /
Customized Support: OEM, ODM, OBM Material: /
Power: / Warranty: 1 Year
Highlight:

smoke density tester for building materials

,

combustion decomposition flammability tester

,

burning pyrolysis smoke obscuration instrument

Products Description
Building Materials Combustion Decomposition Smoke Density Tester Burning Pyrolysis Smoke Obscuration Testing Instrument

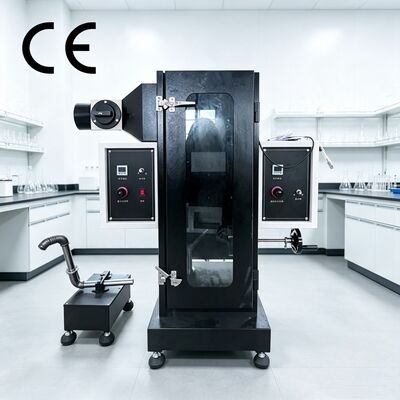

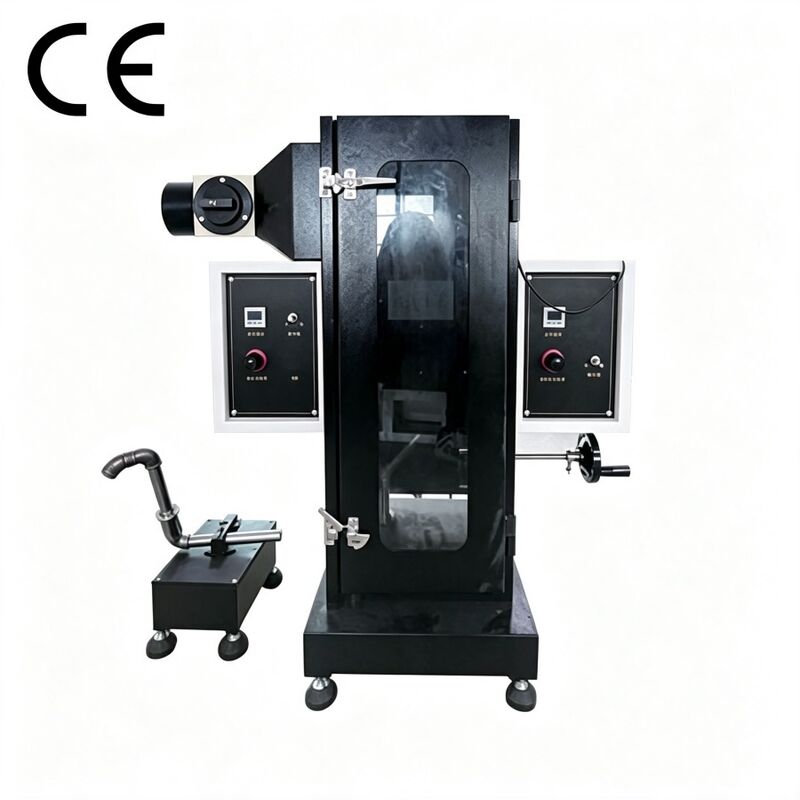

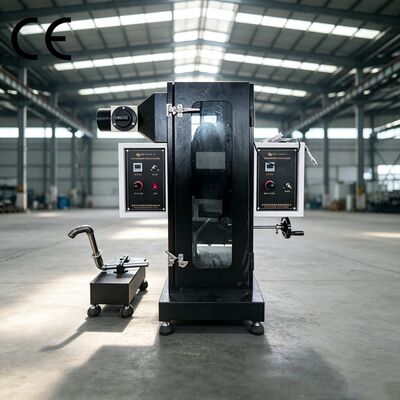

Introduction The LR-ER103 Smoke Density Tester is designed to measure the static smoke generation of building materials and their products during combustion or decomposition; it is also suitable for testing other solid materials.
Building Materials Combustion Decomposition Smoke Density Tester Burning Pyrolysis Smoke Obscuration Testing Instrument
Scope of Application The LR-ER103 Smoke Density Tester is suitable for measuring the static smoke generation of building materials and their products during combustion or decomposition, as well as for testing other solid materials.
Building Materials Combustion Decomposition Smoke Density Tester Burning Pyrolysis Smoke Obscuration Testing Instrument
Standards Compliance Complies with the testing requirements of GB/T 8627, "Test Method for Smoke Density of Burning or Decomposing Building Materials."
Building Materials Combustion Decomposition Smoke Density Tester Burning Pyrolysis Smoke Obscuration Testing Instrument
Structural Features 1. The machine consists of two main parts: the combustion chamber and the computer control system; 2. Combustion chamber dimensions: L300 × W300 × H790 (mm); 3. The combustion chamber features a high-quality baked enamel finish and is formed using CNC machining, resulting in an aesthetically pleasing design with rounded corners; 4. Internal components are made of high-quality stainless steel, offering excellent rust resistance;
Building Materials Combustion Decomposition Smoke Density Tester Burning Pyrolysis Smoke Obscuration Testing Instrument
Equipment Structure 1.The machine consists of two parts: the combustion chamber and the computer control system; 2. Combustion chamber dimensions: L300 x W300 x H790 (mm); 3. The combustion chamber features a high-quality baked enamel finish and is formed using CNC machining, with an aesthetically pleasing rounded design; 4. Internal components are made of high-quality stainless steel, offering excellent rust resistance;
Building Materials Combustion Decomposition Smoke Density Tester Burning Pyrolysis Smoke Obscuration Testing Instrument
Operating Conditions 1. Level floor; good ventilation; free from flammable, explosive, or corrosive gases and dust. 2. No strong electromagnetic radiation sources nearby. 3. Adequate maintenance space left around the equipment. 4. Test conditions: (23 ± 2)°C, humidity (50 ± 5)% (the purchaser is responsible for providing a laboratory that meets these requirements). 5. Power supply: AC 220V/50Hz. 6. Allowable voltage fluctuation range: 220V ± 10%. 7. Allowable frequency fluctuation range: 50Hz ± 1%. 8. The user is required to install an air circuit breaker or power switch of appropriate capacity at the installation site, and this switch must be dedicated exclusively to this equipment.

Building Materials Combustion Decomposition Smoke Density Tester Burning Pyrolysis Smoke Obscuration Testing Instrument
Building Materials Combustion Decomposition Smoke Density Tester Burning Pyrolysis Smoke Obscuration Testing Instrument
Building Materials Combustion Decomposition Smoke Density Tester Burning Pyrolysis Smoke Obscuration Testing Instrument
Building Materials Combustion Decomposition Smoke Density Tester Burning Pyrolysis Smoke Obscuration Testing Instrument
Building Materials Combustion Decomposition Smoke Density Tester Burning Pyrolysis Smoke Obscuration Testing Instrument
Specification
Main Technical Specifications
Item
Specification
Gas Source
95% propane gas or gas of equivalent purity (supplied by the customer)
Burner
Bunsen burner; length 260mm, nozzle diameter 0.13mm, positioned at a 45° angle to the smoke chamber
Photoelectric System
Light source is a 15W bulb operating at 6V
Exhaust System
Equipped with a powerful exhaust fan to vent exhaust gases outdoors after testing
Smoke Density Measurement Range
0–100%
Smoke Density Measurement Accuracy
±3%
Receiver
Silicon photocell; 0% light transmission indicates no light passing through, while 100% indicates unobstructed light transmission
Focal Length (after adjustment)
60–65mm
Main Burner Operating Pressure
276 kPa (adjustable)
Auxiliary Burner Pressure
138 kPa (adjustable)
Machine Features
Automatic timing, manual ignition (manual igniter included), automatic smoke exhaust, and automatic light flux calibration
Computer Control Function
Includes light transmission measurement software; capable of generating curve reports; data is automatically saved
Our Advantages
Building Materials Combustion Decomposition Smoke Density Tester Burning Pyrolysis Smoke Obscuration Testing Instrument
