ISO Compact Educational Laboratory Machining Center Mini Teaching Version Processing Device Small Lab Processing Center Tester

Large Image : ISO Compact Educational Laboratory Machining Center Mini Teaching Version Processing Device Small Lab Processing Center Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LOUROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ISO Compact Educational Laboratory Machining Center Mini Teaching Version Processing Device Small Lab Processing Center Tester

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	±1%	Customized Support:	OEM, ODM, OBM, Software Reengineering
Power:	100 W	Protection Class:	IP55
Voltage:	220 V	Warranty:	1 Year
Highlight:	ISO compact educational machining center , mini teaching lab processing device , small laboratory processing center tester

ISO Compact Educational Laboratory Machining Center Mini Teaching Version Processing Device Small Lab Processing Center Tester

Product Introduction

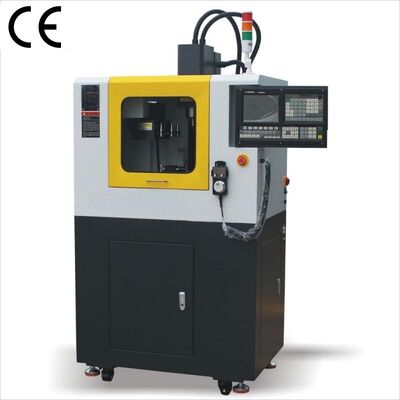

1. The VMC200B is a desktop machining center operating on 220V power; it features a compact footprint and lightweight design while offering the full functionality of a standard machine tool.

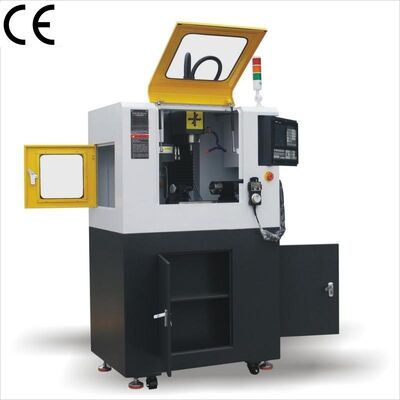

2. It utilizes a fully enclosed structure made of transparent acrylic and sheet metal and is CE certified. Equipped with a safety door interlock, it ensures operational safety while allowing for clear observation. Key components include high-precision ground linear guides (H-grade), a cast-iron body, and high-precision ground ball screws. A centralized lubrication system for the X, Y, and Z axes guarantees machining accuracy. Despite occupying only 0.5 square meters, it boasts powerful actual machining capabilities.

3. It is equipped with an industrial-grade 980MC CNC system and a 6-station umbrella-type automatic tool changer (ATC). It includes an automatic tool setter and supports the optional installation of a fourth-axis CNC indexing head for 4-axis simultaneous machining. A mobile base with casters is available as an option, which includes a work piece cooling circulation system.

4. Programming uses ISO-standard G-code (supporting M-codes and S-codes) and is compatible with FANUC and Mitsubishi G-code formats. It supports graphical programming and integrates with various CAD/CAM software packages (such as Master CAM, UG, Solid Works, Fusion360, Hyper mill, and Power Mill).

5. Primary machinable materials include steel, iron, copper, aluminum alloys, PVC plastic, and acrylic.

6. It is primarily used for precision machining of small parts in corporate R&D departments, universities, and maker/innovation laboratories.

ISO Compact Educational Laboratory Machining Center Mini Teaching Version Processing Device Small Lab Processing Center Tester

Technical Specifications

Item	Specifications
Main Performance Features	Fullyenclosed highspeed rotating structure with organicglass protective cover; Adopting highgrade linear guide rails, castiron machinebase structure, highprecision pretensioned ball screws. Equipped with 980MC industrial CNC system, supports standard Gcode & Mcode programming, compatible with FANUC, Siemens Gcodes. Works with multiple CAD/CAM software: Master CAM, UG, Solid works, Fusion360, Hyper mill, Power mill, etc.
Accuracy	Repeatpositioning accuracy: 0.01 mm System resolution: 0.001 mm
X/Y/Zaxis Travel	Xaxis (Cross): 230 mm Yaxis (Longitudinal): 130 mm Zaxis (Vertical): 220 mm
Aaxis (Optional Accessory)	Rotary (Aaxis): 360°Aaxis rotating speed: 020 rpm Aaxis clamping outer diameter: 160 mmAaxis wormgear reduction ratio: 100:1Tailstock travel: 50 mm
Working Air Pressure	0.6 MPa
Spindle Speed	10024000 rpm
Spindle Taper	ER20
Tool Magazine	Semienclosed 6position tool magazine
Worktable Size	470 × 130 mm
Max. Clamping Drill Shank Diameter	13 mm
Max. Clamping Milling Cutter Shank Diameter	13 mm
Distance from Spindle Nose to Worktable	330 mm
Distance from Spindle Center to Column Guide Rail	180 mm
Tslot Size / Quantity	12 mm / 3 slots
Automatic Toolsetting Function	Supported, equipped with automatic tool setter
X/Y/Zaxis Guide Rail	Industrialgrade Hgrade preloaded linear guide rail
Lubrication System	Centralized multicircuit tubular lubrication
Work piece Cooling	Air cooling or water cooling
Electronic Hand wheel	4axis 3speed electronic hand wheel
CNC System	980MC Industrial CNC System
Spindle Power	2.2 kW
Total Machine Power	2.8 kW
Power Supply	AC220V / 50Hz
Net Weight / Gross Weight	180 kg / 230 kg
Overall Dimensions	950 × 680 × 1000 mm
Packing Dimensions	1000 × 750 × 1200 mm
Standard Accessories	1 set automatic tool setter, 1 set spindle water chiller, 1 set ER20 collet, 1 set Tslot bolts, 1 set hexkey wrenches, 1 doubleended spanner, 1 oiler, 2 pcs ISO20 tool holders, machinetool hardware manual, CNC programming manual, CNC system operation manual
