Main Functions

1. This machine is suitable for testing materials and products across various industries—including textiles, rubber, plastics, synthetic leather, adhesive tapes, adhesives, plastic films, composite materials, electronics, and metals. It performs tests such as tension, compression, bending, shear, peeling (90° and 180°), and tearing to evaluate product quality.

2.This is a compact, user-friendly tensile testing machine designed for benchtop operation. It utilizes an electronic control system and a variable-frequency motor; a mechanical transmission reduces speed to drive a T-screw, moving the load cell up and down to execute tensile or compression tests. Force values are output by the sensor to the display, and test displacement is shown in real-time.

3.It can store results for 10 test reference points, automatically calculate averages, and capture maximum force values as well as the force at the moment of break. The unit includes a thermal printer for automatic test result output (optional).

4. With its simple and convenient operation, this machine is ideal for quality control on production lines. This series is primarily designed for testing non-metallic and metallic materials with loads under 2000N.

Main Features

Sleek, professional appearance. We prioritize product aesthetics, developing models that rival international counterparts; the exterior features aluminum profiles and an electrostatic powder-coated finish.

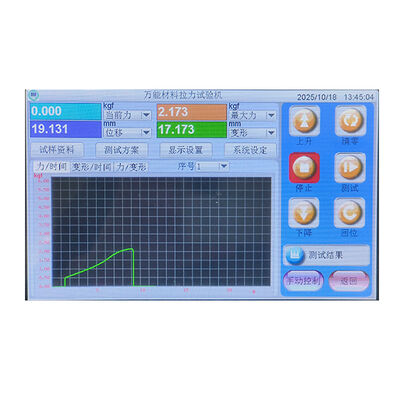

Digital LCD force display distinguishes between tensile and compressive forces; the interface is clear and easy to read.

Three selectable measurement units (N, kgf, lbf) with automatic conversion capabilities.

Backlit LCD screen allows for use in low-light environments.

Single-test capability allows for reading peak values for both tension and compression; manual zeroing is available.

Includes travel limit switches and automatic shutdown upon overload.

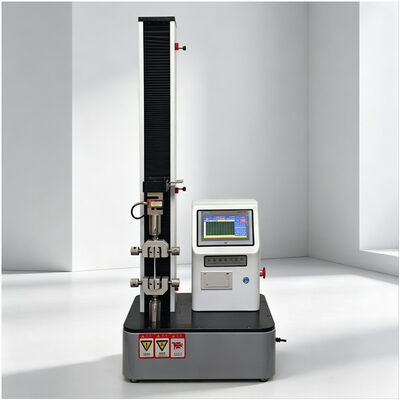

Compact, elegant single-column benchtop design allows for comfortable, ergonomic seated operation. III. Standards Met: GB/T 16491-1996 (Testing Machine Standard)

Application Industries

Widely used in sectors such as wire and cable, hardware, electronics and electrical appliances, packaging and printing, medical devices, automotive parts, textiles and leather, apparel and footwear, rubber and plastic products, as well as in universities, research institutes, commodity inspection and arbitration agencies, and technical supervision departments. It serves as essential equipment for quality control and physical property testing.

Touch Screen High Accuracy Tensile Tester Multi-Function Tensile Machine Tensile Strength Tester Digital Control Tensile Meter

Technical Parameters

Key equipment functions

1. Single-test mode with manual 10-point statistics; automatic calculation of average and break values;

2. Automatic unit switching (e.g., kgf, lbf, N);

3. Free data point selection function;

4. Multi-function calibration capability;

5. Automatic printing function;

6. 24-bit A/D data acquisition with a resolution of 1/200,000;

7. Selectable decimal precision (0 to 4 decimal places);

8. Power-on password protection to prevent unauthorized operation;

9.Adjustable breakpoint ratio (0–99%); users can set appropriate stop-at-break parameters based on material characteristics;

10. Configurable overload protection to effectively prevent machine overload;

Construction materials

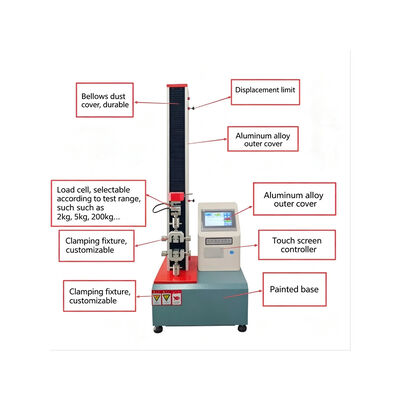

 Aesthetic design featuring an aluminum alloy column housing and a baked-enamel finish base;

 Utilizes a high-precision, zero-backlash ball screw (TBI, Taiwan) and a high-quality Taiwanese accordion-style dust cover for durability and a sleek appearance

Equipment Installation Requirements

1. Level flooring; good ventilation; free from strong vibrations, strong electromagnetic fields, and flammable, explosive, or corrosive substances and dust in the immediate vicinity;

2. Adequate space provided around the equipment for operation and maintenance.

3. Ambient temperature: 27°C ± 3°C; Relative humidity: ≤85%; Atmospheric pressure: 86 kPa – 106 kPa.

4.Sufficient clearance around the equipment to facilitate maintenance.

Single Column Touch Screen Tensile Tester Digital Display Single Column Tensile Machine Touch Screen Column Tensile Tester
