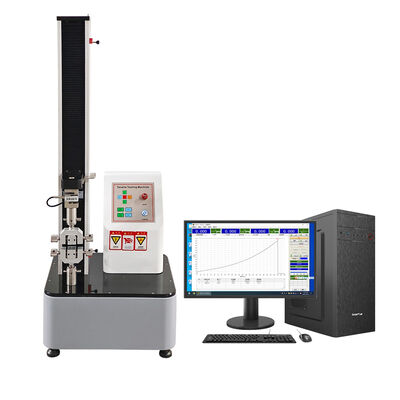

Single-Column Servo Force Tester Closed-Loop Plastic Elongation Force Analyzer Multi-Function Column Tensile Testing Machine
Description
Type:
Testing Machine
Accuracy Class:
High Accuracy
Accuracy:
/
Customized Support:
OEM, ODM, OBM
Power:
/
Protection Class:
/
Voltage:
220 V, Other
Warranty:
1 Year
Highlight:
Single-Column Servo Force Tester
,
Closed-Loop Plastic Elongation Analyzer
,
Multi-Function Tensile Testing Machine
Single-Column Servo Force Tester Auto Servo Tensile Test Machine Single Column Strength Test Device Column Servo Tensile Machine
Main Functions
1.This machine is suitable for testing and analyzing the mechanical properties—such as tensile strength, compression, tearing, and peeling (both 90° and 180°)—of materials including rubber, tires, hoses, conveyor belts, shoe soles, plastics, films, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipes, composite materials, waterproofing materials, fibers, textiles, wires and cables, paper, metal foils, tapes, filaments, springs, wood, and pharmaceutical packaging materials.
2.This machine is a new type of material testing machine that integrates electronic technology with mechanical transmission, offering high precision and sensitivity in the measurement and control of load, deformation, and displacement. It features a single-space structure (with the testing area located in the lower section) and is primarily designed for testing metallic and non-metallic materials with loads below 5 kN. It supports stress, strain, and displacement control modes, allowing for the determination of parameters such as maximum force, tensile strength, flexural strength, compressive strength, elastic modulus, elongation at break, and yield strength.
Control Software Introduction
Software Operating System Language
Simplified Chinese / English
Force Units
N, kN, kgf, lbf; Length Unitsmm, cm, in (freely switchable)
Automatic Zeroing
The measurement system automatically resets to zero upon receiving the command to start the test;
Display Mode
Data and curves are displayed dynamically throughout the testing process;
Result Retrieval
Test results can be saved and retrieved at will, allowing for re-analysis of data and curves;
Result Comparison
Multiple test characteristic curves can be overlaid using different colors, retrieved, magnified, and displayed to facilitate comparative analysis of a batch of samples;
Emergency Stop
Equipped with an emergency stop switch to cut off power to the entire machine in an emergency;
Control Modes
1.Computer software settings for speed, load-based break/rupture detection, operation time, and other control parameters;
2.Automatic detection of material breakage, crushing, etc., with automatic stop and configurable automatic return functions;
Curve Types
Load-Displacement, Load-Time, Displacement-Time. Stress-strain, strain-time, and stress-time.The axes of the curves can be configured as desired.
Available test data
Maximum and minimum force, breaking force, upper and lower yield strength, tensile strength, compressive strength, elastic modulus, elongation, and maximum/minimum/average values for peel intervals, among others. Features multiple protection mechanisms, including overload, overcurrent, overvoltage, undervoltage, overspeed, and travel limit protection. Results are exported in the "Crystal Report" format, which is the prevailing standard in China.
Single-Column Servo Force Tester Auto Servo Tensile Test Machine Single Column Strength Test Device Column Servo Tensile Machine
Technical Specifications
Capacity Options
2, 5, 10, 20, 50, 100, 200, or 500 kg (select one)
Accuracy Class
Class 0.5
Effective Force Measurement Range
0.4% – 100%
Force Measurement Accuracy
Within ±0.5% of indicated value
Data Sampling Frequency
200 readings/minute
Force Resolution
1/500,000 of maximum load (no range switching; resolution remains constant throughout the full range)
Load Cell Configuration
Tension/Compression load cell (rated for maximum load)
Deformation Measurement Range
0.2% – 100% FS
Effective Test Width
150 mm
Effective Tensile Space
800 mm (excluding grips; custom sizes available)
Test Speed Range
0.01 – 500 mm/min
Displacement Measurement Accuracy
Within ±0.5% of indicated value
Safety Device
Electronic limit protection
Crosshead Return Function
Manual or automatic options; returns to initial position after test completion
Overload Protection
Automatic protection triggered at 10% above maximum load
Main Unit Dimensions
500 × 400 × 1500 mm
Motor
220V ±10%, 0.4 kW Japanese servo motor
Drive Mechanism
High-precision ball screw
Main Unit Weight
Approx. 50 kg
Equipment Configuration List
Main Testing Machine Unit
1 set
High-precision load cell (US-made)
1 unit

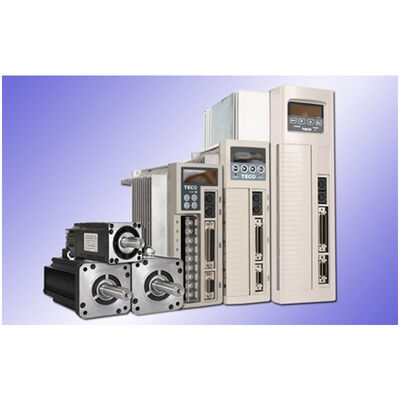

Servo motor (Xingpu)
1 set
Reduction system (Taiwan Hefu)
1 set
Precision ball screw (Taiwan TBI)
1 set
Synchronous belt pulley (Japan Mitsubishi)
1 set
Protective housing (Jianmei Aluminum)
1 set
Professional testing software (Windows-based)
1 set
Dedicated testing computer
1 unit

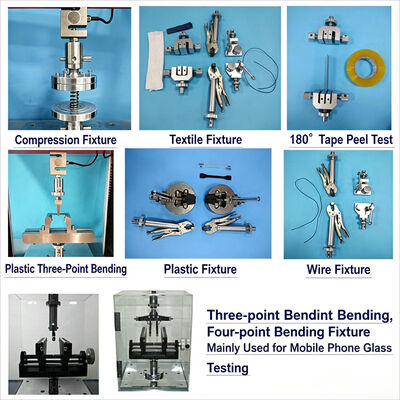

Tensile or compression grips
1 set
Standard tool kit (includes tools for installation, maintenance, and operation)
1 set
Technical documentation (user manual, warranty card, certificate of conformity)
1 set
Configuration Reference Information
Utilizes the latest control board technology, offering superior sampling rates.
Single-column Servo-driven Tensile Tester Servo Tensile Tester Column Servo Tensile Machine Single Column Force Test Device
Key Functional Features
1.The main controller employs a state-of-the-art 32-bit ARM processor (21st-century technology), delivering processing speeds comparable to general-purpose Pentium-class computers. Compared to traditional 8-bit microcontroller-based systems, it offers significantly improved overall performance, faster computation, and higher control precision.
2.The data acquisition core utilizes the latest ultra-high-precision 24-bit A/D converter from the US, achieving sampling rates of up to 2,000 samples per second. This allows for the capture of instantaneous force fluctuations, providing a resolution of up to 500,000 divisions across the entire range without the need for gear switching. Proprietary 6-point calibration technology further enhances accuracy, ensuring force measurement precision that exceeds the national Class 0.5 standard (the highest grade).
3.Displacement encoder counting employs 4x frequency multiplication technology, quadrupling displacement resolution to a maximum of 0.0005 mm.
4.Supports both pulse and voltage output control modes, enabling smooth, stepless speed regulation for any servo, variable-frequency, or DC motor equipped with pulse or voltage control interfaces. Additionally, discrete signal outputs (up, down, stop) can directly drive external relays or solenoid valves, facilitating the control of DC motors or pneumatic/hydraulic power units.
5.Advanced triple closed-loop control technology (covering speed, displacement, and force) enables precise control of arbitrary waveforms.
6.Extensive interface expansion capabilities: up to 4 channels of 24-bit analog input, 3 channels of 16-bit analog output, 3 channels of pulse output, 3 channels of A/B phase optical encoder input, 9 channels of discrete input, 8 channels of discrete output, 1 USB port, 1 RS232 port, 1 RS485 port, 4 types of LCD interfaces, 1 parallel mini-printer interface, 1 serial mini-printer interface, and 1 8×4 matrix keypad interface.
